Installation Guide
300 A Current Sensor Kit for
D1h/D3h/D5h/D6h Drives
VLT® FC Series FC 102, FC 103, FC 202, FC 302
1 Overview
1.1 Description
The 300 A current sensor kit contains all components required to upgrade the current sensor assembly in D1h/D3h/D5h/D6h drives.
The kit is compatible with the power ratings shown in
7–10 of the type code (T/C).
Table 1: Applicable Power Range for 300 A Current Sensor Kit
Product group and series
VLT® HVAC Drive FC 102
VLT® Refrigeration Drive FC 103
VLT® AQUA Drive FC 202
VLT® AutomationDrive FC 302
1.2 Kit Number
Table 2: Number for 300 A Current Sensor Kit
Kit number
Kit description
176F6516
300 A Current Sensor Conversion Kit for D1h/D3h/D5h/D6h

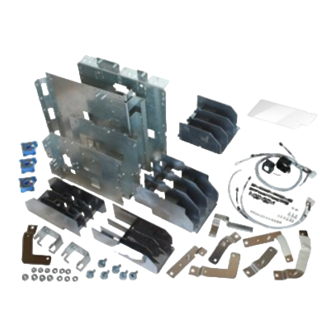

1.3 Items Supplied
Table 3
provides a list of items included in the 300 A current sensor kit. Refer also to
Table 3: Items Supplied in 300 A Current Sensor Kit
Item
EMC shield
M8 flange nut
M5x16 countersunk screw
Terminal plate
R/S/T terminal label
M10x30 machine screw
M10 hex nut
Mains terminal block
M5x12 screw
M5x16 thread-forming screw
U/V/W terminal label
Motor terminal block
Danfoss A/S © 2022.11
Table
1. The power rating of the drive is listed on the nameplate as characters
Voltage rating
(T4) 380–480 V
(T7) 525–690 V
(T5) 380–500 V
(T7) 525–690 V
Power rating [kW (hp)]
110–160 (150–250)
75–160 (75–200)
90–132 (125–200)
55–132 (60–150)
Illustration
4.
Quantity
1
3
3
3
1
6
6
1
11
3
1
1
AN275538690239en-000101 / 130R0721 | 1

Advertisement

loading

Summary of Contents for Danfoss 176F6516

  • Page 1 M8 flange nut M5x16 countersunk screw Terminal plate R/S/T terminal label M10x30 machine screw M10 hex nut Mains terminal block M5x12 screw M5x16 thread-forming screw U/V/W terminal label Motor terminal block Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 1...
  • Page 2 Hex busbar Nomex® tube 300 A current sensor M4x10 thread-forming screw Wire harness (current sensor cables) M5x11 thread-forming screw Nomex® is a registered trademark of E.I. du Pont de Nemours and Company. 2 | Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721...
  • Page 3 AC input busbars with optional RFI filter and AC fuses. Procedure Remove the air baffle by removing 4 screws (T25) and 2 lower screws (T40). If the brake option is present, there are no lower screws. Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 3...
  • Page 4 Remove 3 M8 nuts (13 mm) at the bottom of the AC input busbars, 1 per phase. Remove 1 M8 nut (13 mm) from the center busbar. Remove the busbars from the drive. Illustration 1: AC Input Busbars (with No Options) 4 | Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721...
  • Page 5 Remove 4 M5x11 screws (T20) connecting the RFI filter to the side channels of the drive. Remove the RFI filter and unplug the RFI cable from MK100 on the RFI card. Illustration 2: AC Input Busbars with Optional AC Fuses and RFI Filter Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 5...
  • Page 6 Remove 1 thread-forming screw (T25) from the middle of the busbar. Unfasten 1 screw (T30) at the current sensor end of the busbar. The V screw is shorter than the U and W screws. Remove the W motor busbar: 6 | Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721...
  • Page 7 Remove the power terminal mounting plate with the old current sensors attached. Discard the power terminal mounting plate and current sensors. Retain the fasteners for reuse during kit installation. Illustration 3: Power Terminal Mounting Plate Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 7...
  • Page 8 Remove the 3 IGBT output busbars: Remove 3 thread-forming screws (T25), 1 from the top of each IGBT output busbar. Remove 6 screws (T30), 2 from the top of each busbar. Discard the IGBT output busbars. 8 | Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721...
  • Page 9 300 A Current Sensor Kit for D1h/D3h/D5h/D6h Drives Installation Guide Reassembly 3 Reassembly 3.1 Kit Overview Example Illustration 4: Exploded View and Parts List of 300 A Current Sensor Kit Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 9...
  • Page 10 Reconnect the ribbon cable connecting the control card and power card, and position the control card mounting plate in the drive. Secure 4 screws (T20) in the corners of the control card mounting plate. Reconnect the customer control wiring. 10 | Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721...
  • Page 11 To install the power terminal mounting plate, use the following steps. Procedure Position the power terminal mounting plate in the drive. Fasten 4 thread-cutting screws (T20), 2 screws in each side of the plate. Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 11...
  • Page 12 Place the mains terminal block in position by sliding it under the 2 metal clips on the power terminal mounting plate. Secure 2 screws (T25) in the lower end of the mains terminal block. If removed previously, fasten 1 screw (T25) in the EMC shield below the terminal block. 12 | Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721...
  • Page 13 Secure the 3 AC fuses by fastening 6 M8 nuts (13 mm), 1 at each end of the fuses. Position the air baffle in the drive, and fasten with 4 screws (T25). Danfoss A/S © 2022.11 AN275538690239en-000101 / 130R0721 | 13...
