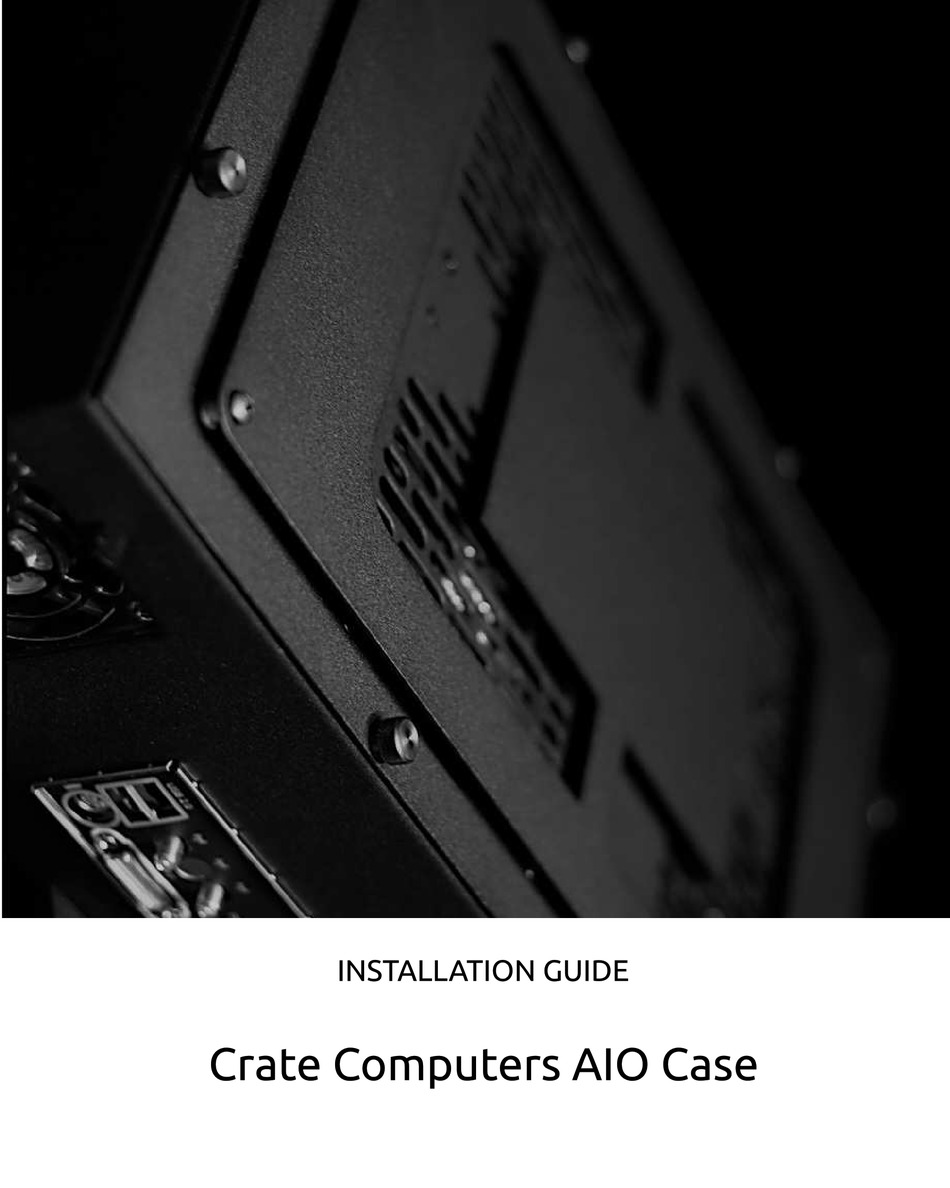

- Page 1 INSTALLATION GUIDE Crate Computers AIO Case...
-
Page 3: Table Of Contents
Table of Contents Case Specifications................2 Case features..................4 Accessory kit...................6 Connecting the Stand................8 Installing the motherboard..............10 Installing the PSU..................12 Installing the PCI-E card...............14 Installing 2.5" drive(s)................16 Powering the case fans.................18 Wiring the power switch...............20 Additional configuration ideas............22 New build checklist................23... -
Page 4: Case Specifications
Case specifications... - Page 5 Maximum GPU Length: 266mm Maximum CPU Cooler Height: 40mm Maximum PSU Length:230 mm Maximum Fan Depth: 25mm...
-
Page 6: Case Features
Case features Protective plate Fan grill Dual SATA drive enclosure Motherboard tray... - Page 7 Crate Computer enclosure PWM Fan header Crate Computer stand...
- Page 8 Vesa to Crate Computer Mount 2x Cable Management Kits Power Switch and Cable...
-
Page 9: Accessory Kit
Accessory kit 6 x #6-32 Screws 16 x M3 Screws 5 x M3 Screws 4 x Crate Computer VESA Mount Screws 6 x M3 Thumb Screws 2 x PCI Covers... -
Page 10: Connecting The Stand
Connecting the Stand Slide the stand into the slot on the bottom of the enclosure. Once you have inserted the stand inside the enclosure use the pan-headed screws to attach the stand to the enclosure. *Be sure to note the holes needed when you are ready to affix the motherboard tray to the enclosure, this will need to be done while the monitor is removed! - Page 11 VESA mount on the front of the enclosure next, using the four large screws included. Now you can simply attach the bracket to your display and hang it to your Crate Computer. Do not forget to place the set-screw back and to make sure you...
-
Page 12: Installing The Motherboard
Installing the motherboard Line the motherboard up to the motherboard tray. Once lined up screw the board down on the four mounts noted here. Bottom... - Page 13 Once the board has been mounted connect the PCI extender to the board.
-
Page 14: Installing The Psu
Installing the Power supply 1: Place the power supply in the enclosure. 2: Slide the power supply down and tighten the screws on the bottom of the enclosure... -
Page 16: Installing The Pci-E Card
Be sure to install the motherboard tray before you install the video card. The video card riser card is lined up to use the top two (or more) I/O slots. - Page 17 Installing the video card...
-
Page 18: Installing 2.5" Drive(S)
Installing the 2.5" drives On the motherboard tray you will see the drive tray. This tray can support two 2.5" drives, simply pull the locking latch on the end to pull the tab out. Once the tab is extended you can push it into the enclosure to release the drive. -
Page 20: Powering The Case Fans
Wiring the case fans With the fan grill removed install your four 120mm fans. You can utilize the included fan hub if you wish. -
Page 22: Wiring The Power Switch
Wiring the power switch... - Page 23 LED Power (-) Green Power Switch (n01) Red Power Switch (c1) Black LED Power (+) White...
-
Page 24: Additional Configuration Ideas
Possible configurations Micro-atx motherboard 160x80mm radiator 2 80mm fans... -
Page 25: New Build Checklist
New Build Checklist Mini-Itx motherboard Processor SSD/HDD/M.2 drive(s) 2U power supply Video card 4 120mm fans Operating system... - Page 28 Lake Forest • California • 92630 • USA | cratecomputers.com © 2017 Crate Computers, LLC. All rights reserved. Crate Computers, the sails logo, and Crate Computers logo are registered trademarks of Crate Computers in the United States. All other trademarks are the property of their respective...
