Page 1: Instruction Manual

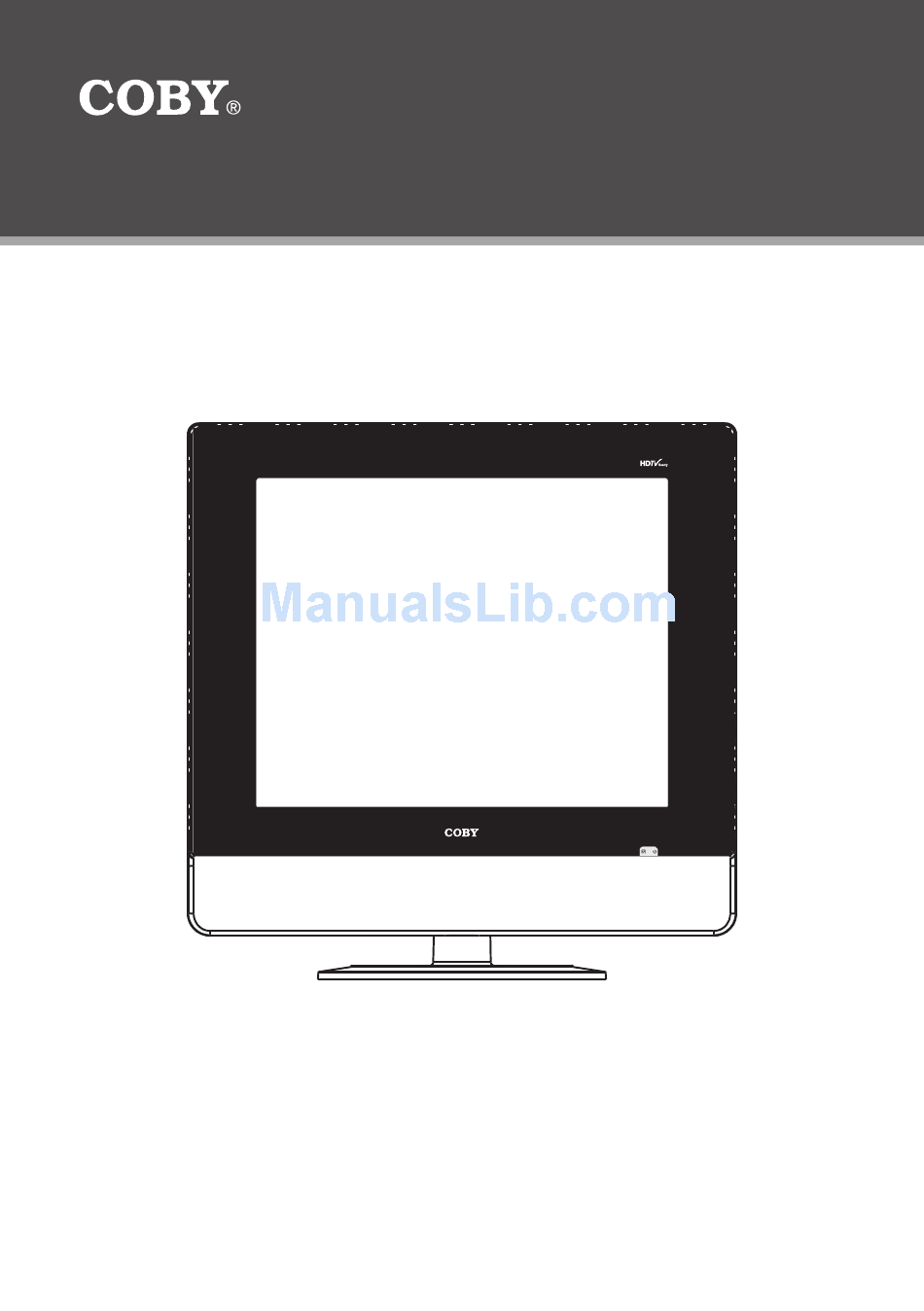

TF-DVD1971 19” TFT LCD FLATSCREEN TELEVISION with SLOT-LOADING DVD PLAYER Instruction Manual Please read this manual carefully before operation. -
Page 2: Precautions
For information regarding disposal and recycling in the state of California, please visit the eRecycle website at: www.eRecycle.org. PRECAUTIONS For Customer Use: Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference. Model No. Serial No. TF-DVD1971... -
Page 3: Safety.instructions
SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future refer- ence. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. - Page 4 SAFETY INSTRUCTIONS Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, ground- ing of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the...
- Page 5 SAFETY INSTRUCTIONS Replacement Parts: When replacement parts are required, be sure that your service techni- cian has used replacement parts specified by the manufacturer or have the same charac- teristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
-
Page 6: Table Of Contents
PRECAUTIONS..2 SAFETY.INSTRUCTIONS..3 TABLE.OF.CONTENTS..6 FEATURES..8 ABOUT.OPTICAL.DISCS..9 Disc Requirements ...9 Disc Care and Maintenance ...9 Handling a Disc ...9 Cleaning a Disc ...9 PACKAGE.CONTENTS... 10 LOCATION.OF.CONTROLS...11 Front View ... 11 Right Panel View ...11 Rear Panel View ...12 Remote Control ...13... - Page 7 TABLE OF CONTENTS DVD.FUNCTION... 23 Basic Operation ...23 Play/Pause/Stop ...23 Previous/Next (Skip) ...23 Reverse/Forward (Scan) ...23 Slow ...23 Zoom ...24 Repeat Mode ...24 A-B Repeat Mode ...24 GOTO (Search) ...24 Program ...25 DVD Program Mode...25 Sound ...25 DVD Functions ...26 Menu ...26 Audio ...26 Subtitle ...26...
-
Page 8: Features
Your TF-DVD1971 integrates a DVD player with and LCD display and an NTSC TV Tuner. Multiple Modes • • • VIDEO (Composite) • S-VIDEO • Y Cb/Pb Cr/Pr (Component Video: Accepts 480i, 480p, 576i, 576p, 720i, 720p, and 1080i signals) High-Resolution •... -
Page 9: About.optical.discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type DVD-Video Discs Audio Compact Discs (CDs) JPEG CDs This unit can play back CD-R and CD-RW discs that contain audio titles or JPEG picture files. Discs not listed above are not supported by this unit (e.g., PC CD-ROM, CD-Extra, CD-G, CD-I, etc.) Disc Care and Maintenance... -
Page 10: Package.contents
PACKAGE CONTENTS Please make sure the following items are included with your LCD TV/monitor. If any items are missing, contact your local dealer. TF-DVD1971 Remote Control AV Cable AC Power Cord... -
Page 11: Location.of.controls
LOCATION OF CONTROLS Front View TFT LCD Display Stereo Speakers Remote Sensor Power Indicator Right Panel View DVD/CD Disc Slot Open/Close Button Play/Pause Button Stop Button Volume Up Button Volume Down Button Channel Up Button Channel Down Button LCD Setup Button Mode/Enter Button Power Button... -
Page 12: Rear Panel View
LOCATION OF CONTROLS Rear Panel View AC 110-240V Power In Jack Component Video Input Jacks S-Video Input Jack Composite Video Input Jack RCA Stereo Audio Input Jacks Coaxial Digital Audio Output Jack (DVD) Coaxial TV Antenna Input Jack... -
Page 13: Remote Control
LOCATION OF CONTROLS Remote Control Power Turn the TV On/Off Open Eject the DVD/CD Disc Title Access the DVD Title Menu Angle Select a DVD camera angle (if available) Subtitle Select a DVD subtitle track (if available) Audio Select a DVD audio track (if available) Menu Access the DVD Root Menu Mode... -
Page 14: Getting.started
Cable Connections Do not connect the power until the first 3 connections have been made. Connect TV RF sources to the coaxial TV antenna jack. TV RF sources may include: Over- the-Air receiving antennas or cable lines. You can use a 75 ohm coaxial cable to connect an outdoor antenna. -
Page 15: Coaxial Digital Connection
GETTING STARTED Coaxial Digital Connection Your player can output 5.1-channel surround sound audio through the Coaxial Digital Audio Out jack. You will need a Dolby Pro Logic Surround amplifier and an coaxial adapter cable to use this feature. To Coaxial Digital Audio Out Remote Control •... -
Page 16: Tv.function
Use the TV function to watch television broadcasts. Basic Operation Prepare the antenna and power connections (see the Getting Started section for details). Press POWER to turn the TV on. Press MODE to set the TV to “TV” mode. You should see the antenna signal on-screen. Press CH+/CH- to change the channel. -
Page 17: Picture Setup
Picture Setup Item Picture Mode Brightness Contrast Color Tint Sharpness Sound Setup Item Bass Treble Balance TV FUNCTION Description Set the Picture Mode preset (Normal, User, Bright, Soft) Set the brightness of the display screen. Set the contrast of the display screen. Set the color of the display screen. -
Page 18: Channel Setup
Channel Setup Item Auto Searching Source Channel Skip Fine Tuning AFC Off Display Setup Item Language Transparency Factory Reset Captions TV FUNCTION Description Select to search and store all available broadcast channels. Select antenna system (Air/Cable) Select On/Off to skip unwanted channels Select to fine-tune a channel Select AFC On/Off Description... -
Page 19: Parental Control Setup
Parental Control Setup The Parental Control menu is password-protected. When the Parental Control menu is selected: Press OK Use the Numeric keypad to enter a 4-digit code (default password is: 1111) and press then press OK. If the password is correct, the menu below will appear. Item Parental Lock Clear All... -
Page 20: Tv Rating
TV Rating TV broadcasts include a signal that classifies the con- tents of the program. When the TV Rating control is set, TV broadcasts that have been classified with a higher rat- ing will be blocked. • None: no restrictions (lowest rating) •... -
Page 21: Av.function
Use the AV Function modes to enjoy programs from external video input sources. Basic Operation Prepare the AV Input and power connections (see the Getting Started section for details). Press POWER to turn the TV on. Press MODE to set the TV to the mode that corresponds with the Video Input jack that is in use [i.e., Video (Composite), S-Video, or Y-Cb/Pb-Cr/Pr (Component Video)]. -
Page 22: Image Position (Y-Cb/Pb-Cr/Pr And Dvd Mode Only)
Image Position (Y-Cb/Pb-Cr/Pr and DVD Mode Only) Item Image Position Sound (VIDEO or S-VIDEO Mode Only) Please refer to the TV FUNCTION > LCD Setup section for more Sound, Picture, and Dis- play option details. AV FUNCTION Description Adjust the horizontal and vertical position of the image from +10 to -10... -
Page 23: Dvd.function
DVD FUNCTION Use the DVD function to play DVD, CD, and JPEG discs with the integrated DVD player. Basic Operation Prepare the connections (see the Getting Started section for details). Press POWER to turn the TV on. Press MODE to set the TV to “DVD” mode. You should see the DVD signal on-screen. Load a disc into the player. -
Page 24: Zoom
Zoom Press ZOOM to change the magnification level of the picture. • During DVD playback, each successive press of ZOOM will change the level of magnification to: Zoom 2x, Zoom 3x, Zoom 4x, Zoom 1/2x, Zoom 1/3x, Zoom 1/4x, Normal. Repeat Mode Press REPEAT to change the repeat mode of the player. -
Page 25: Program
DVD FUNCTION Program Enter Program mode to a custom sequence of up to 16 tracks to be played. DVD Program Mode Press PROGRAM to display the Program screen. Use the Navigation keypad to select (highlight) an entry field. For DVD discs: use the Numeric keypad to input the desired Title (T) or Chapter (C) in •... -
Page 26: Dvd Functions
DVD Functions Menu DVD discs usually contain several titles and chapters. • Press MENU to access the root (top-level) menu • Use the Navigation Keypad to select the desired title/chapter and then press OK to confirm. • Press MENU during DVD playback to return to the DVD’s start menu. Audio Press AUDIO to select an audio language track for multi-language DVD discs. -
Page 27: Picture Rotation
DVD FUNCTION Picture Rotation Use the Navigation keypad to rotate a picture while it is displayed. There are four kinds of rota- tional modes: • UP: Inversion (Reflect Horizontal) • DOWN: Enantiomorphism (Reflect Vertical) • LEFT: Rotate Left • RIGHT: Rotate Right Zoom Press ZOOM to magnify a picture while it is displayed. -
Page 28: Language
Language Item OSD Lang Sets the language of the player’s on-screen display. Menu Lang Sets the default menu language of loaded DVDs. Audio Lang Sets the default language audio track of loaded DVDs. Subtitle Lang Sets the default subtitle track of loaded DVDs. Audio Item SPDIF/OFF, SPDIF/RAW, SPDIF/PCM... -
Page 29: Troubleshooting
TROUBLESHOOTING If you have a problem with this TV, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support 56-65 Rust Street Maspeth, NY 11378... - Page 30 The unit has malfunctioned. • Unplug the TV and let it rest for 30 minutes. Plug it back in, and the restore function should reset the TV. TROUBLESHOOTING...
-
Page 31: Specifications
SPECIFICATIONS Display Type Display Resolution Display Pixel Pitch Display Contrast Display Brightness TV System TV Tuning system Power Supply Power Consumption Video Input Audio Input Audio Output Operating Temperature Unit Dimensions Weight Specifications and manual are subject to change without prior notice. 19”... - Page 32 COBY Electronics Corp. 56-65.Rust.Street. Maspeth,.NY.11378 www.cobyusa.com. www.ecoby.com...
