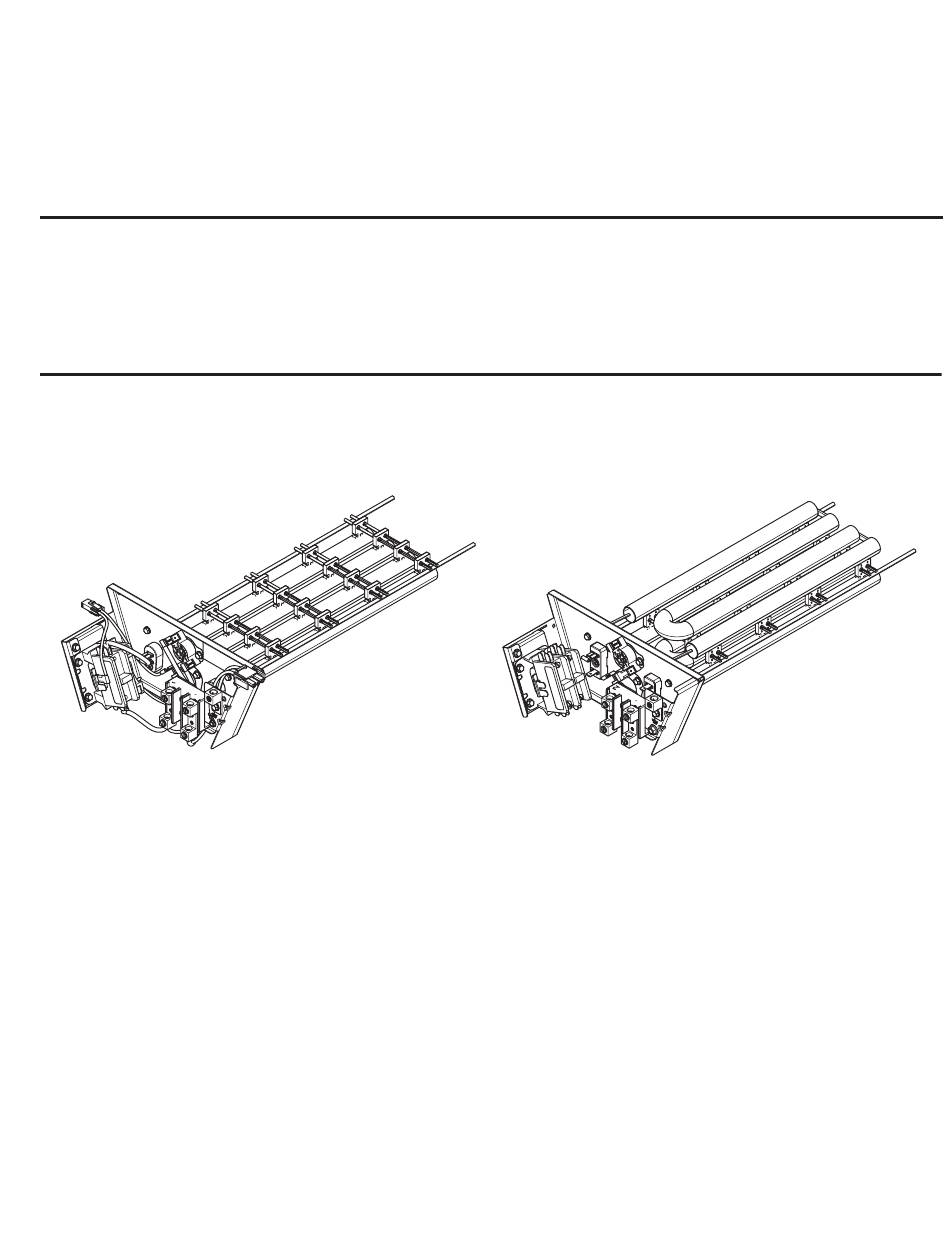

INSTALLER'S
GUIDE
ALL phases of this installation must comply with NATIONAL,
STATE AND LOCAL CODES
Models:
BAYECAA05LG1B
BAYECAA08LG1B
BAYECAA10LG1B
IMPORTANT - This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.
BAYECAA05LG1B
Table of Contents
........................................................................................................ 2
..................................................................................................... 3
................................................................................................................... 4
................................................................................................................................... 9
........................................................................................................................... 11

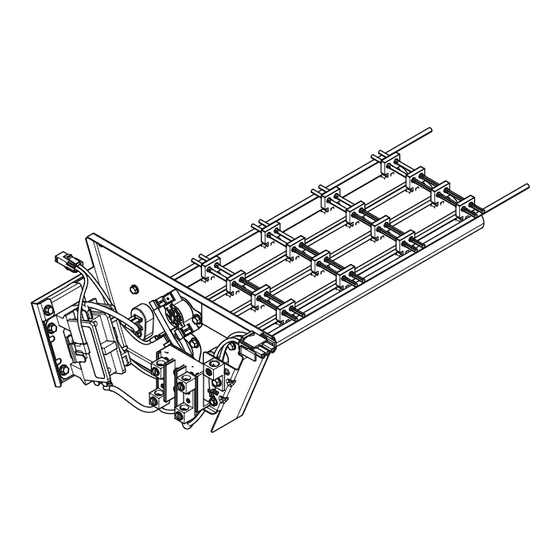

Supplementary
Electric Heaters
for Hyperion
Series GAF2 Air Handler Installations
BAYECAA08LG1B
BAYECAA10LG1B
.......................................................................................... 3
............................................................................................... 6
..............................................................................................10
18-GJ48D1-3A-EN
and ForeFront
TM
TM
Advertisement
Related Manuals for Trane BAYECAA05LG1B
Summary of Contents for Trane BAYECAA05LG1B
-
Page 1: Table Of Contents
INSTALLER'S 18-GJ48D1-3A-EN GUIDE ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES Supplementary Models: BAYECAA05LG1B BAYECAA08LG1B Electric Heaters BAYECAA10LG1B for Hyperion and ForeFront Series GAF2 Air Handler Installations IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work. -
Page 2: Section 1. Safety Information
INSTALLER'S GUIDE Section 1. Safety Information WARNING SAFETY HAZARD! This information is intended for use by individuals possessing adequate back- grounds of electrical and mechanical experience. Any attempt to repair a central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it as- sume any liability in connection with its use. -
Page 3: Section 2. General Information
INSTALLER'S GUIDE Section 2. General Information This electric heater accessory is designed to provide power directly to the air handler from the accessory heater's power supply, eliminating the need for addi- tional circuits. The power and control wiring each use a single wire harness to connect the heater and the air handler. -
Page 4: Section 4. Install Heater
INSTALLER'S GUIDE Section 4. Install Heater STEP 1 - Remove the four screws holding the Coil Compartment Panel and remove the panel. Set panel and screws aside. STEP 2 - Remove the two screws holding the Heater Compartment Panel and remove the panel. Set panel and screws aside. - Page 5 INSTALLER'S GUIDE STEP 4 - Remove the three screws holding the Heater Blank Off Plate and remove the plate. The screws must be retained for later use. The Blank Off Plate may be discarded. STEP 5 - Insert heater assembly into heater compart- ment.
-
Page 6: Section 5. Electrical Connections
INSTALLER'S GUIDE Section 5. Electrical Connections STEP 1 - Route High Voltage wiring to unit. Conduit Entry Point STEP 2 - The conduit entry point is located on the top of the unit when in the Upflow configuration. 1. Remove plug from the entry point, if present. STEP 3 - Route conduit (if used) to the entry point and connect. - Page 7 INSTALLER'S GUIDE STEP 5 - Connect high voltage wiring High Voltage Connect L1, L2, and Ground to the lugs on the terminal Terminal Block block on the heater as illustrated. Note: Minimum terminal screw torque is 35 in-lbs. Ground Ground GREEN BLACK STEP 6 - Connect the mating low voltage...
- Page 8 INSTALLER'S GUIDE STEP 7 - Place Wiring Diagram. Remove the plug from the back of the Heater Panel. Attach the wiring diagram, included in the documenta- tion packet, to the back of the heater compartment panel. STEP 8 - Follow Section 4, Steps 1-3 in reverse to replace Line Set Panel, Heater Panel, and Coil Panel.
-
Page 9: Section 6. Tables
BAYEC -- HEATER DATA 240 VOLT 208 VOLT Number of Heater Model No. Capacity Capacity Heater Amps Heater Amps Circuits per Circuit per Circuit BTUH BTUH BAYECAA05LG1B 4.80 16400 3.60 12300 17.3 BAYECAA08LG1B 7.68 26200 5.76 19700 27.7 BAYECAA10LG1B 9.60 32800 7.20... -
Page 10: Section 7. Sequence Of Operation
INSTALLER'S GUIDE Section 7. Sequence of Operation 7.1 Sequence of Operation GAF2 Sequence of Operation See unit, electric heat, and field wiring diagrams Cooling OD for additional information. 1. R-Y contacts close on the comfort control sending 24VAC to the OD unit. Continuous Fan 2. -
Page 11: Section 8. Warranty
INSTALLER'S GUIDE Section 8. Warranty Page 11... - Page 12 About Trane and American Standard Heating and Air Conditioning Trane and American Standard create comfortable, energy efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
