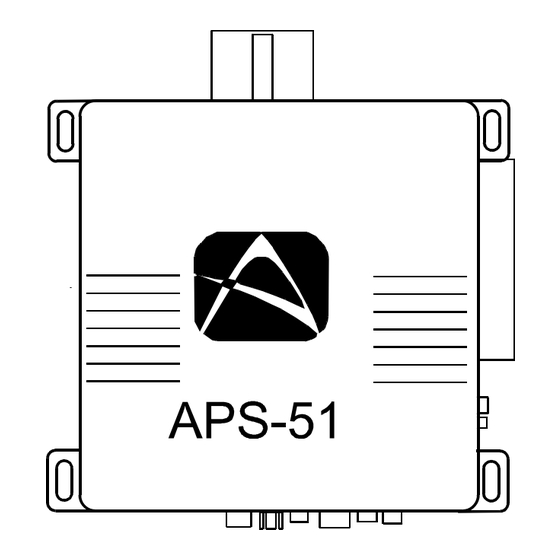

Summary of Contents for Audiovox Prestige Platinum APS-51
- Page 1 128-8980 1 of 20...
- Page 2 To program these selectable features; Action System Response Turn ignition on No response Press and release the valet switch 3 times 1 Chirp - LED 1 flash Within 3 seconds, turn ignition Off Then On Short chirp, then long chirp This Action Accesses Feature Bank 2 Alarm Selectable Features First Press and release the valet switch 1 time...
- Page 3 128-8980 3 of 20...
- Page 4 Action Action Action System Response Turn ignition on No response Press and release the valet switch 3 times 1 Chirp - LED 1 flash Within 3 seconds, turn ignition Off, On, Off, On Short chirp, then 2 long chirps This Action Accesses Feature Bank 3 Remote Start Selectable Features First Press the valet switch one time...
-
Page 5: Installation Of The Major Components
This Remote Start/Keyless Entry System is designed for use with Automatic Transmission Vehicles Only! The unit provides wait to start input for glow plug pre-heat which will be used for all diesel applications. If this wire is not connected, then the unit will remain in the Gasoline mode setting, which will crank the car when the RF signal is received with no delay. -
Page 6: Wiring The 6 Pin Main Power Harness
I M P O R T A N T ! DO NOT PLUG THE SIX PIN MAIN POWER HARNESS OR THE MULTI PIN INPUT / OUTPUT HARNESS INTO THE CONTROL MODULE UNTIL ALL CONNECTIONS TO THE VEHICLE HAVE BEEN MADE. AFTER SELECTING YOUR TARGET WIRES AS DEFINED BELOW, DISCONNECT THE NEGATIVE BATTERY CABLE FROM THE VEHICLE BAT- TERY PRIOR TO MAKING ANY CONNECTIONS. - Page 7 BLUE WIRE: Ignition 1 Output Connect this wire to the ignition 1 wire from the ignition switch. This wire will show +12 volts when the ignition key is turned to the to the "ON" or "RUN" and the "START" or CRANK" positions and will have 0 volts when the key is turned to the "OFF"...
- Page 8 WIRING CONNECTIONS: 12 Pin Input / Output Harness Black Wire: Chassis Ground Source Connect the Black wire to a known vehicle ground source or to a solid clean metal part of the chassis. Be certain to remove any paint or grease and secure this wire with a self-tapping screw and ring terminal. GRAY WIRE: Negative Inhibit Input 1 Connect the GRAY wire to the previously mounted hood pin switch provided.
- Page 9 Brake Switch Positive Shutdown Detail YELLOW w/ BLACK Tracer Wire: + 12 Volt Alarm By - Pass Output Note: You must disconnect the ignition input of the alarm from any other wire that it is presently connected to in the vehicle. This wire provides a + 12 Volt output when the ignition key is turned to the “ON”...
- Page 10 5. Connect the previously selected resistor from terminal #87 to the second (#2) wire (as shown). Note: The above information and following diagram is for the GM VATS system only. For GM PASS LOCK System you will require the Audiovox AS-PASS II Module. General Motors VATS By-Pass Diagram Green/Orange Wire: Tach Sensor Input This wire will continually monitor the engine tach rate while the unit is under power of the Remote Start module.
-
Page 11: Wiring The 4 Pin Auxiliary Output Harness
Tachometer Input Wiring Detail Green/Yellow Wire: Diesel Wait To Start Input The Green/Yellow wire of the 2 pin connector will connect to a diesel vehicles glow plug wire. When the unit receives a start command, this wire must go to + 12 then to ground to allow the crank sequence to begin. When ignition #1 is activated by the remote start unit, the glow plug circuit gets energized, (+ 12 volts), when the glow plug circuit of the vehicle drops the + 12 volts, which effectively grounds the wait to start input, then 500mS later the starter will engage. - Page 12 These applications require the use of additional components which may include relays, fixed resistors, or for conve- nience, the AS 9159a Door Lock Interface. Refer to the AUDIOVOX Door Lock Wiring Supplement and or the Audiovox fax back service for information on your particular vehicle for properly connecting to these types of circuits.
- Page 13 3. Connect the Yellow wire to a +12 volt ignition 1 source. This wire will have +12 volts with the ignition in the on and start position and have 0 volts with the ignition in the off position. 4. Connect the Green wire to the tach input of the Audiovox remote start unit. 128-8980...
-
Page 14: Hood Pin Safety Shut Down
3. Raise the hood and confirm that the remote start unit shuts down. If the unit fails this test, recheck your pin switch connection to the Gray/Black wire of the Audiovox Remote Start Unit. W A R N I N G ! ! DO NOT RELEASE THIS VEHICLE TO THE CONSUMER UNTIL YOU CONFIRM THE OPERATION OF THE HOOD PIN SAFETY SHUT DOWN FEATURE. -
Page 15: Key In Sensor Circuits
Although not preferred, the vehicle Key In Sensor may be reconfigured to allow a margin of safety and will prevent the vehicle with a Mechanical Neutral Start Switch from starting in gear. AUDIOVOX ADVISES THAT YOU MAINTAIN THE FACTORY CIRCUIT WHENEVER POSSIBLE. The following two circuits may be used only if the above circuit is not available. - Page 16 E. Connect the cathode (striped) side of a 4002 series diode to this same wire, and connect the (non striped) side to the negative shut down safety wire (Gray / Black) of the Audiovox Remote Start Unit. F. Connect terminal #86 of the relay to a fused +12 volt constant battery source.
-
Page 17: Completing The Installation
COMPLETING THE INSTALLATION: After you have confirmed the operation of the Audiovox Remote Start unit and tested all the safety features of the system: 1. Mount the control module up and behind the dash securing it in place with cable ties or screws. Be certain that the chosen mounting location will not inhibit any of the controls of the vehicle. - Page 18 128-8980 18 of 20...
- Page 19 For technical support go to www.prestigecarsecurity.com or call 1 800 225 6074 128-8980 19 of 20...
- Page 20 © 2011 Audiovox Electronics Corp., Hauppauge, NY 11788 128-8980 128-8980 20 of 20...
