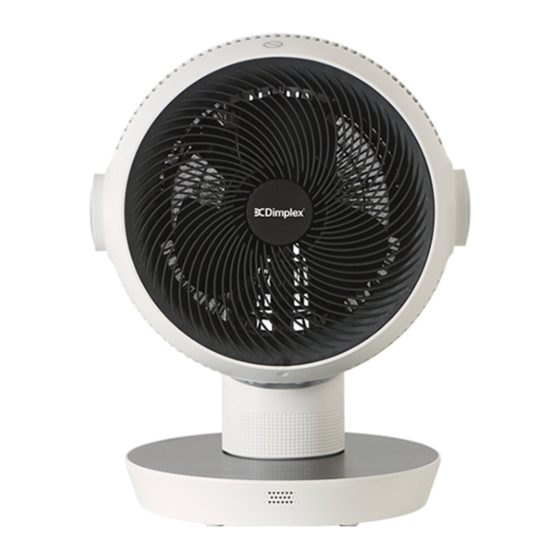

- Page 1 INSTRUCTION MANUAL Air Circulator Fan Model: DCAC30HC For domestic household use only. 08/55014/0 Issue 3...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your air circulator for the first time and keep them in a safe place.
- Page 3 • Please ask a professional service agent to repair the product. Improper repair may cause danger to users. • Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning. • Operate the appliance only at the voltage specified on the rating label. •...
- Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification Model no. DCAC30HC Power supply 220-240V~, 50Hz 40W (cooling) Rated power 1800W (heating) Speed settings 5 (cooling) Heat settings Timer 12 hours Air movement /min Air speed 6m/s Vertical oscillation Horizontal oscillation Noise level (MAX) 55dB(A) Weight (net) 3.9kg Dimensions (w x d x h) 318 x 275 x 404.2mm... -
Page 7: How It Works
Most fans simply lack the aerodynamics to keep the air in the room in motion. As opposed to blowing air directly in contact with it, our Dimplex air circulators create a 3D oscillating draught in the form of an invisible jet stream. - Page 8 Parts (1) Front Shell (8) Rear Shell (2) Front Grille (9) Handle Cover (3) Cover (10) Fixing Block (4) Post (11) Dust Screen - Left (5) PC Panel (12) Dust Screen - Right (6) Upper Base Cover (13) Power Cord (7) Lower Base Cover (14) Manual On/Off Switch...
-
Page 9: Remote Control
Control Panel & LED Display D F - E F 0 8 3 0 K P V C (10) (7) (8) (9) On/Off Vertical Oscillation Screen Off T emp/Timer Decrease Cooling Air Speed T emp/Timer Function Heating Air Speed T emp/Timer Increase Horizontal Oscillation (10) LED Display... -
Page 10: Operation
Operation IMPORTANT NOTE: The two adjusting knobs are used to control the opening and closing of the air outlet. When adjusting, please be sure to adjust on both sides, with both hands. When in heating mode, we recommend pulling the handles forward. This will help to reduce the entry of cold air and make the warm air feel warmer and more concentrated. -
Page 11: Timer Setting
Operation FUNCTION After the power is turned on, the device beeps twice and enters the standby state, all functions and displays are turned off. (note: If you press the On/Off button within 10 seconds after turning off the heater or directly press the On/Off button in the heating state, the fan will delay 10 seconds before turning off. - Page 12 Operation b) When the ambient temperature reaches the set temperature, the heating wire turns off, the vane delays 10 seconds before turning off, oscillation stops (if it has been turned on before), and others remain unchanged. When the ambient temperature drops 2°C below the set temperature, the heating wire, vane and oscillating function (if they have been turned on before) turn on again.
-
Page 13: Screen Off
Operation 3) After the ECO mode is turned on, the heating wire turns to low level operation when the ambient temperature rises to 18°C. When the ambient temperature drops 2°C below the set temperature (that is, 16°C), the heating wire turns to high level operation. - Page 14 Cleaning Over time, dust can accumulate on the grille covers, filter (if applicable) and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 15: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
