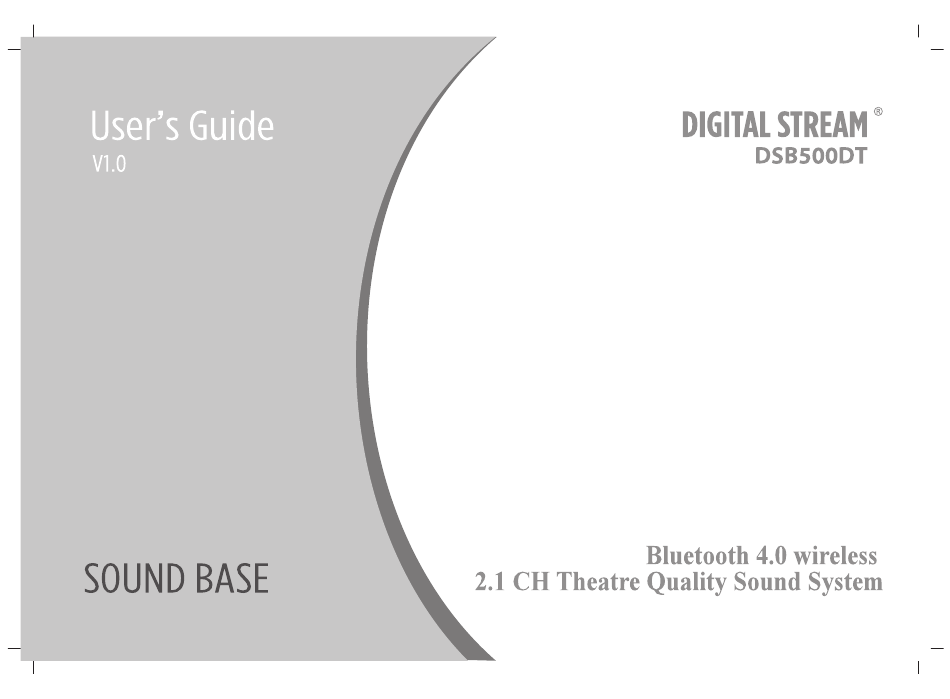

Summary of Contents for Digital Stream DSB500DT
- Page 4 Features Thanks for your purchase of our product. Please read through this manual before making connections and operating this product. Retain this manual for future reference. • Line input • AUX input • Optical input • Coaxial audio input • Full function remote control •...
-
Page 5: For Your Attention
For Your Attention IMPORTANT NOTES • Please read through this manual before making connections and operating this product. Retain this manual for future reference. • Don't open the cabinet of this unit, No user-serviceable parts inside. Refer servicing to qualified personnel only. •... -
Page 6: Top Panel
Panel TOP PANEL �-------------------------------. • -- T ·! OsTANDBY Press to switch on the sound base; Press it again to put the sound base in standby mode. @SOURCE Press repeatedly to switch among BLUETOOTH, LINE IN, AUX IN, OPTICAL IN and COAXIAL IN mode. 6}VOLUME+/- Press to turn up/down the volume. -
Page 7: Front Panel
Panel FRONT PANEL '===l STANDBY INDICATOR fj DISPLAY SCREEN REAR PANEL '===l AC INPUT COAXIAL DIGITAL AUDIO INPUT fj LINE INPUT C, OPTICAL INPUT 6) AUX INPUT... -
Page 8: Audio Input
Connections AUX IN/LINE IN This sound base has an extra group of audio input AUDIO INPUT terminals. You can input the stereo audio signals AUX Input Line Input Dig�al Audio Input Optical Input from extra devices such as VCD, CD, VCR, DVD rm .. - Page 9 4. 0 phone, tablet, etc) to search the Bluetooth signal of the sound base, select DSB500DT on your list. "BLUET' will display on the screen and the sound base will synchronize to play songs on your device while connected successfully.
-
Page 10: Remote Control
Remote control Remote Control OReration Insert two AAA/1.SV batteries into the remote control. Point the remote control at the remote sensor on the front panel. Remote works to a distance of up to 25 feet wi thin line of s i ght of the remote sensor. Batte Installation 1) Remove the battery... - Page 11 • Press to switch on the sound base. Press it again •••• to put the sound base in standby mode. • Press to switch the equalizer modes among MUSIC, MOVIE, GAME and NEWS. • Press [VOLUME+] to turn up the volume. •...
-
Page 12: Troubleshooting
Troubleshooting Before returning the unit to place of purchase and before calling for service, please kindly check by yourself with the following chart. Symptoms Cause(s) Remedy • The AC power cord is not connected to • Please check that the AC power cord is connected No Power the power supply or is not connected to securely. -
Page 13: Specifications
Specifications Power supply AC~ IN 100-240V 50/60Hz, 55 W Temperature -10~ + 35'C Working environment Relative humidity 5 %~90% 15Wx 2 + 25W Power output (Max) Frequency response ±3dB(50Hz~20kHz) NET Dimension/weight 702mm x 342mm x 63mm / 5.63kg -13-... -
Page 14: Limited Warranty
Limited Warranty This Digital Stream brand product is warranted by Innovative DTV Solutions, Inc. to the original purchaser against manufacturing defects in materials and workmanship encountered in the normal noncommercial use of this product for a limited warranty period of:...
