SECO-LARM Enforcer SK-1123-FDQ Manual

Vandal resistant flush-mount access control keypad
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SK-1123-FDQ
Vandal Resistant Flush-Mount
Access Control Keypad
Manual

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM Enforcer SK-1123-FDQ

Summary of Contents for SECO-LARM Enforcer SK-1123-FDQ

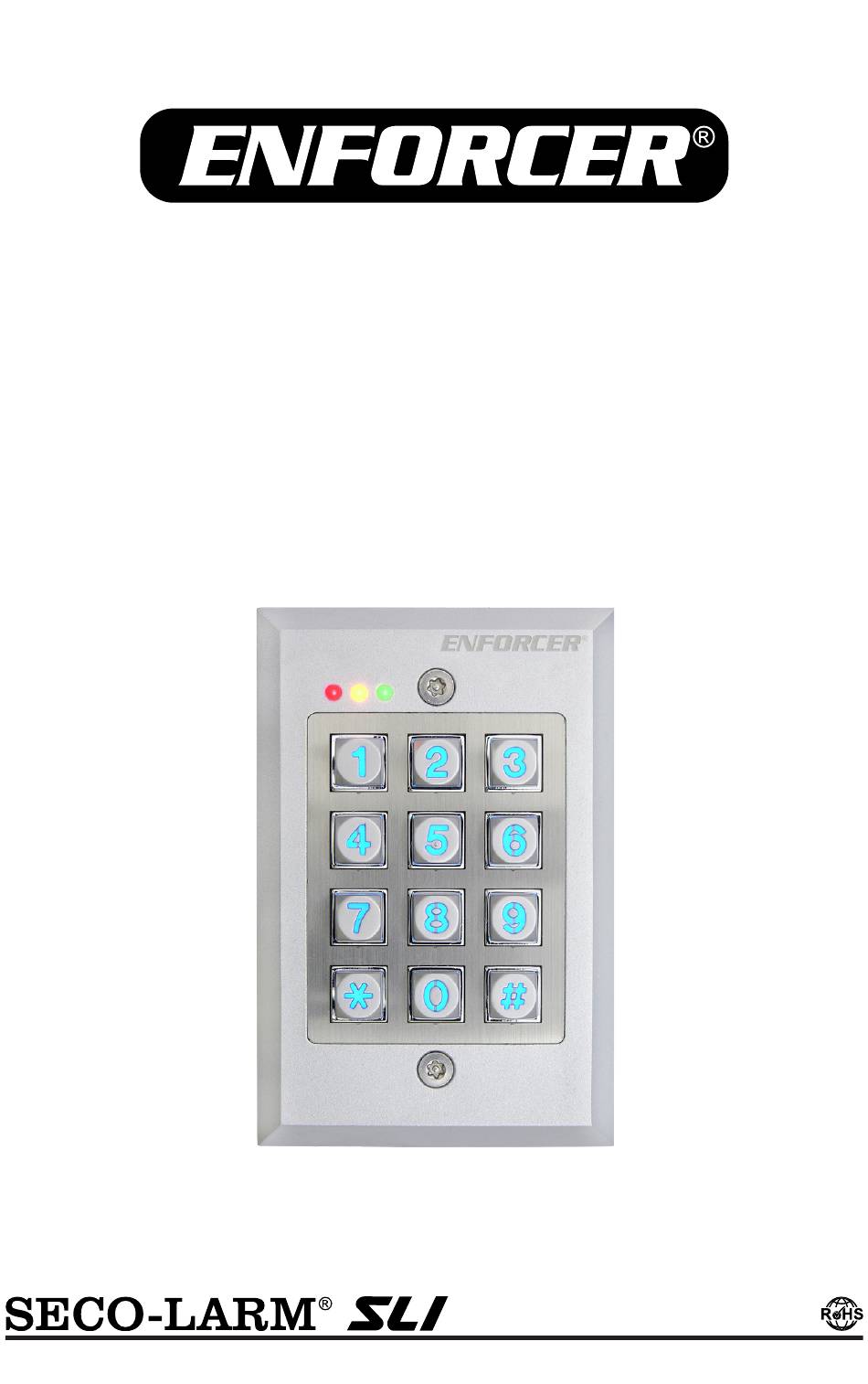

  • Page 1 SK-1123-FDQ Vandal Resistant Flush-Mount Access Control Keypad Manual...

  • Page 2: Quick Installation Guide

    This page is for installers looking to do a basic installation and programming of the keypad. For more in-depth installation and programming instructions, see the Table of Contents on page 4. Mounting Diagram: WALL CUTOUT Installation screws Quick Wiring Diagram: SK-1123-FDQ SECO-LARM U.S.A., Inc.

  • Page 3: Quick Programming Guide

    ID #000. 5. Set the output #1 delay time (skip this step if the default value of 5 seconds is acceptable): 51 3 # NOTE: sets the output #1 delay time for 3 seconds. 6. Exit Programming Mode: SECO-LARM U.S.A., Inc.

  • Page 4: Table Of Contents

    Programming the Amber LED Flashing during Standby Mode ............25 Programming the Door-Forced-Open Warning and Timing ............. 25 Programming the Door-Propped-Open Warning and Timing ............26 Programming the Egress Delay/Warning .................. 26~27 Direct Access to Programming (DAP) ..................... 28 SECO-LARM U.S.A., Inc.

  • Page 5: Features

    5~95% Non-condensing IP Rating IP66 Dimensions (including back box) 43/4”x31/8”x113/16” (120x80x46 mm) Weight 16.2-oz (460g) Keypad LEDs off Parts List: • 1x Keypad • 2x Security screws • 1x Security Wrench • 1x Diode • 1x Manual SECO-LARM U.S.A., Inc.

  • Page 6: Overview

    1. Keypad sounds can be programmed ON or OFF (see page 24). 2. Output relay activation sounds can be programmed for 1-Sec long beep, 2 short beeps, or OFF (see page 25). 3. Amber LED flashing during standby mode can be programmed ON or OFF (see page 25). SECO-LARM U.S.A., Inc.

  • Page 7: Installation

    2. The keypad must be properly grounded. Use a minimum of 22AWG wire connected to the ground terminal. Failure to do so may damage the keypad. 3. All wiring and programming should be done by a professional installer to reduce the risk of improper installation. SECO-LARM U.S.A., Inc.

  • Page 8: Wiring Diagram

    Dim backlit during standby. Full backlit for 10 seconds after any button press. Backlit Auto No backlit during standby. Full backlit for 10 seconds after any button press. Sample Applications: Stand-Alone Door Lock: In this application, the keypad is connected to a single door lock and an egress pushbutton. SECO-LARM U.S.A., Inc.
  • Page 9 While one door is open, the other cannot be opened. • Use an N.C. magnetic contact or some other N.C. device to detect whether a door is opened or closed. Do this for the two doors being protected. SECO-LARM U.S.A., Inc.

  • Page 10: Sample Applications For Output #2

    #2 in parallel with the locking device. N.O. O/P 2 O/P 2 N.C. N.C. N.O. N.O. 12VDC Power Supply N.O. IN4004 N.O. IN4004 N.O. N.C. Electric Lock 12VDC Power Supply Electric Lock N.O. N.C. IN4004 N.O. N.C. IN4004 12VDC Electric Lock Power Supply SECO-LARM U.S.A., Inc.

  • Page 11: Getting Ready To Program

    LED will return to flashing, indicating standby mode, upon exiting programming mode. NOTE: DO NOT DISCONNECT THE KEYPAD FROM POWER WHILE IN PROGRAMMING MODE. Disconnecting the keypad while in programming mode could cause a keypad memory error. SECO-LARM U.S.A., Inc.

  • Page 12: Programming Format And Default Programming Values

    Warning disabled Egress delay/warning Egress output happens immediately 26~27 NOTE: The Direct Access to Programming (DAP) code 2828 (page 28) and the system restore code 9999 (page 13) are fixed and cannot be changed, even via programming. SECO-LARM U.S.A., Inc.

  • Page 13: System Restore

    The master, super user, visitor, duress and user codes cannot be the same. • If the keypad is set for Auto Code Entry Mode, all codes will need to be the same number of digits as the master code (see “Programming the User Code Entry Mode” on page 24). SECO-LARM U.S.A., Inc.

  • Page 14: Programming The Super User Code

    In these examples, assume the super user code is 1. Activate or deactivate output #1 (timed or toggle, depending on programming): 2580 # 1 2. Activate or deactivate output #2 (timed or toggle, depending on programming): 2580 # 2 SECO-LARM U.S.A., Inc.
  • Page 15 For safety reasons, the egress button works regardless of whether output #1 is enabled or disabled via the super user code. • The super user code continues to operate output #1 even while that output is disabled. SECO-LARM U.S.A., Inc.

  • Page 16: Programming User Codes

    1. Program user code for user ID #010 for output #1: 10 2 010 2275 # 2. Delete code for user ID #002 for output #2: 20 5 002 # 3. Delete all users for output #1: 10 0999 # SECO-LARM U.S.A., Inc.

  • Page 17: Programming Visitor Codes For Output #1

    2. Set the visitor ID #02 code to 1378, and make it valid for three hours: 40 02 03 1378 # 3. Delete the visitor ID #02 code from memory: 40 02 # 4. Delete all currently programmed visitor codes 40 0999 # SECO-LARM U.S.A., Inc.

  • Page 18: Programming Duress Codes

    A duress code can be 4 to 8 digits long and must have the same length as all other codes if the keypad is used in auto code entry mode (see “Programming the User Code Entry Mode” on page 24) Examples: 1. Set the duress ID #01 code for output #1 to 2369: 41 01 2369 # SECO-LARM U.S.A., Inc.
  • Page 19 1. Activate the duress output and output #1 using the duress code: 2369 # NOTE: Subsequently entering the duress code will activate output #1 again, but will not deactivate the duress output. 2. Deactivate the duress output using the user code: 1369 # SECO-LARM U.S.A., Inc.

  • Page 20: Programming The Output Mode And Output Timing

    1. In programming mode, set output #1 to toggle: 51 0 # 2. In programming mode, set output #2 to 60 seconds: 52 60 # 3. Reset output #1 timer: 2580 # 1 4. Reset output #2 timer. 2580 # 2 SECO-LARM U.S.A., Inc.

  • Page 21: Programming The Real-Time Clock

    If the output #1 auto-disable time is not programmed, losing power will not cause the keypad to beep. • To ensure accurate time, it is advised to re-program the real-time clock every three to six months and when Daylight Savings Time begins and ends (if applicable). SECO-LARM U.S.A., Inc.

  • Page 22: Programming The Output #1 Auto-Disable Time

    1. In programming mode, set the auto-disable time from 12:00 PM to 1:00 PM: 56 1200 1300 # 2. In programming mode, set the auto-disable time from 6:30 PM to 7:30 AM the following day: 56 1830 0730 # SECO-LARM U.S.A., Inc.

  • Page 23: Programming The Wrong-Code System Lock-Up

    15 minutes or until the super user code is used as follows: SUPER USER CODE • – No system lock-up will happen. NOTE: The keypad’s red LED will remain lit to show that the keypad is locked. The duress code will still function in this mode. SECO-LARM U.S.A., Inc.

  • Page 24: Programming The User Code Entry Mode

    • To enable keypad silent mode: 71 0 # NOTE: This programming function only impacts the keypad sounds. It does not impact the output relay activation sounds (see “Programming the Output Relay Activation Sounds” on page 25). SECO-LARM U.S.A., Inc.

  • Page 25: Programming The Output Relay Activation Sounds

    If programmed for door-forced-open warning, the keypad will beep if the door is forced open without using a user code or the egress button. The keypad will not beep if the door is opened with a user code or the egress button. SECO-LARM U.S.A., Inc.

  • Page 26: Programming The Door-Propped-Open Warning And Timing

    • Momentary contact with warning beep – Press the egress button momentarily. The keypad will beep for the programmed delay time before letting the door open, to warn that someone is preparing to exit the protected area. SECO-LARM U.S.A., Inc.
  • Page 27 For safety and to avoid confusion, when a delay or a press-and-hold delay is programmed, please post a notice near the egress button, such as: “Press and hold the button for 5 seconds or until the door is unlocked.” SECO-LARM U.S.A., Inc.

  • Page 28: Direct Access To Programming (Dap)

    This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for three (3) years from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty...
