Coby DP870 Instruction Manual

COBY Electronics Corp.
56-65 Rust Street
Maspeth, NY 11378
8" Widescreen Digital Photo
www.cobyusa.com
www.ecoby.com Frame with Touch Button
DP870
INSTRUCTION MANUAL
Please read this manual carefully before operation
Please make sure that the items shown below are included in the package. Should
an item be missing, please contact the local retailer from which you purchased this • 8" widescreen TFT LCD color display
product. • Displays JPEG, BMP and JPG photo files
•
Plays MP3, WMA, OGG,ADPCM-WAV and PCM-WAV music files
•
ＭＯＤＥ ＰＯＷＥＲ Plays MPEG-4, AVI, MOV, MP4, 3GP video files
ＲＯＴＡＴＥ ＦＵＮＣ ＭＵＴＥ •
Photo slideshow mode with music
ＳＬＩＤＥ ＳＥＴＵＰ ＋
•
ＢＡＣＫ ＰＡＵＳＥ － Calendar and clock with alarm timer
• Card slots
• 128MB Built-in Memory
• Full-size USB port for use with flash memory drives
• Integrated speaker
• Remote control included
• Wall-mountable design with detachable stand
•
With touch buttons and mechanical buttons
1. DP Frame 4. Manual ×1
×1
2. Remote Control ×1 5. Kickstand and Screw x 1
3. ×1
MUSIC MODE VIDEO MODE
To play your digital video files, press the BACK button to select the
Music Playback Screen
IMAGE/AUDIO/VIDEO list and press the direction buttons to select the VIDEO and then
press the ENTER button to display the video tag.
Music Video Tag
Upon entering Video Tag, your photo frame will scan the memory device for avail-
1 able video files.
1. MUSIC A. MP3
2. MUSIC B. MP3
MUSIC A. MP3
3. MUSIC C. MP3
Artist 4
4. MUSIC D. MP3 Album IMAGE AUDIO VIDEO
5. MUSIC E. MP3
6. MUSIC F. MP3
1. VIDEO A.avi
7. MUSIC G. MP3
2. VIDEO B.avi
8. MUSIC H. MP3
3. VIDEO C.avi
9. MUSIC I. MP3
10. MUSIC J. MP3 4. VIDEO D.avi
2
11. MUSIC K. MP3 5. VIDEO E.avi
6. VIDEO F.avi
7. VIDEO G.avi
1
.../Music/MUSIC A. MP3 8. VIDEO H.avi
9. VIDEO I.avi
3
10. VIDEO J.avi
11. VIDEO K.avi
1. Current Audio File
Function Icons, from left to right: Previous, Full-Screen Display, Fast Reverse,
Playback/Pause, Fast Forward, Stop, Next.
VIDEO TAG SCREEN
To use the Fast Reverse, Full-Screen Display, Playback/Pause, Fast Forward,
Stop, Next functions: press the FUNC button to select and highlight the
Function icon. And then press the RIGHT/LEFT button to select Fast Reverse, • Use the direction buttons to select an video file and press t h e ENTER
Playback/Pause, Fast Forward, Stop, Next and press the ENTER button to
b u t t o n to start playback.
confirm.
3. Help Information
•
Press the UP button to change the Repeat Mode which will be shown on the
lower left corner of the Playback Information Box.
• Press the DOWN button to change the EQ Mode which will be shown on the
upper right side of the Playback Information screen.
4.
Playback Information Box.
5. Press the VOL+/VOL- button to adjust the volume.
Press the BACK button to exit. The Video List will display supported Video files, only.
Your photo frame can play Motion JPEG, AVI and MPEG4 video files.
20 21
TROUBLESHOOTING TROUBLESHOOTING
If you have a problem with this device, please read the troubleshooting guide The player will not play my music file.
below and check our website at www.cobyusa.com for Frequently Asked • Ensure that the file is in a compatible format (MP3,WMA, OGG, ADPCM-WAV
Questions (FAQs) and firmware updates. If these resources do not resolve the
or PCM-WAV).
problem, please contact Technical Support.
• The file may be copy-protected. This player cannot play copy-protected files.
ADDRESS
The player will not play my video file.
COBY Electronics Technical Support
• Ensure that the video file will play on your computer using Windows Media
150 Knowlton Way
Savannah, GA 31407 Player 10. If the file works on the computer, use the same computer to convert
EMAIL the video to a compatible format.
techsupport@cobyusa.com
WEB
www.cobyusa.com The Vividshare Can't be opened on a computer.
PHONE • Make sure that there's no USB flash drive connecting to the DP frame.
800-727-3592: Weekdays 8AM–11PM EST • Remove the USB flash drive and reconnect the DP frame to a computer.
Saturdays 9AM–5:30PM EST
718-416-3197: Weekdays 8AM–5:30PM EST
There is no sound.
The player does not turn on. • Ensure that the volume level of the DP frame has been set to a reasonable
• Make sure the unit has been powered on manually (i.e., the Power Switch has level by the remote control or the volume buttons on the top panel of the DP
frame.
been physically set to the ON position).
• Ensure that the power cord has been properly connected to the power outlet.
The remote control does not work.
The sound quality of the music is poor.
• Make sure the unit has been powered on manually (i.e., the Power Switch has
• Try playing the file on your computer. If the sound quality is still poor, try down-
been physically set to the ON position).
loading the file again or re-encoding the file yourself.
• Remove any obstacles between the remote control and the frame.
• Ensure that the bit rate of the file is not too low. The higher the bit rate of the
• Point the remote control towards the remote sensor on the frame.
file, the better it will sound. The minimum recommended bitrate is 8-320 kbps
• Ensure that the battery has been installed correctly in the remote control.
for MP3s and 5-384 kbps for WMAs,64-320 for OGGs, 32--384 for ADPCM-WAVs
and 128--1536 for PCM-WAVs • Replace the battery.
I cannot select a memory card.
• The alarm does not work.
Ensure that a memory card has been installed.
•
• Make sure the Alarm Setting is set properly in Calendar Setup in Setup Menu.
Ensure that the memory card is properly installed.
•
• Make sure the volume is set to a comfortable listening level by the remote
Ensure that the memory card is not defective.
control or the volume buttons on the top panel of the DP frame.
•
Do not use SDHC memory cards. They are not supported by
this DP frame.
30 31 31
WARNING:
To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high
voltage is present inside the enclosure. Do not open the cabinet.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot of outlet and fully
insert.
Protect your hearing: Hearing experts advise against the constant use of personal stereos
played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should
experience ringing in the ears or hearing loss, discontinue use and seek medical advice.
FCC Statement:
this device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for Class B digital
devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference to radio or televi-
DP870
sion reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of
the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified
in the manual. If such changes or modifications should be made, you could be required
to stop operation of the equipment.

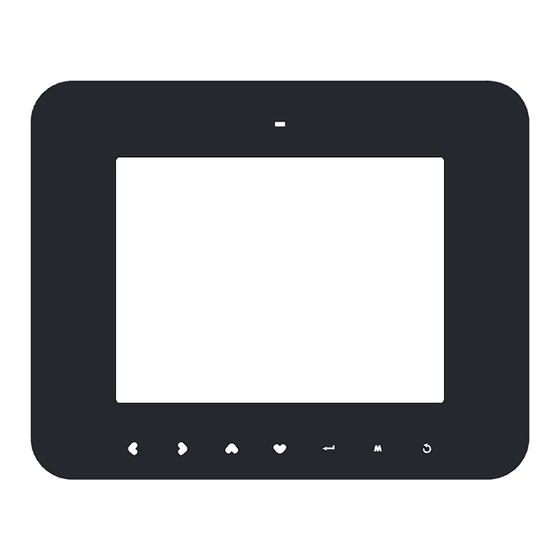

LOCATION OF CONTROLS LOCATION OF CONTROLS
LEFT VIEW
FRONT VIEW
6. Power switch 8" TFT LCD Screen
13.
7. USB Full-Size ( For use with USB flash 14. Remote Sensor
15. Touch this button to achive the same
drives)
8. USB-Mini ( for PC connection) contral as VOL- button
9. Headphone / Earphone Jack 16. Touch this button to achive the same
10. Power in Jack control as VOL+ button
17. Touch this button to achive the control as
UP button
RIGHT VIEW ( CARD SLOTS) 18. Touch this button to achive the same
control as DOWN button
11. Secure Digital (SD) / Multi Media Card
19. Touch this button to achive the same
(MMC) / Memory Stick (MS) /
control as ENTER button
XD-Picture (XD)
20. Touch this button to achive the same
12. Compact Flash (CF) control as MENU button
21. Touch this button to achive the same
REAR VIEW
control as BACK button.
22. Detachable Kickstand
23. Speaker and Ventilation Slots
Remote Control
TOP VIEW
1. VOL - 3. Back 1. MODE
• Press for left. • On the Menu Screen, press this button to 2. ROTATE ＭＯＤＥ ＰＯＷＥＲ
•
To turn down the volume level in Audio, move the cursor to select different menu
3. SLIDE
Video and Slideshow mode. option.
VOL + • 4. BACK ＲＯＴＡＴＥ ＦＵＮＣ ＭＵＴＥ
Press for exit.
•
Press for right. 5. PAUSE
• 4. Setup ＋
To turn up the volume level in Audio, 6. UP/ DOWN/ LEFT/ RIGHT ＳＬＩＤＥ ＳＥＴＵＰ
Video and Slideshow Mode. •
Press for Setup Menu.
7. ENTER
－
2. Enter 8. POWER ＢＡＣＫ ＰＡＵＳＥ
5. Down/Up
• Press for enter during menu selection. •
• Press for down / up during menu 9. FUNC
Press this button to play/pause audio /
selection. 10. MUTE
video. • Press for next/previous during photo/
•
In Photo Slideshow Mode: press this auido/ video playback. 11. SETUP
button to display the Image Play Mode 12. + (VOL +)
menu. Press again to undisplay.
13. - (VOL -)
Note:This photo frame provids both touch buttons(located in the front bezel of
12 the photo frame) and mechanical buttons, they can achive the same control. 13
VIDEO MODE CONNECTION
Video Preview Mode
Headphones
During video playback, press the BACK button to enter the view preview
mode.
Movie
1
1. VIDEO A.avi
2. VIDEO B.avi
MUSIC A. MP3
3. VIDEO C.avi Artist 4
4. VIDEO D.avi Album
5. VIDEO E.avi
6. VIDEO F.avi
7. VIDEO G.avi
8. VIDEO H.avi
9. VIDEO I.avi 2
10. VIDEO J.avi
11. VIDEO K.avi
3
1. Current Video File
Function Icons, from left to right: Previous, Fast Reverse, Playback/Pause,
Fast Forward, Stop, Next.
To use the Fast Reverse, Playback/Pause, Fast Forward, Stop, Next functions:
press the FUNC button once to select and highlight the Function icon. And then
press the RIGHT/LEFT button to select Fast Reverse, Playback/Pause, Fast
Forward, Stop, Next and press the ENTER button to confirm.
Help Information
3. Press the LEFT button for Previous page.
Press the RIGHT button for NEXT page.
Playback Information Box.
4.
5. Press the VOL+/VOL- button to adjust the volume.
Press the BACK button to exit.
22 23
SPECIFICATIONS
8" Full-Color TFT LCD
Display Type
Display Resolution 800 (H) x 480 (V)
Memory MS Card Slot
CF Card Slot
SD/MMC Card Slot
xD Card Slot
Full-size USB port
Audio Format Support WMA (5 ~ 384kbps 8~48KHz)
MP3 (8 ~ 320kbps 8~48KHz)
OGG (64~ 320kbps 8~48KHz)
Video Format Support AVI, MOV, MP4 and 3GP
MPEG4
Photo Format Support JPEG, BMP, JPG
USB Host USB 2.0 High-Speed
Audio Output 3.5mm Stereo / Headphone
Built-in Speaker
Power Supply DC 9V, 1A
100-240V AC Adapter
Built-in lithium battery Supply battery for the clock for
about 900 days.
Calendar From 1900~ 2099 years.
Specifications and manual are subject to change without prior notice.
32
GETTING STARTED GETTING STARTED
Installing a Memory Card
Using the Remote Control
To load a battery in the remote: Your picture frame supports the following types of memory cards:
•
1. Pull in the direction of the arrow Memory Stick (MS)
•
2. Slide the compartment out Compact Flash (CF)
• XD-Picture (XD)
3. Place the battery in the compartment with the positive side ( + ) facing up
• Secure Digital (SD)
4. Push the compartment in to close
•
Multi Media Card (MMC)
•
USB Flash Storage Drive
Simply insert the memory card of your choice into its corresponding card slot lo-
cated on the left panel of the photo frame. Take care to orient the card in the proper
direction.
Getting photos and files onto your picture frame for viewing couldn't be easier!
To use the remote:
•
Point the remote at the remote sensor of the photo frame at a distance of no Powering your Digital Picture Frame
more than 15 feet (15") and at an angle no greater than 60 degrees.
Your Picture Frame should be connected to
•
Batteries will last for about one year under typical usage. Replace the batter- an AC 100-240V wall outlet.
ies if the remote is no longer working. DC OUT: 9V 1A
•
• Using the supplied power adapter,
Do not spill water on the remote control.
plug one end of the adapter into
•
Do not use the remote control for other equipment at the same time. your photo frame's Power In jack
• and plug the other end into an AC
Remove the batteries if the remote control will not be in use for an extended
period of time. 100-240V wall outlet.
The battery used in this device may present a fire or chemical
hazard if mistreated. Do not recharge, disassemble, incinerate, or
heat the batteries.
Do not connect the power plug to a power outlet other than that
Used batteries should be disposed of safely and not incinerated. which is indicated here or on the label as this may result in the risk
Attention should be shown to the environmental aspects of battery of fire or electric shock.
disposal.
Do not handle the power plug with wet hands. Doing so may cause
Keep batteries out of the reach of children.
electric shock.
Use only AC adapters of the type specified here. Failure to do so
may cause a fire or damage the player.
14 15
SETUP MENU SETUP MENU
To adjust the settings and options of your digital photo frame, press the SETUP button
to enter the SETUP MENU. Display
LCD setting.
To set the Contrast,
Setting
Backlight, Brightness or
Color of the screen:
Select the desired option
Display and then press the ENTER
Time button to confirm, press the
Photo edit UP/DOWN button to adjust.
Device
•
Press the BACK button once and then press the UP/DOWN button to
Setting Sets the Slide Duration, BG Music, Display Mode,
select Setting, Display, Image, Time, Photo Edit or Device. Press the
• ENTER button to cofirm. and or Slide Order.
Use the direction keys to highlight and display an option / sub-menu. Slide Effect Sets the Slide Effect.
• Press the ENTER button to confirm. Explore Sets the Layout Mode.
•
To exit the Setup Menu, press the SETUP button again.
Time
Setting
Date&Time To set a date/time: select the yy-mm-dd/Time option
and press the ENTER button to confirm, and then
press the UP/DOWN button to select the desire
Language Sets the OSD language.
date/time. Press the ENTER button to confirm.
Power on Sets the Power on Mode Sets the time Mode to 12 or 24 hours
Button sound Sets the Button Sound Mode
Sets the Movie Display Mode To set a Power On/Off Time:
Movie Auto Power
To set the power on/off frequency: select Repeat
Version Vews the information of the DP frame.
option and press the ENTER button, and then select
and confirm the desired option.
To set the time: select Power on/off time option, and
then press the ENTER button to confirm. Press the
UP/DOWN button to select the desire time. Press
the ENTER button to confirm.
24 25
GETTING STARTED GETTING STARTED
Turning Your Photo Frame On/Off Main Menu Screen
• Upon turning on the power and inserted a card contains supported photo files,
To turn your photo frame on, set the Power Switch to the "On" position.
your photo frame will display the demo slideshow, press the BACK button to display
•
To turn your photo frame off, set the Power Switch to the "Off" positio the MAIN MENU shown below:
Touch buttons On the Main Menu screen:
• Press the BACK button to select different menu list or return to the
After power on, the starlight touch buttons will appear in the front bezel of the photo
upper menu leve.
frame. During operation, touch any of the buttons to light up, then touch the desired button •
Press the direction button to select different option in the list.
to control, the selected button will blink when touching.Please refer to Location of controls. •
Press the ENTER button to confirm and or start playback.
Menu Interface Navigation Card List
To select the different menu options and files of your digital photo frame:
Selected
• Use the Navigation keys to make a selection.
Image/Audio/
• To move the selection up, press Video List
• To move the selection down, press Folder List
• To move the selection left, press Current File
• To move the selection right, press
• Press ENTER to confirm the highlighted selection.
• To return to the previous screen, press MENU.
Computer Connection (USB)
Connect the DP frame to a computer with a USB cable to:
• Transfer files to and from your photo frame's installed memory cards.
• Perform basic file management functions.
Connecting to a Computer
a USB cable. Upon connection: Key Function Instructions
Connect the photo frame to your computer with
MAIN MENU SCREEN
• Your computer will automatically recognize the memory cards installed in
your photo frame. Icons representing your installed memory cards will appear CARD LIST
Icons from left to right: Built-in Memory, USB Device, CF Card, SD/MMC/MS/
as "Removable Disk " when you open "My Computer".
XD Card Icons.
Inser ted: A card icon that is in-color indicates that a memory card has
been inserted (installed) in the corresponding slot.
USB Port
No Card: A card icon that is grayed-out indicates that a memory card
(computer)
has not been installed in the corresponding slot and is not
available for use.
USB Port (mini) SELECTED: A highlighted bar indicates that the card slot is selected. Only
card slots with an installed memory card may be selected.
FOLDER LIST Folder list on current memory device.
CURRENT FILE Current file in the List.
Make sure that there's no USB flash drive connecting to the DP frame IMAGE/AUDIO/ VIDEO LIST The Image option that is highted is selected.
16 17
before connecting the DP frame to a computer. Hlep Information Please refer to setup section for operation details.
SETUP MENU SETUP MENU
Alarm
To set an Alarm Time:
File To Delete the selected file:
To set the Alarm frequency: select Repeat option
and press the ENTER button, and then select and 1. Select and confirm File Selection option and then
confirm the desired option. select the desired file from the Image/Audio/Video
To set an alarm time: select Time Settings option, tag and press the FUNC button, a click mark will
and then press the ENTER button to confirm. Press
appears on screen. ( Press the FUNC again to
the UP/DOWN button to select the desire time.
unselect.)
Press the ENTER button to confirm.
To set the alarm tone: Select and confirm the Sound
2. Select and confirm Delete in the Operation list,
option, and then select and confirm the desired
confirm OK to start deleting.
sound option.
3. After finished, press the ENTER button.
Photo Edit
Format Use this format function to format memory device
installed on this DP frame.
Effect Sets the photo display effect.
Firmware Update Type Sets the update type.
Frame Sets the photo frame.
From Device Update from memory device installed on
this DP frame.
Device
Reset Resets all settings to their factory default state.
File To Copy/Move the selected file:
1. Select and confirm File Selection option and then
select the desired file from the Image/Audio/Video tag
and press the FUNC button, a click mark will appears
on screen. ( Press the FUNC again to unselect.)
2. Select and confirm the desired setting in Copy Mode
and then select and confirm Copy or Move in the
Operation list .
3.
Select the desired available device from Device list
and press the enter button, and then select the
desired target folder and confirm OK to start copying
or moving.
4.
After finished, press the ENTER button.
26 27
24
Setting
24
Language/Poweron/Button Sound/Version 24
Display 25
LCD Setting 25
Image 25
Setting/Slide Effect/Explore 25
Top View Time 25
Left View Date&Time/Auto Power/Alarm 25
Right View
Photo Edit 26
Front View
Effect/Frame 26
Rear View Device
26
Remote Control
File/Format/Firmware/Reset 26
28
KICKSTAND
29
30
33
Touch buttons.....................................................................................................16
SLIDESHOW MODE 18
Slideshow 18
19
AUDIO MODE
Music Tag 19
Music Playback Screen
20
VIDEO MODE 21
Video Tag 21
Video Preview Mode 22
CONNECTION
23
Headphones 23
SLIDESHOW MODE AUDIO MODE
files,
Slideshow To play your digital audio press the BACK button to select the
IMAGE/AUDIO/VIDEO list and press the direction buttons to select the AUDIO and then
To display your photographs as a slideshow, press the BACK button to select the
press the ENTER button to display the audio tag.
IMAGE/AUDIO/VIDEO list and press the direction buttons to select the IMAGE and
then press the ENTER button to display the image tag, or press the SLIDE button at any Music Tag
time.
Upon entering Music Tag, your photo frame will scan the memory device for avail-
able audio files.
IMAGE AUDIO VIDEO
1. MUSIC A. MP3
2. MUSIC B. MP3
3. MUSIC C. MP3
4. MUSIC D. MP3
5. MUSIC E. MP3
6. MUSIC F. MP3
7. MUSIC G. MP3
8. MUSIC H. MP3
9. MUSIC I. MP3
10. MUSIC J. MP3
11. MUSIC K. MP3
IMAGE TAG SCREEM
During photo sildeshow
•
To pause / resume background music during the slideshow, press the PAUSE button. AUDIO TAG SCREEN
•
To play the next / previous track, press the RIGHT or LEFT button.
•
To adjust the volume level, press the VOL- or VOL+ button.
• To adjust the magnification of the current photo, press the UP/DOWN button. • Use the direction keys to select an audio file and press t h e ENTER
b u t t o n to start playback.
To pan around the magnified picture, press the FUNC button, and then press
the direction buttons.
Press the BACK button for 100% display.
To rotate the current picture, press the Rotate button.Each successive
press of ROTATE will change the degree of rotation as shown below:
Rotation 90 Rotation 180 Rotation 270 Rotation 0
• For more functions, press the FUNC button to display the Image Play Mode
menu. Select the desired function from the menu and press the ENTER
button to confirm.
The Music List will display supported audio files, only.
• To exit, press the BACK button.
Your photo frame can play digital MP3, WMA and OGG audio files .
Press the MODE button to shift between the photo slideshow mode,
18 8 19
audio playback mode and video playback mode.
KICKSTAND FIRMWARE UPGRADES
Using the Kickstand
From time to time, COBY may release firmware updates to improve the perfor-
mance of the DP frame or to add additional features. Please check the COBY web -
site periodically at www.cobyusa.com to see if new firmware has been released for
your photo frame.
1
Attach the kickstand to the DP frame.
2
Turn the screw to the right to tighten the kickstand.
28 29 31
