Intel EVO UA210021-GG Installation Manual

Digital table 4 sides dlb es costco
Hide thumbs

Advertisement

Quick Links

Download this manual
I N S TA L L AT I O N G U I D E | 0 6 . 2 0 2 1
UA210021-GG EVO DIGITAL TABLE 4 SIDES DLB ES COSTCO

Advertisement

loading

Summary of Contents for Intel EVO UA210021-GG

  • Page 1 I N S TA L L AT I O N G U I D E | 0 6 . 2 0 2 1 UA210021-GG EVO DIGITAL TABLE 4 SIDES DLB ES COSTCO...

  • Page 2: Installation Package

    I N F O R M AT I O N Installation package Fact Tag Holder (x6) Table (x1) M6x25mm - Qty 4 pcs M6x12mm - Qty 4 pcs for installing divider M6x25 Screw (x4) Dynamic LightBox Header (x1) M6x12 Screw (x4)
  • Page 3 I N F O R M AT I O N Tools provided for Installation Phillips Screwdriver (X1) Gloves (X2) Micro Fiber Cleaning Cloth (X1) Alcohol Pad (X2) Suc�on Cup (X1)

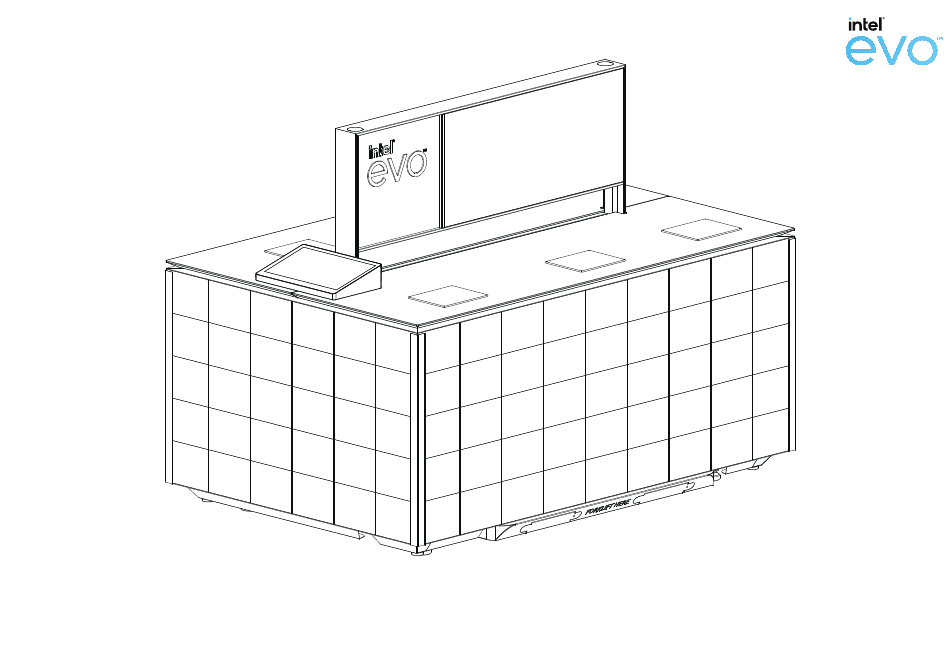

  • Page 4 O V E R V I E W Expected Result 4 LED Sides...
  • Page 5 I n s t a l l a t i o n I n s t r u c t i o n s Tool Box Dynamic Light-Box Divider Cut the straps on the crate. Open the crate. Tool Box Dynamic Light-Box Divider Remove the long side plywood edge.
  • Page 6 I n s t a l l a t i o n I n s t r u c t i o n s FORKLIFT Release the thumb screws and remove the cover plates. Insert the forks through the holes. FORKLIFT Li�...
  • Page 7 I n s t a l l a t i o n I n s t r u c t i o n s GENTLE QUICK PULL WILL RELEASE Dynamic Light-Box Divider (DLB) CAUTION DO NOT PINCH CABLES 2 PEOPLE REQUIRED Open each table-top by pulling them towards you.
  • Page 8 I n s t a l l a t i o n I n s t r u c t i o n s If the AC power is from the floor, please follow the steps 15-17. If the AC power is from the ceiling. Ceiling Power Steps - Op�on 1, please follow the steps 18-20.
  • Page 9 I n s t a l l a t i o n I n s t r u c t i o n s Ceiling Power Steps - Op�on 1 Choose one side and use the screw driver to remove the screw and Power up the display.
  • Page 10 I n s t a l l a t i o n I n s t r u c t i o n s Ceiling Power Steps - Op�on 2 Wire the power cable next to the Divider. Slide back the table tops, close and lock the table. REQUIRED STEP Adjust feet levelers with provided tool.
  • Page 11 I n s t a l l a t i o n I n s t r u c t i o n s Place fact tag holders on table top. Installa�on is complete.

  • Page 12: Troubleshooting

    Func�onality Check List: A:Make sure video is playing on the LED screens. B:Make sure Dynamic Light Box has moving lights. C:2 small intel EVO logos are illuminated. D:Verify product selector has content. Click through various bu�ons to ensure it is responding correctly Display Standards Check List: No physical damage anywhere on the display.If yes, document it with photos.
  • Page 13 T E C H N I C A L I N F O R M AT I O N Display wiring diagram...
