Makita HR3000C Parts Breakdown
Makita hr3000c rotary hammer: specifications
Hide thumbs
Also See for HR3000C:
- Instruction manual (60 pages) ,
- Instruction manual (13 pages) ,
- Instruction manual (16 pages)
Related Manuals for Makita HR3000C
Summary of Contents for Makita HR3000C

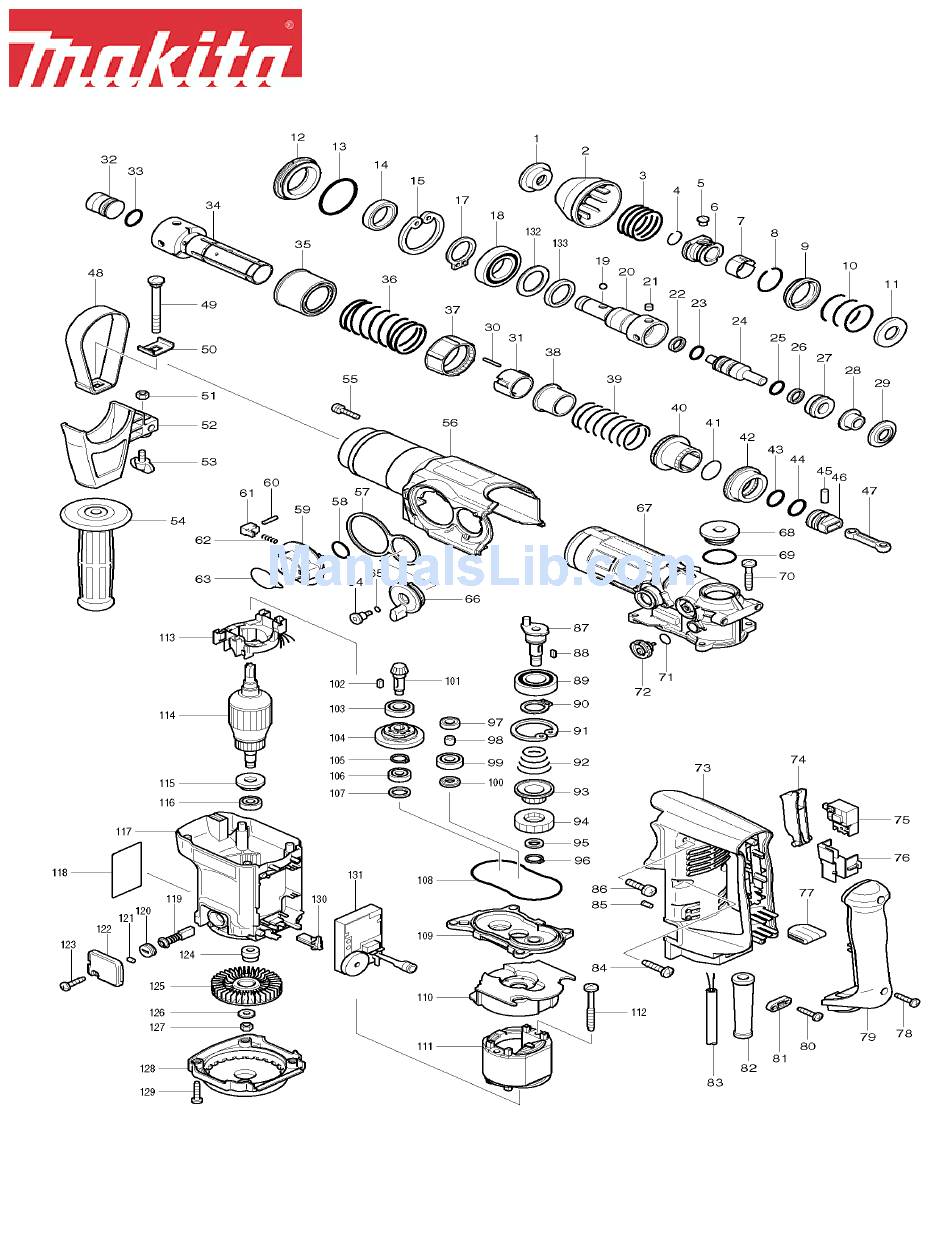

- Page 1 Parts Breakdown HR3000C Page 1 of 4 2/8/2008...
- Page 2 39 233254-6 COMPRESSION SPRING 34, HR3000C 40 331558-1 DRIVING SLEEVE, HR3000C 41 213435-8 O RING 26, HR3000C 42 226783-6 SPIRAL BEVEL GEAR 37, HR3000C 43 213274-6 O RING 18, HR3000C 44 213274-6 O RING 18, HR3000C 45 256292-1 PIN 7, HR3000C...
- Page 3 69 213406-5 O RING 30, HR5000 70 266173-1 T. SCREW FLANGE PT5X3,9015B 71 213070-2 O RING 10, AG125 72 151758-5 SPUR GEAR 21 COMPLETE, HR3000C 73 417014-6 HANDLE, HR3000C 74 416284-4 SWITCH LEVER, HR4000C 75 651922-3 SWITCH, HM1303B 76 416126-2...
- Page 4 Parts Breakdown 117 151840-0 MOTOR HOUSING COMPLETE, HR3000C 118 851772-8 NAME PLATE, HR3000C 119 191961-6 A.C. CARBON BRUSH, HM1100C 120 643750-0 BRUSH HOLDER CAP, HM1100C 121 263002-9 RUBBER PIN 4, HR2400 122 417024-3 BRUSH HOLDER COVER,HR3000C 123 265995-6 TAPPING SCREW 4X18, 4323K...
