MULTI-CHANNEL POWER AMPLIFIER 8-50 | 16-50
BOX CONTENTS
(1) Quickstart Guide
(1) Sonance Amplifier (8-50 or 16-50 model)
(1) IEC Power Cord (Region Dependent)
(4) Amp Feet
(2) Rack Ears and Screws
(4) Block Connector for Speaker Outputs
(1) Block Connector for Voltage Trigger

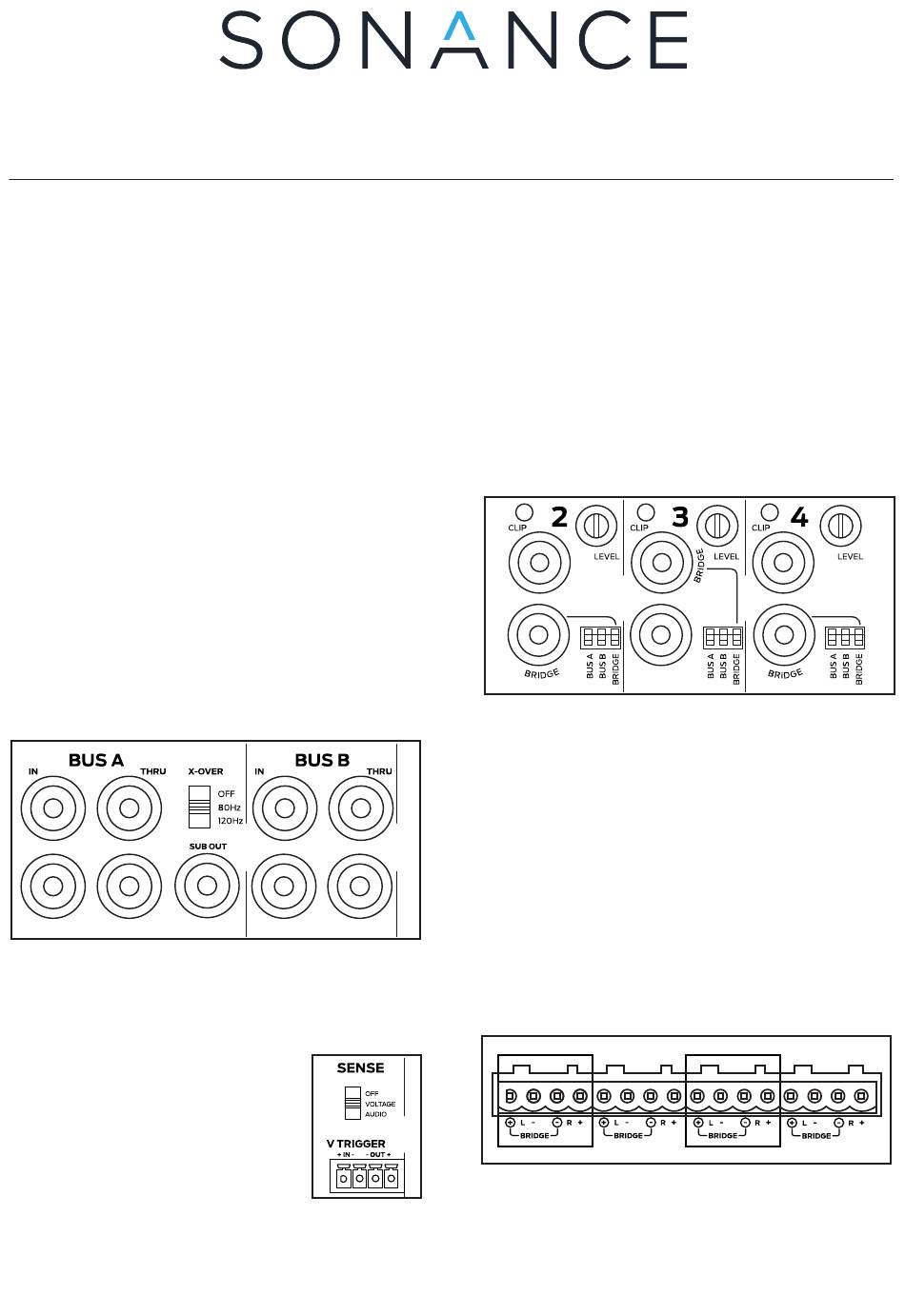

APPLICATION NOTES
BUS CONNECTIONS
• BUS A LOW PASS X-OVER: Subwoofer crossover
can be set to 80Hz or 120 Hz. High Pass x-over will
impact the Left and Right BUS A channels as well
• Powering a Passive Subwoofer: Use RCA from
subwoofer output to an unused discrete line input
in BRIDGE mode
NOTE: Setting the X-OVER to 80Hz or 120Hz will
crossover the signal for any zone output using BUS A
(80Hz and above, or 120Hz and above)
Connect source audio cables to Bus A, Bus B, or
Direct, making sure to adjust DIP switch to appropriate
selection for each Zone Output.
SENSE SWITCH FOR POWER SELECTION
• Switch Set to "OFF", Amp is
always powered on, ready to
play audio
• Switch Set to VOLTAGE", Amp
will power on with 12V DC applied.
Use the output to pass through to
other amps
• Switch Set to "AUDIO", Amplifier will power on
with audio signal after 4-6 seconds, and off with a
loss of audio signal after 15 minutes
QUICKSTART GUIDE
ZONE INPUT CONNECTIONS
•
•
•
•
DIP switches to enable Bus A input, Bus B input, and
Bridge mode on each zone.
BUS INPUTS AND DIP SWITCHES
DIP Switch selections can include one or both BUS
inputs, and or BRIDGE. When more than one BUS
input is selected on the DIP switch, the audio signals
will be mixed and all will be played back in that zone.
This can be useful when one BUS includes paging or a
doorbell signal
SPEAKER CONNECTIONS
•
•
Accepts speaker wire, up to 12 gauge. Note polarity
when connecting.
NOTE: Do not combine negative terminals. The amp is
not common ground type architecture.
Use RCA connections from discrete source to play
to associated zone (discrete inputs are always
active)
Use DIP switch if using Bus A, Bus B, or to bridge
the speaker output
Note the alternating Left or Right Discrete input
for bridged mode outputs
Zone Level Control: Adjust in small increments to
correct output gain as needed
Attach speaker wire (up to 12 gauge) with
included speaker block connectors for each zone
Wiring for Bridge Mode: Use Left Positive and
Right Negative connections
ZONE 1 ZONE 2
1
ZONE 3 ZONE 4
3
