PAC 212 Install Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

P/N:
909033079 | 909033075 | 909033076 | 909033074
909034079 | 909034075 | 909034076 | 909034074
pacgdxsupport@comelit-pac.co.uk
pacgdxcustomerservice@comelit-pac.co.uk
pacgdxcustomerservices@comelit-pac.co.uk
PAC GDX is a division of Comelit-PAC Limited Registered in England and Wales No. 04311885.
VAT No. GB 795 645 27
Registered Office: Waterside Park, 1 Crewe Road, Manchester, ME23 9BE. United Kingdom
T: +44 (0)161 4063400
UK: Unit 2B The Quad, Butterfield Business Park, Luton, Bedfordshire, LU2 8EF. United Kingdom
EU: Comelit Group S.p.A., Via Don Arrigoni n° 5, 24020 - Rovetta S. Lorenzo - BG, Italy

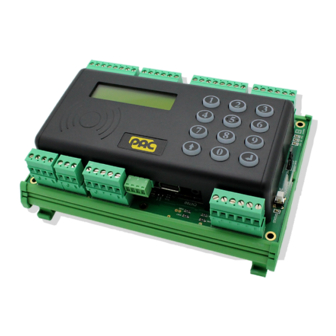

PAC 212 Access Controller
Install Guide
For download only
Ver. 171030/2.01 Feb 2022
Technical Support
Customer Services
T: +44 (0)161 4063400 - opt. 2
T: +44 (0)161 4063400 - opt. 1
Training
T: +44 (0)161 4063400 - opt. 1

Advertisement

Table of Contents
loading

Related Manuals for PAC 212

Summary of Contents for PAC 212

  • Page 1 T: +44 (0)161 4063400 - opt. 1 PAC GDX is a division of Comelit-PAC Limited Registered in England and Wales No. 04311885. VAT No. GB 795 645 27 Registered Office: Waterside Park, 1 Crewe Road, Manchester, ME23 9BE. United Kingdom T: +44 (0)161 4063400 UK: Unit 2B The Quad, Butterfield Business Park, Luton, Bedfordshire, LU2 8EF.

  • Page 2: Wiring Diagram

    PAC 212 Access Controller Install Guide Wiring Diagram - 2 -...
  • Page 3 PAC 212 Access Controller Install Guide Legend for Wiring Diagram RS-485 connection Dipswitch for Reader voltage selector (12/24V or 5V, default = 12/24V) RS-485 status LEDs RS-232 status LEDs Serial Number and Barcode Door 1 LEDs Reader 1 Red 2 Brown...
  • Page 4 PAC 212 Access Controller Install Guide Introduction This document is intended for experienced engineers who are familiar with PAC products and health and safety considerations. Identification Markings Manufacturer, model identifier and input rating are given on the label attached to the unit.

  • Page 5: Installation

    PAC 212 Access Controller Install Guide Installation Please read all instructions and retain for future reference. This equipment is to be installed and serviced only by trained service personnel. Remove power to the unit before servicing the internal power supply.
  • Page 6 PAC 212 Access Controller Install Guide Features Admin PIN Each PAC 212 is supplied with a unique administrative PIN. This is derived from the last four digits of the serial number printed on the unit. Administrator token Enables access to the Admin menu. The administrator token is numbered Editor 00.

  • Page 7: Time Profile

    Determines how long a door is unlocked when a valid token is presented or RTE is pressed. Readers The PAC 212 supports 4 readers. Reader 0 and Reader 1 are SIG A and SIG B on Door 1; Reader 2 and Reader 3 are SIG A and SIG B on Door 2 respectively.

  • Page 8: Specifications And Standards

    Do not discard this product along with other household waste. It must be collected and treated separately. First Setup You will be prompted to setup the PAC 212 the first time it is switched on. To set up the PAC 212: 1. Press and hold ⓪ for 5 seconds.

  • Page 9: Use The Menu

    7.1.2 To enter the Admin menu without a token: 1. Press and hold ② for 5 seconds. 2. Enter the Admin PIN for this PAC 212, then press ↵ . 7.1.3 To enter the Editor menu: 1. Present an editor token to the PAC 212.
  • Page 10 PAC 212 Access Controller Install Guide Residential 7.3.1 Add / edit a flat 1. In the Admin menu or the Editor menu, choose Flats ①. 2. Type the number of the flat you want to add or edit (000–255), then press ↵ .
  • Page 11 PAC 212 Access Controller Install Guide Commercial 7.4.1 Add a key quickly 1. In the Admin menu or the Editor menu, choose Keys ①. 2. Present the key. The next available key number is displayed. 3. Press ↵ to add the key with this number.

  • Page 12: Time Profiles

    PAC 212 Access Controller Install Guide Each event shows door number, flat number and key colour (residential) or door number and key number (commercial). 3. To view another access event, repeat Step 2. 4. Press ↑ to exit this command.

  • Page 13: System Settings

    6. Use ①-⑦ to select or deselect the days to which this time period applies, then press ↵ . The Time Period page is displayed again. 7.11 System Settings The PAC 212 adjusts for daylight saving time automatically, using European daylight saving rules (2000/84/EC). 7.11.1 Set System Time 1.

  • Page 14: Apply Changes

    PAC 212 Access Controller Install Guide 7.12.2 Save settings, flats and / or keys to USB: 1. Insert a USB drive into the USB port of the PAC 212. 2. In the Admin menu, choose Admin › USB › Save DB ④④②.

  • Page 15: Reset To Factory Defaults

    7.16.1 Change the administrator token 1. Press and hold ⓪ for 5 seconds, then press ↵ . 2. Enter the Admin PIN for this PAC 212, then press ↵ . 3. Present the required administrator token. The PAC 212 is restarted and the settings are applied.
  • Page 16 RTE held. Reader tamper – x identifies the reader. To silence an alarm, present an administrator key or editor key to the PAC 212. To clear an alarm, remove the condition that caused the alarm. (Hard anti-passback violations or duress alarms are cleared when you silence the alarm.)
  • Page 17 PAC 212 Access Controller Install Guide One Touch™ Test Mode To speed up installation and testing, One-Touch™ testing is provided which allows the controller functionality to be tested at the controller or reader. Observation Test Action Controller Reader GREEN flashes at normal rate.
