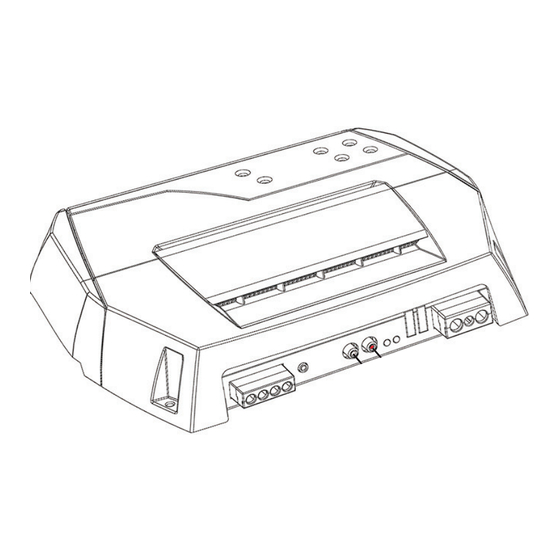

MTX Thunder TA High TA3401 Connection Manual

CONNECT POWER
1
StreetWires
Firewall Bushing
Disconnect Battery Negative (–) Cable
Prior to Installing Amplifier
Connect to Source Unit
Remote Turn-on
/Power Antenna Wire
CONNECT SPEAKERS
3
12-8 AWG
OR
12-8 AWG
8-4 AWG
16 AWG
8-4 AWG
Ground To Metal of Vehicle Ground To Metal of Vehicle Ground To Metal of Vehicle
Remove Paint Remove Paint Remove Paint
From Metal From Metal From Metal
≤2ohm
–
+
–
≤4ohm
+
–
≤4ohm
+
CONNECT SIGNAL
2
OR
CONNECT EBC
4
(EXTERNAL BASS CONTROL)
Mount EBC on
the dashboard
or within reach
Remote Turn-on
/Power Antenna Wire
(Do not use with Smart-Engage
RCA to Line Level Adapters)
additional
accessories
shown not
included
