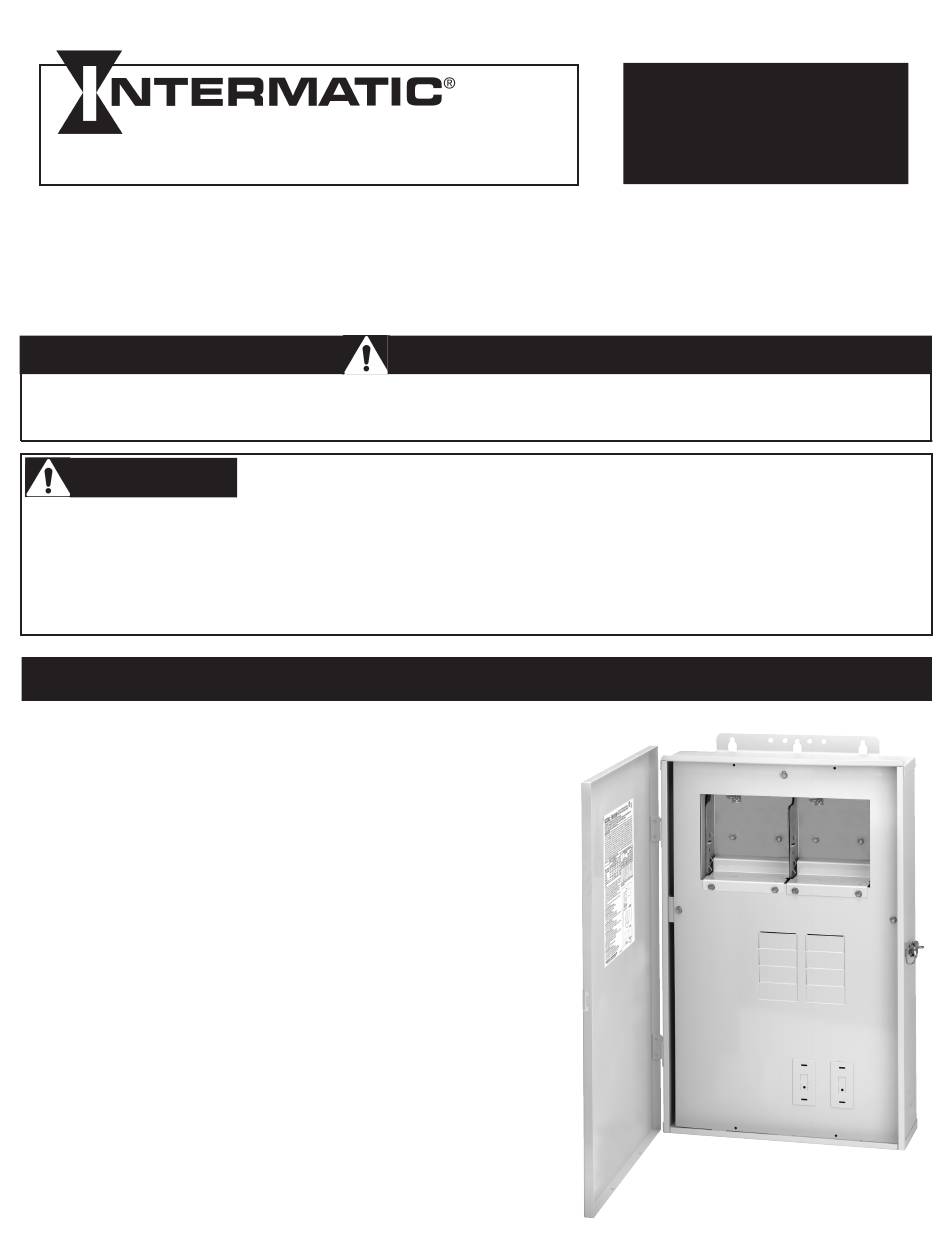

PE SERIES POOL/SPA
EQUIPMENT CONTROLS
MODEL: PE30000T3
CONTROL PANEL WITH TRANSFORMER FOR INDOOR/OUTDOOR USE
SUITABLE FOR SWIMMING POOL / SPA APPLICATIONS AND FOR DIRECT CONNECTION TO A WET-NICHE OR NO NICHE LUMINAIRE.
PANEL RATING: 80 AMP. 120/240 VOLT OR 120/208 VOLT SINGLE PHASE (THREE WIRE) AC
ALL DEVICES IN THIS CONTROL MUST BE SUPPLIED BY BRANCH CIRCUIT PROTECTORS LOCATED WITHIN THIS ENCLOSURE AND
SHALL BE OF THE SAME MANUFACTURER AND TYPE.
.
Risk of drowning!
Do not permit unsupervised children to use pool or spa.
Close supervision of children required at all times.
WARNING
Turn power off at main panel before servicing this switch or the equipment it controls. This control panel must be
installed according to the National Electrical Code and local code requirements. Use MIN 75˚C Copper conductors ONLY.
Install interchangeable circuit breakers with an interrupting current rating of 10000 symmetrical amperes, or higher.
Follow manufacturers instructions for installing and testing of ground fault circuit breakers (GFCB) and interrupters
(GFCI). Install only LISTED receptacle(s) and/or wiring device(s) inside the enclosure. When panel is outdoors, a LISTED
rainproof cover must be installed over the wiring device in the side knockouts. This control should not be connected
to any equipment which would cause bodily injury or property damage should it be activated unexpectedly.
Reinstall safety guard after wiring.
Many of today's energy efficient pools and spas utilize
the advantages of a single electrical panel, containing
all the necessary controls for the safe, efficient and
automatic operation of the pool/spa equipment.
In addition, included in this panel is a 12 Volt,
300 Watt transformer for the underwater lights.

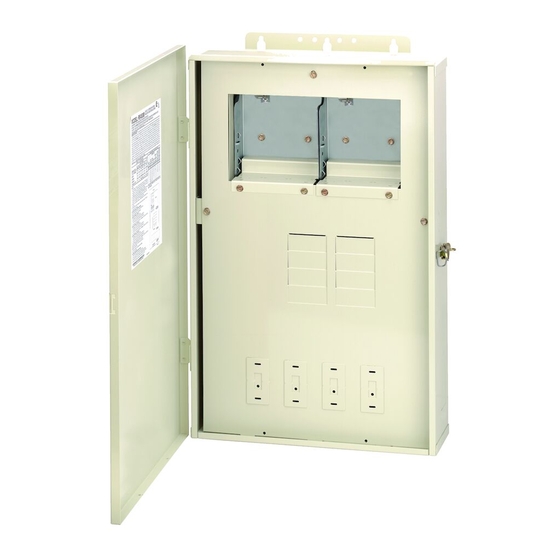

The Panel is designed for custom installations and
accepts a large variety of electronic and mechanical
controls and wireless remote controls. It also comes
standard with a breaker base for up to eight full size
circuit breakers. In addition, it has provisions to install
a wiring device inside as well as a switch or GFCI
receptacle on the outside. The two KO-s on top of
enclosure are for mounting Intermatic Radio Receivers.
PE650 on the left and PE653 must be installed on the
right.
The transformer supplied in this panel is specifically
designed to supply 12 volts to underwater pool/spa lights.
A grounded shield between the primary and secondary
winding assures safe operation and built-in circuit
protection will disconnect power to the transformer in case
of overload.
DANGER
Risk of Fire or Electrical Shock
GENERAL INFORMATION
INSTALLATION
OPERATION &
SERVICE MANUAL
