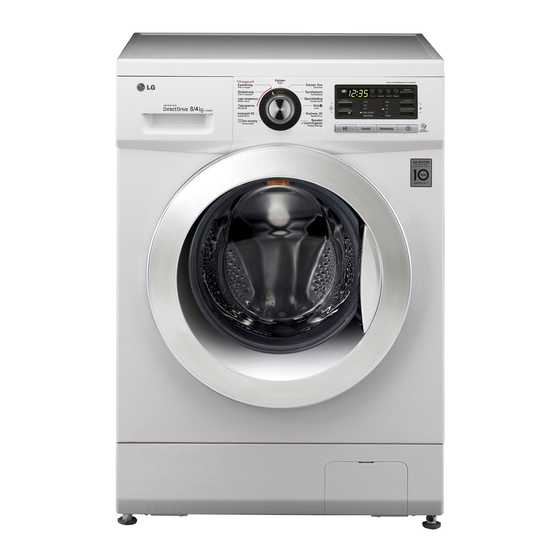

LG F1496AD1 Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Washer
  5. F1496AD1
  6. Manual

LG F1496AD1 Manual

Hide thumbs Also See for F1496AD1:
Table of Contents

Advertisement

Quick Links

WAS HING MAC HINE
S E R V IC E MA NUA L
C A UT ION
R E AD T HIS MANUAL C AR E F ULLY TO DIAG NOS E T R OUB LE S
C OR R E C T LY B E F OR E OF F E R ING S E R V IC E .
MODE L : F1496AD(P)(1~9)
webs ite : http://www.LG E s ervice.com
e-mail: http://LG E s ervice.com/techs up.html

Advertisement

Table of Contents
loading

Related Manuals for LG F1496AD1

Summary of Contents for LG F1496AD1

  • Page 1 : http://www.LG E s ervice.com e-mail: http://LG E s ervice.com/techs up.html WAS HING MAC HINE S E R V IC E MA NUA L C A UT ION R E AD T HIS MANUAL C AR E F ULLY TO DIAG NOS E T R OUB LE S C OR R E C T LY B E F OR E OF F E R ING S E R V IC E .
  • Page 2 P /No.: MF L51781539...

  • Page 3: Specification

    1. S P E C IF IC AT ION IT E M F 1496A D(P)(1~9) P OWE R S UP P LY 120V~, 60Hz P R ODUC T WE IG HT 67kg 130W WAS HING 770W S P IN E LE C T R IC IT Y DR AIN MOTOR C ONS UMP T ION S T E AM HE AT E R...

  • Page 4: F E At Ur E S & T E C Hnic Al E Xp Lanat Ion

    2. F E AT UR E S & T E C HNIC AL E XP LANAT ION 2-1. F E AT UR E S Anti Crease function With the alternate rotation of the drum, creasing in the laundry is minimized. More economical by Fuzzy Logic System FUZZY Logic System detects the amount of load and water temperature, and then determines the optimum water level and...

  • Page 5: Water Level Control

    2-2. DETERMINE WASHING TIME BY FUZZY LOGIC To get the best washing performance optimal time is determined by sensing of water temperature, selected washing temperature and laundry amount. water temperature washing time the best selected FUZZY washing rinse time washing LOGIC temperature performance...

  • Page 6: Parts Identification

    3. PAR T S IDE NT IF IC AT ION Power Plug If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or a similarly qualified Drawer person in order to (For datergent and avoid a hazard.

  • Page 7: Installation

    4. INSTALLATION INSTALLATION The appliance should be installed as follows. Check the conditions of installation area. 1. Check level ground. horizontal On raised foundations or upper level homes, the vibrations can be caused by the type of flooring. It may be necessary to move machine to a different area in the home or have the floor...
  • Page 8 Use spanner to remove transit bolts. Without removal of transit bolts Spin noise and shaking. X 4 EA Transit bolts Confirm the distance between the appliance and the wall. If the distance is less than 2cm, More than 2cm the water supply hose will kink or fold.

  • Page 9: Connect Drain Hose

    Connect Drain Hose. If the drain hose is not installed properly, the unit will not drain properly. This allows water to back flow into the unit which can cause odors. Refer to Owner Manual for proper drain hose installation. The odor could also be coming from the home’s drain to which the drain hose is attached. Laundry tub about 100 cm Hose...
  • Page 10 Check the horizontality with a level (Gage). 1 Step If washing machine legs are loose or not screwed, then screw up with the spanner wrench. Using the level, level the washing machine from front to back and side to side. A level Higher Tighten...

  • Page 11: Test Operation

    Test operation Preparation Press the power button. Press the START/PAUSE for washing. button. ·Connect the power plug to the ·In case of cotton program. outlet. ·Connect the inlet hose. Check the water heating. Check automatic reverse turn. Check the water supply. ·Press “Temp.”...
  • Page 12 5. OP E R AT ION Option Child -Lock • Dry : • Child Lock system can If you want to dry the clothes, select this button.Dry is available in Cotton,Cotton Eco,Easy Care,Intensive 60,Baby Care Program. be set and canceled by •...
  • Page 13 Time Delay & Beep ON/O LED display • Press the button when reserv • Display the estimated remaining time is needed. (Hour : Minute) to finish. • When the button is pressed, • In case of abnormal operation, error indications are displayed, maximum delay o displayed.

  • Page 14: Wiring Diagram / Pcb Layout / Program Chart

    6. WIRING DIAGRAM / PCB LAYOUT / PROGRAM CHART...
  • Page 15 PCB LAYOUT Wash Heater Dry Heater Display Power Power Relay Fan Motor DD Motor V ~ U / U ~ W / W ~ V R : 5 ~15 Thermistor Pressure Switch Display Connector Hall Sensor (5~15k Common (5~15k Common Drain Pump &...

  • Page 17: Troubleshooting

    7. T R OUB LE S HOOT ING 7-1. B E F OR E S V C C HE C K ING B efore s ervicing as k the cus tomer what the trouble is . C heck the adjus tments . (P ower s upply : 120V , R emoval of trans it bolts etc..) C heck the troubles referring to the troubles hooting.
  • Page 18 7-3. HOW TO C HE C K T HE WAT E R LE V E L F R E QUE NC Y P res s the P re was h S pin button s imultaneous ly T he digits means water level frequency. (10 kHz) ex) 241 : Water level frequency = 241 x 10 24.1 kHz...

  • Page 19: Error Display

    7-5. ERROR DISPLAY If you press the Start/Pause button in error condition, any error except will disappear and the machine will change into the pause status. In case of , if the error is not resolved within 15 sec., and in case of other errors, if the error is not resolved within 4 min., power will be turned off automatically and the error only will be blinked.
  • Page 20 7-6. TROUBLESHOOTING WITH ERROR Water Inlet Error (IE) [Note] Environmental safety check list 1. No water tap leakage & freeze. 2. No entanglement of water supply hose. 5. No the inlet filter clogged. Is the water tap closed ? Check the Water tap and open it fully .
  • Page 21 Unbalanced Error (UE) The few items of clothing will clump together Does the load lean toward one and their weight will be in one place on the drum, side, or is the load a few items? throwing the weight off during spin mode. So add some laundry to overcome UE error.
  • Page 22 Water Outlet Error (OE) Check drain hose for kink and straighten the Hose. Is the drain hose kinked ? Drain Hose Check & Clean Pump Filter. Is the Pump filter clogged ? This kind of accumulation on the drain filter not only prevents proper drainage, but also will promote bacteria growth and cause odors.
  • Page 23 Over Flow Error (FE) Replace the Inlet Valve assembly . Is the water coming in drawer continuously ? After power off for 10 sec. and power on. Does the water level over reference line and Is the water level frequency 25.5Khz or 26.1Khz ? Or does the water level over reference line and is the water level frequency 25.5Khz or 26.1Khz? Press “...
  • Page 24 Pressure Sensor S/W Error (PE) Is the Connector connected correctly to Reconnect or repair the Connector Main PCB and the Pressure Switch Or replace the Harness Or is the Harness alright ? Is the resistance of the Pressure Switch Replace the Pressure Switch out of range? [Pin1 ~ Pin3]...
  • Page 25 Door Open Error (dE) C los e the door totally. Is the door closed? Y E S Is the Door as s embly in line with door Y E S Lift up & C los e the door. s witch ? If the dE is dis played, R eplace the Door B rac ket.
  • Page 26 Thermistor (Heating) Error (tE) Is the C onnec tor connected correctly to R econnect or repair the C onnec tor. Y E S Main P C B and the T hermis tor and the Heater? Or replace the Harnes s Or is the Harnes s alright ?
  • Page 27 Motor Locked Error (LE) [P re C heck] • G entle wash cycles, such as P erm P ress, Delicates, Hand Wash, and Wool/S ilk should only be used for smaller loads. B ecause these cycles are more gentle in tumbling and spinning, putting too much in the drum can register an issue with the motor.
  • Page 28 Disassemble the Hall Sensor 1) Disassemble the hook of Hall Sensor by (-) driver. 2) Pull up Hall Sensor slowly as shown in picture. Caution If you disassemble by force,not following the directions, the hooks of stator(red circled) might broke up. Hence need change of stator assembly.
  • Page 29 Dry Heater Error (dHE) Is the C onnec tor connected correctly to R econnect or repair the C onnec tor. Main P C B and the Dry Heater F an Motor? Or replace the Harnes s Or is the Harnes s alright? Y E S Is the res is tance of the...

  • Page 30: Dry Heater Trouble

    Dry Heater Trouble After power off, is the resistance of Dry Heater out of Replace the Heater. range 33~37Ω? Thermostat closed ? Replace the Thermostat. When checking voltage between connectors(1,2) Replace the PWB assembly (main). on drying, is the voltage AC 220-240V as the figure ?

  • Page 31: Dry Fan Motor Trouble

    Dry Fan Motor Trouble Is the C onnec tor connected correctly to R econnect or repair the C onnec tor Main P C B and the Dry Heater F an Motor? Or replace the Harnes s Or is the Harnes s alright? Y E S Are the res is tance s ame between...

  • Page 32: T R Oub Le S Hoot Ing Wit Hout E R R Or C Ode S

    8. T R OUB LE S HOOT ING WIT HOUT E R R OR C ODE S No Power Is the P ower P lug connected R econnect P ower P lugfirmly. firmly to the power outlet? C heck the fus e or And is the s upply voltage res et the circuit breaker.
  • Page 33 Vibration & Noise In Spin Have all the Transit Bolts and the Base Packing Remove the Transit Bolts been removed? Base Packing. Washer Base Packing Packing Support Refer to INSTALLATION. (Page 7)

  • Page 34: Water Leak

    Water Leak 1. Water Leak from Dispenser Is the Dispenser Tray Damaged or warped? Replace the Dispenser Tray. Is detergent & softener put in Put it in the Correct Position. the correct compartment of the drawer? Only softener Reference (Amount of Detergent & Softener) Main Wash Pre Wash Detergent...
  • Page 35 2. Water Leak from Dispenser Are the gasket (seal) Clean the periphery of Gasket Door regularly. and door cleaned regularly? Is the door or gasket damaged? Replace the damaged parts. 3. Unknown – Water on Floor Are the inlet hoses loose or cracked/split? Replace the Inlet Hoses.

  • Page 43: The Exploded View Of Cabinet Assembly

    EXPLODED VIEW .THE EXPLODED VIEW OF CABINET ASSEMBLY A154 A110 A153 A140 A152 A151 A150 A101 A141 A131 A100 A102 A104 A430 A103 A130 A485 A134 A440 A410 A133 A200 A300 A303 A310 A220 A276 COLD (BLUE)
  • Page 44 F321 F462 F160 F300 F464 F310 F432 F225 F430 F220 F441 F120 A450 A455 F215 F110 F210...
  • Page 45 M105 K360 K143 K350 K351 K361 K123 F140 K411 K121 K122 K410 K125 F320 K320 K111 F466 K110 K141 K105 K140 K115 K610 K130 K135 K510 K611 K572 K571 K131 K530 F468 K570 K340 F467 K550 K520 F461 K540 K344...
  • Page 46 10-4. THE EXPLODED VIEW OF DRYER M100 M240 M130 M120 M216 M110 M210 M230 M215 M101 M220 M140...
