Crest Audio MFPLFM Quick Start Manual

Step 5: Level Adjustment
1. In some instances a slight adjustment might be required to level the TV.
2. Using a second person to help, extend the bracket out as far as it will go as shown in figure 3 and have the second person hold the TV.
3. Loosen the tension of the 4 bolts directly behind the mounting plate (as shown in figure 5) enough so you can carefully adjust the left and
right level of the TV.
4. Once the correct position has been reached tighten the bolts back up again to lock the levels position. It is important not to over tighten
the bolts.
+/- 4°
5
5 YEAR WARRANTY
Olbertz Holdings Pty Ltd ACN 010 003 933 trading as The Crest Company of 165 South Pine Road, Brendale, Queensland, 4500, Ph: 1800 812 261,
www.crest.com.au, warrants that if this Crest product purchased by you from The Crest Company or a retail outlet is found by The Crest Company to be
defective in workmanship or materials within 5 years of the date of purchase, The Crest Company will (at its election) either repair that product, replace the
product, supply an equivalent product or pay the costs of repairing or replacing the product or acquiring an equivalent product.
This limited warranty will not extend to or cover any expenses associated with removing, demounting the original product or installing the repaired, replaced
or equivalent product or all or any of its components, you must bear these expenses. It also does not cover damage or loss resulting from intentional or
unintentional misuse of, tampering with, alterations to or incorrect installation of this product or use of this product for purposes other than that for which it
is designed or in a manner inconsistent with the product's instructions. This limited warranty also does not apply to damage or loss resulting from fair wear
and tear or events beyond The Crest Company control including but not limited to natural disasters.
In order to claim under this warranty, you must contact The Crest Company and return to The Crest Company (via our nominated reply paid address) the
product and its components and proof of purchase (including the date and location of purchase) so that The Crest Company can verify the defect and
your purchase.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and
remedies which you may have under a law in relation to the goods or services to which the warranty relates.

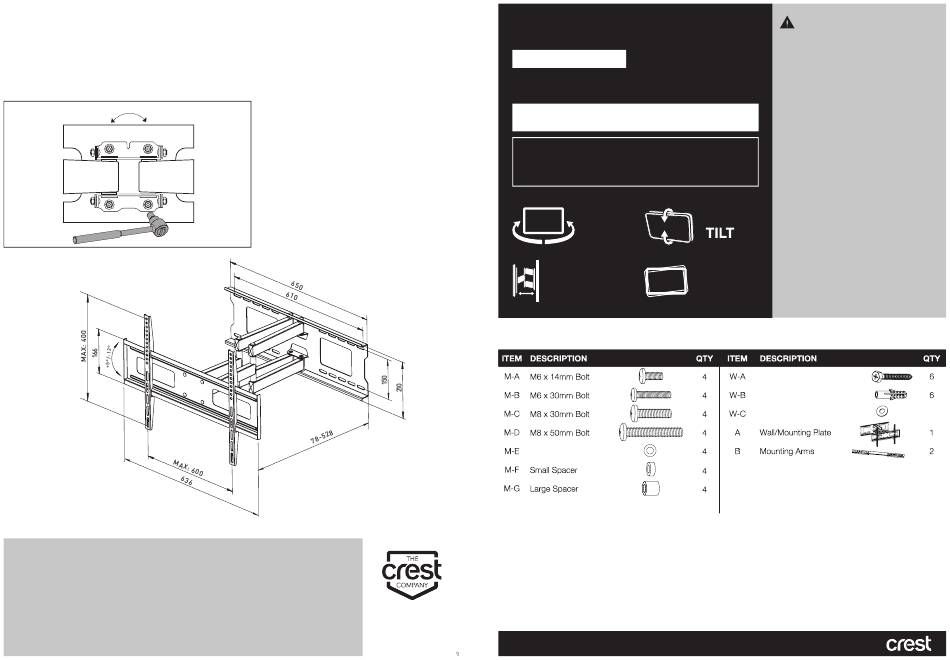

MFPLFM
FULL MOTION
TV WALL MOUNT
37"-80"
600 x 400 MAX
VESA COMPATIBILITY
100x200, 200x200, 200x300, 300x200,
300x300, 300x400, 400x300, 400x400,
UP TO 528mm
EXTEND
Hardware Kit Contents
8mm Washer
Tools Required
Proudly brought to you by:
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 4.5mm drill bit
• Stud finder
PO Box 5658 Brendale
QLD Australia 4500
• Spirit level and pencil
Customer Support
1800 812 261
www.crest.com.au
AUSTRALIAN OWNED
MEDIUM-LARGE
60kg MAX
TV WEIGHT
The maximum supported
weight is up to 60kg
-60° TO 60° -12° TO 5°
PAN
-4° TO 4°
LEVEL
ADJUSTMENT
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm Masonry drill bit
• Spirit level and pencil
• Hammer
SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with
two people.
2. Some images in this guide may vary slightly from
the actual components supplied.
3. Ensure this instruction manual is completely read
and understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed
solely in plasterboard, fibre cement and similar
surfaces.
5. This TV Wall Mount MUST be installed in sound
supporting structures such as those made of
timber, steel or masonry using appropriate
fasteners.
6. The supporting structure must be capable of
sustaining the combined weight of the TV Wall
Mount and the display otherwise the structure
must be reinforced.
7. The fasteners supplied in this hardware pack
allow for fixing into timber and masonry only. If
installing into a supporting structure made of
steel, appropriate fasteners must be used and
sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and
ensure adequate ventilation during installation.
9. If uncertain about any aspect of installation,
contact The Crest Company or an installation
professional.
.
10. Please retain these instructions for future reference
ST6x55mm Lag Bolt
Concrete Anchor 10x50mm
6mm Washer 10
