Summary of Contents for Famree Smart Cat Litter Box
- Page 1 Smart Cat Litter Box PCBM65A User Manual...
-
Page 2: Table Of Contents
BEFORE USE Cautions: 1. Please place the device on a firm and flat ground. 1. Please install and use this device according to the instructions. 2. Please add litter below MAX line after placing the device well. 2. Please use it indoors, do not place it in direct of sunlight or and fire sources. 3. -
Page 3: Ⅰ Instructions For The First Use
I INSTRUCTIONS FOR THE FIRST USE 1.3 What is in the box? Power Adapter with Anti-bite Cord x 1 Manual x 1 1.1 Unpacking: 17.7"*19.7"/4 Gallon Trash Turn over the carton to cut the tape from the bottom, then turn over the carton to Bag x 1 roll pull up the carton vertically. - Page 4 1.5 Power On: 1.4 Adding Litter: 1.5.1 Power on the device with pluging in the adapter and wait for the machine to Make sure the leveled litter height is between the MAX line and the MIN line (based self-check for about 3-8 minutes. It will automatically enter the sensing stage after on your actual need).
- Page 5 2.2.2 Press "Auto" for 2 seconds, II APP when the WiFi indicator starts flash- ing, the device is ready to be con- Flash nected. 2.1 App Installation Attention: Touch only word characters (not the picture char- Press for 2s acters) can make the device work.
- Page 6 2.2.4 Press "Next" after scanning 2.2.6 Enter APP afte connecting. thedevice. 2.2.5 Press " Next " after entering the WiFi password and wait to connect. Notice: If the network configuration fails or a timeout message is displayed, please follow the connections fix process as below: ①...
-
Page 7: Ⅲ Operating Instructions
Notice: III OPERATING INSTRUCTIONS ①Please click "Auto" on the panel or the App to turn-off the auto-sensing feature if the cat is less than 2.2 lb (1kg) or the cat is pregnant. When the device needs cleaning, you will 3.1 Auto Mode: need to click "Clean"... - Page 8 Notice: 3.2 Clean Mode: ①During the clearing process, all keys will be disabled. If you need to perform other func- Click "Clean" on the panel or the App to start clearing process. tions,please wait until the clearing process is complete. ②Extend the cleaning time in the phone App when the cat has diarrhoea.
- Page 9 3.3 Add cat litter: MAX Line Method 1: In "Auto" mode, when the adding cat litter is more than 2 lb (1kg), the "Auto" will start The amount of cat litter should not exceed Max line. flashing. After 30 minutes, the cat litter will be automatically smoothed, and the weight will be calibrated.
- Page 10 3.4 Replace litter: ①Replace the garbage bag with a new one (the original one is already full of polluted litter and bacteria) ②Make sure the remaining litter is close to the MIN line (to avoid the overflow when the bin rotates) ③Press "Replace Litter"...
- Page 11 3.5 Remove Odor: 3.6 Replace Garbage Bag: Method 1: When indicator "Full" is on, you will need to replace the garbage bag. Click "Remove Odor" on the panel or click "Odorless" on the App. Method 2: Set regular work on your App. 3.6 Replace Garbage Bag: When indicator "Full" is on, ②...
- Page 12 Notice: ①The "Full" indicator is only for reference. The "Full" indication may vary depending on the cat litter volume, density, and fluidity. You can adjust the delay of the "Full" sign on the App based on your preferences. The default is 0 (there is still a little space in the bag for garbage), and the The maximum value is 15.
- Page 13 3.7 Wash Barrel: 3.8 Lock the Panel: ① Power off the device first! Press the "Auto" and "Remove Odor" at the same time for more than 2 ② Open the buckle of the barrel compartment and lift the bin. seconds to turn on and off the "Child Lock". You can also use the "Child Lock" ③...
- Page 14 3.9 Turn On / Off the Infrared Sensor: 3.10 Various Timing Operations of The App Press "Clean" and "Replace litter" at the same time for more than 2 seconds if the device is 3.10.1 Sleep Mode When the device is placed in the bedroom, you can set in the App "Do placed in a cage or a narrow space.
-
Page 15: Ⅳ Fault Self-Check Method
3.10 Various Timing Operations of The App 3.10.2 Timer Cleaning Mode Set the device to clean regularly in the App "Clean Timing". IV FAULT SELF-CHECK METHOD 3.10.3 Timing Odor Removing: Set the device to remove odor regularly in the App "Deodo Timing". - Page 16 V FAQ Q: What kind of cat litter sand should I use? Q: Why is the weight data only about half of that of my cats? A: Mixed sand and tofu sand are preferred. Bentonite sand and mineral sand are okay, this A: Please check if the cat enters only halfway out of curiosity, or if the device is placed may affect the delay time of the "Full"...
-
Page 17: Ⅵ Product List

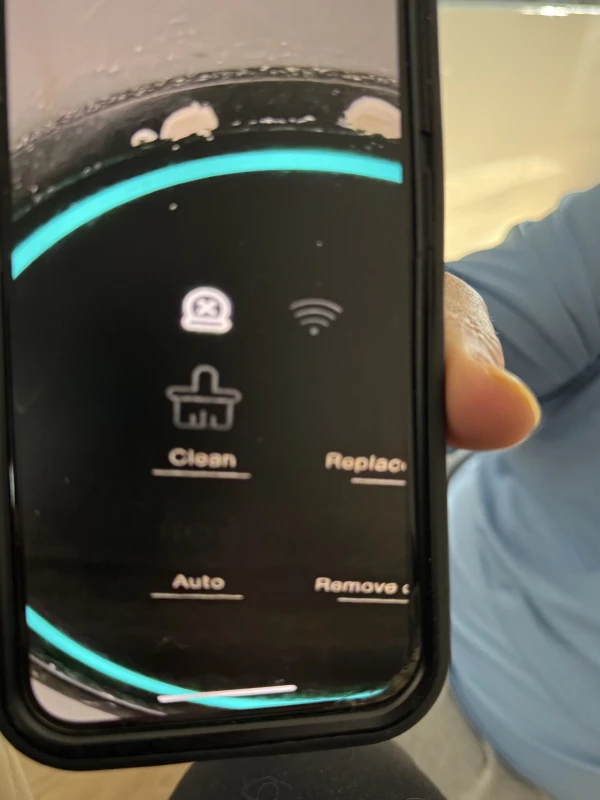

VI PRODUCT LIST VII INTRODUCTION OF CONTROL PANEL Prompt Category Function Operation Status tone Waste bin Clean Click Start cleaning immediately One ring Barrel Replace litter Press for 2″ Start replacing cat litter Long ring for 1″ Auto cleaning Click Start Auto cleaning One ring Entrance... -
Page 18: Ⅷ Circuit Diagram
Main Control Board Input DC 12V 1.5A 19.88" Display And Control Panel 18.8" 20.4" IonGenerator DC 12V 2W Product Name Product Model Whole Machine Size Smart Cat Litter Box PCBM65A 18.8"(W)×20.47"(D)×19.88"(H)mm ID:MSP-01 Rated Voltage Suggested Pet Type Rated Power DC12V Motor ≤18W... - Page 19 PLEASANT LITTER EXPERIENCE FOR BOTH CATS & CAT FANCIERS Thank you for for purchasing Famree Self Cleaning Cat Litter Box. If you have any questions or issues, please contact our customer service team for futher assistance. Email: service@famree.com Tell-Free Call: (877)-756-8666...
