Page 1

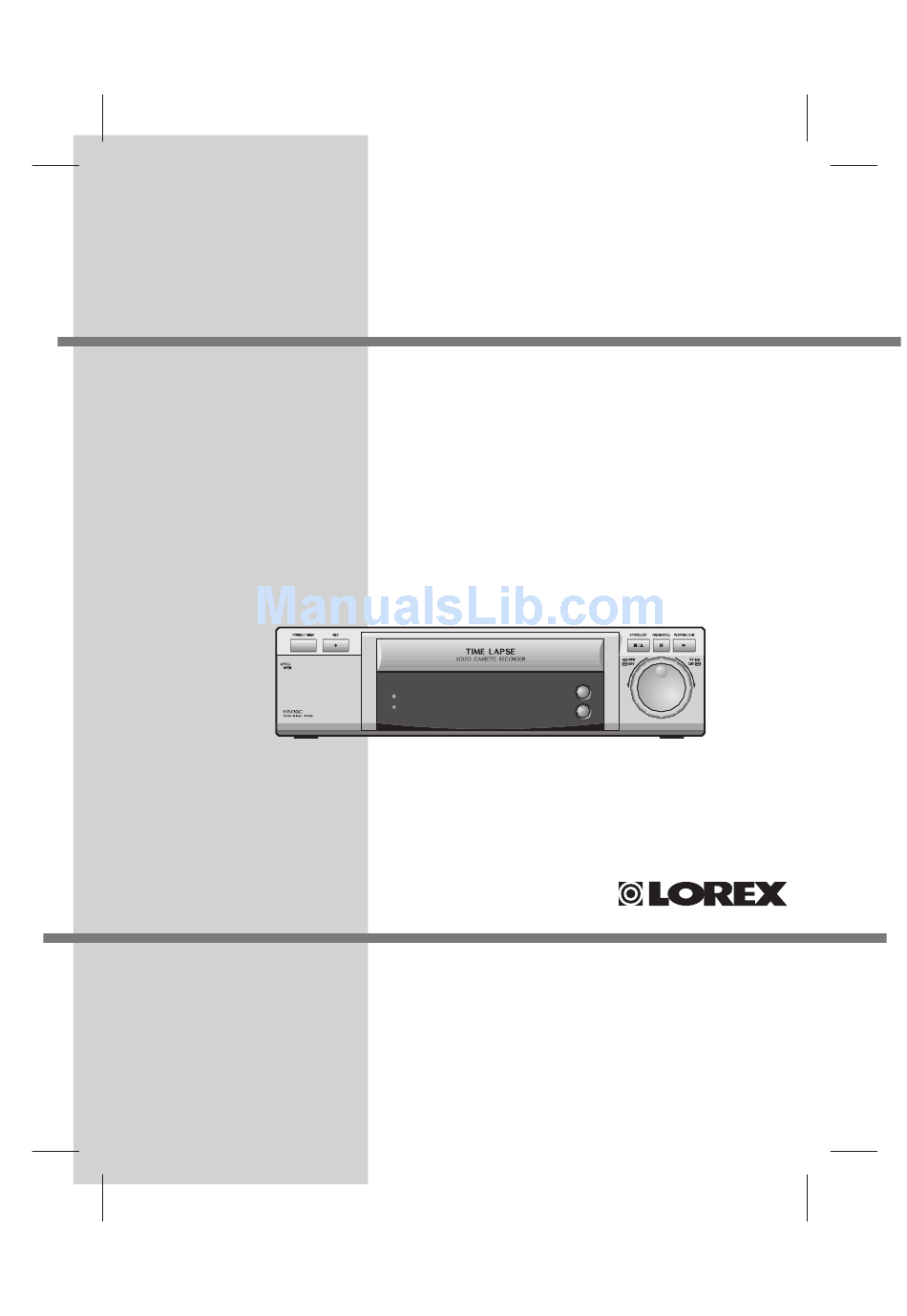

"Professional" Model: SG7965 1280 Hr Time Lapse VCR 40 Hr Real-Time with Jog Shuttle INSTRUCTION MANUAL English Version 1.0 Real Time & High Density CLOCK COUNT ALARM REMAIN KEY LOCK CLEAR BUZZER OFF LOCK OFF www.lorexcctv.com...
Under this condition, connect the power cord to the AC line, press POWER/TIMER button on and allow at least two hours for the VCR to dry out. The serial number is found on the back of this unit.
CONTROL NAMES AND LOCATIONS FRONT REMOTE C ONT R OL CLOCK COUNT ALARM REMAIN KEY LOCK CLEAR BUZZER OFF LOCK OFF...
Page 5
FRONT 1. POWER/TIMER button (Press for on; press again for off) The display window becomes brighter when the VCR is switched on. Timer function is activated when power switch is in the Off position. 2. MENU button Press to activate the Menu selection.
Page 6
11 1 SHOT REC IN 12 GND RESET 3. VIDEO IN/OUT JACK Connect the video input and output terminal. 4. RESET BUTTON Use this button to reset the VCR. 5. 12-PIN TERMINAL BLOCK Connect external signals. SIGNAL LEVEL IN/OUT INPUT VIH: 4~5V, VIL: 0~0.6V...
14. FF (Fast Forward) 15. PLAY (PLAY/REC CHECK) button (Press for on; press again for off) The display window becomes brighter when the VCR is switched on. Timer function is activated when power switch is in the Off position. UP button Press to set speed in ascending order 6H, 18H, 30H...
CONTROL NAMES AND LOCATIONS (cont’d) INDICATOR PANEL ALARM 1. TIME LAPSE VCR TIME Indication 2. ALARM Indication (ALARM REC ON indication) 3. SERIES Indication 4. RECORD Indication 5. TIMER Indication 6. CASSETTE Indication VCR FUNCTION Indication PLAYBACK INDICATION PLAYBACK PAUSE STILL...
INSTALLATION • Connect your VCR’s AUDIO/VIDEO output jacks to the A/V input jacks on back of your monitor. • Connect the CCD camera to VCR’s VIDEO input jack. VCR TO MONITOR AND CCD CAMERA CONNECTION • The cables for audio and video connection are not provided with your VCR.
Page 10
MULTIPLEXER CONNECTIONS If the multiplexer has two output terminals (MONITOR OUT, PB OUT), connect monitor to the PB OUT terminal if you want to see the playback picture. To use the multiplexer and trigger function properly, refer to the multiplexer instruction manual. HOW TO CONNECT MULTIPLEXER WITH TRIGGER INPUT TERMINAL...
GND of device to alarm input GND of VCR. SERIES RECORD CONNECTION Make all connections to the first VCR before making any connections to the other VCRs in the series. After connecting, turn on the VCRs and then select the ON: SERIES mode in REC MODE...
The following pages describe the on screen selections to be set. PREPARATION • Turn on the power of both the VCR and the monitor. • If you have a TV instead of monitor, turn on the power of TV MENU SELECTION Your VCR allows adjustment of several features.
SETTING THE VCR SET UP MENU MAIN MENU PREPARATION • Turn on the power of both the VCR and the monitor. MENU • If you have a TV instead of monitor, turn on the power of TV VCR SET UP...
• The initial SET DAY Setting is JANUARY 1, 2003. MAIN MENU PREPARATION MENU • Turn on the power of both the VCR and the monitor. VCR SET UP REC MODE SET UP • If you have a TV instead of monitor, turn on the power of TV...
• The cassette can be ejected when the STOP/EJECT button is ty, or strong magnetic fields. If the cassette is not loaded correctly, the VCR will eject the cassette automatically after approximately 3 seconds. is connected to the wall outlet.
NORMAL PLAYBACK PREPARATION • Turn on the power of both the VCR and the monitor. • If you have a TV instead of monitor, turn on the power of TV ALARM NORMAL PLAYBACK PAUSE / STILL LOCK PLAY / REC CHK STOP / EJECT matically.
• If a still picture vibrates vertically, stabilize it by pressing the LOCK PLAY / REC CHK STOP / EJECT • If the VCR is left in the STILL mode for more than 5 minutes, MENU POWER / TIMER MOVE...
Page 19
SPECIAL EFFECTS PLAYBACK (cont’d) SHUTTLE RING During Still mode... STILL (Pause) -SLOW SLOW -PLAY PLAY -PLAY X 3 PLAY X 2 -SEARCH SEARCH Rotate Shuttle Ring for variable speed adjust from Slow to REVERSE FORWARD Search in the direction chosen. Shuttle Ring NOTES: •...
During PLAYBACK or RECORDING mode... CLOCK Press the CLOCK/COUNT/REMAIN button. Whenever you press the CLOCK/COUNT/REMAIN button, time and counter are displayed alternately in the VCR indicator panel. When the COUNTER is displayed... COUNTER • Counter changes to TIME when the cassette is ejected.
NORMAL RECORDING PREPARATION • Turn on the power of both the VCR and the monitor. • If you have a TV instead of monitor, turn on the power of TV REC MODE REC TIME TRIGGER OUT 1 FIELD SERIES REPEAT OPTION : The selected time is displayed in the VCR indicator panel.
This function is used to select various options before starting a recording. • Make sure a tape is in the each VCR and the safety tab is in • Turn on the power of both the VCR and the monitor.
VCR recording. • Before series recording, refer to page 12 for Series Record • Make sure a tape is in the each VCR and the safety tab is in • SERIES recording is not available when the Timer recording •...
This function is available when the VCR is connected to an external device having an alarm output terminal. • Before alarm recording, refer to page 12 for alarm record • Make sure a tape is in the VCR and the safety tab is in place. MAIN MENU MENU...
BUZZER ALARM READY ALARM RECALL (MOVE) (SELECT) (MENU) • ALARM indicator in VCR indicator panel blinks when alarm NOTES: • When you select ALARM REC MODE ON (6H, 18H, 30H), the • You can not stop during ALARM REC MODE.
CHECK THE ALARM RECORD INFORMATION To check or cancel the Alarm Record Information, use the ALARM RECALL function. MAIN MENU MENU VCR SET UP REC MODE SET UP TIMER REC SET UP G ALARM SET UP POWER FAIL RECALL LANGUAGE ENGLISH ALARM SET UP menu will appear.
- - / - - / - - - - : - - : - - (UP) (DOWN) (CLEAR) (MENU) KEY LOCK FUNCTION • When the external alarm signal is input the VCR is activated • Press and hold LOCK OFF button for more than 3 seconds Press MENU and the main menu will appear.
• DFG Switch • DPF • When a malfunction occurs in the VCR, press the POWER/TIMER button on the front of VCR to operate normally. • An error message (Err) appears in the display continuously when any button is pressed;...
SERVICE GUIDE TABLE DESCRIPTION DRUM ASSY MOTOR CAPSTAN (D-35) BELT CAPSTAN BASE ASSY A/C HEAD F/E ARM ASSY IDLER HOLDER ASSY PINCH BAND ASSY TENSION HOUSING ASSY CAPSTAN SOFT BRAKE Reference: N: Changing G: Cleaning L: Checking Notes: • Check the running path adjustment when you change items 1, 2, 4, 5 and 10. •...
• Load cassette in direction indicated by arrow on cassette. • A cassette is already in the VCR. • Check if power indicator is lit on the VCR indicator panel. If not, • If the The VCR will not go into the •...
SPECIFICATIONS GENERAL Head System Power Source Power Consumption Back up time (clock) Dimensions (WxHxD) Operating Temperature Operating Humidity Timer Weight Tape Speed (NTSC) Tape Speed (PAL) Maximum Recording Time Tape Width Rewind Time Video Signal System(PAL) Video Signal System(NTSC) Video Input Video Output Signal to Noise Ratio Conventional audio...
