ACC1511

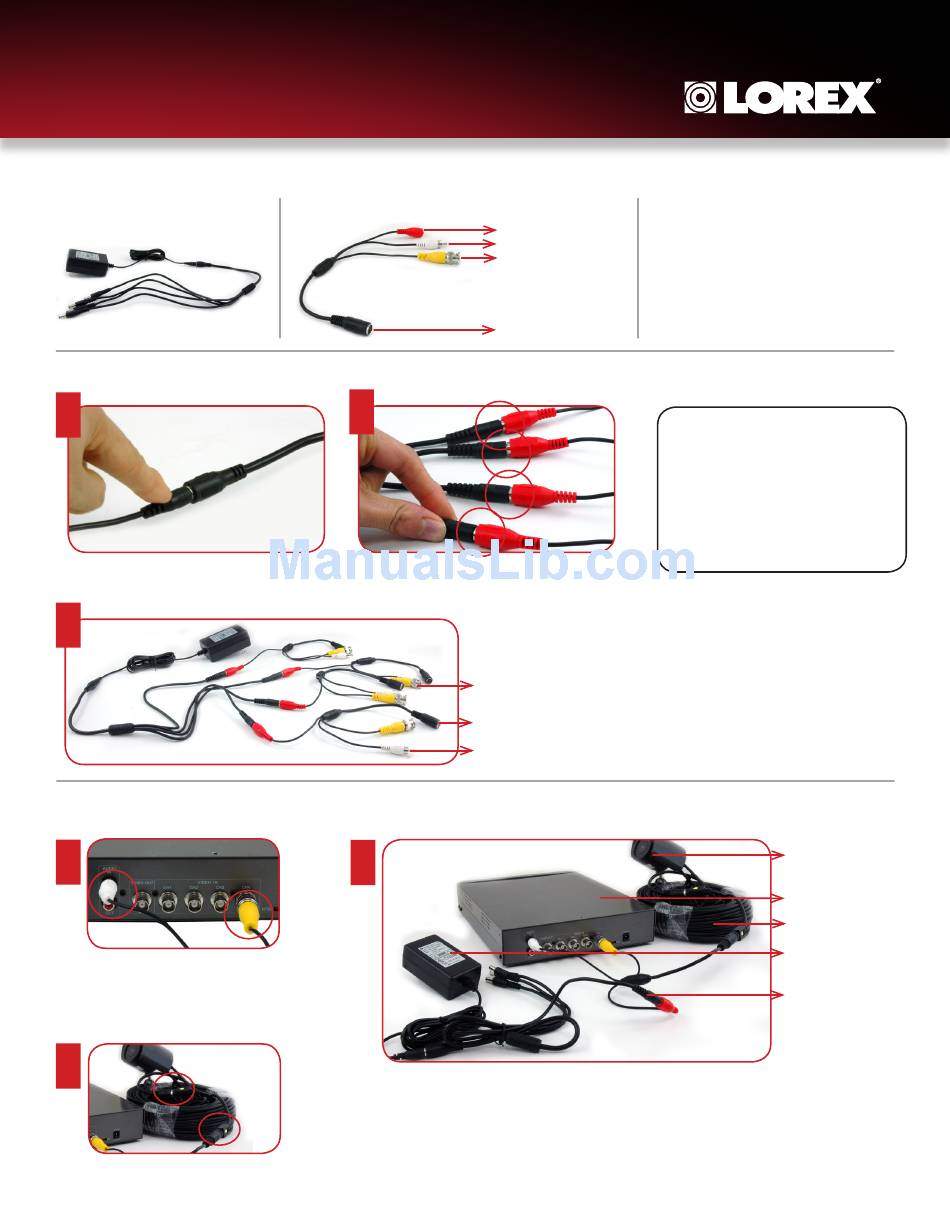

Quick Connection Guide_R1
PACkAge InCludes:
1 x 4-in-1 Power Adaptor
COnneCtIOns:
1
Connect the single end of the 4 in one
power cable to the power adaptor.
3
COnneCtIng dIn CAMerAs (nOt InCluded) tO A dVr Or OBserVAtIOn sYsteM (nOt InCluded)
1
Back of a DVR
Connect the Yellow BNC Connector
to a channel input. Connect the White
RCA Connector to an available input
(optional).
2
6-PIN DIN Camera
Connect the DIN Female to a DIN
Camera or Extension Cable.
4 x 6-PIN DIN Female to BNC Adaptor
2
Connect the 4 power connectors to the power
(female) of the 6-PIN DIN Coupler cables.
3
Full COnneCtIOn dIAgrAM
Power Female (Red)
Audio RCA Male (White)
BNC Video Male (Yellow)
6-PIN DIN Female (Black)
Connect to Observation Systems or
DVRs with BNC inputs (Yellow)
Connect to a 6-PIN DIN camera or extension cable
Connect to Audio (White) input (if desired)
FeAtures:
• Connects any Lorex camera with 6-PIN
DIN output to any DVR or Observation
System with BNC connectors.
• 4-in1 power adaptor provides power
to 4 Surveillance cameras.

sPeCIFICAtIOns

Power Adaptor:
12 V 2A
PACkAge:
UPC Code:
7 78597 15110 7
Weight:
0.42 KG / 0.9 lb
Dimensions:
8.0" x 2.9" x 1.9"
(W x H x D)
20cm x 7.5cm x 5cm
Cube:
0.02715 ft/0.00075 m
System Camera
DVR
Camera Extension Cable
4-in-1 Power Adaptor
6-PIN DIN Female
to BNC Adaptor
