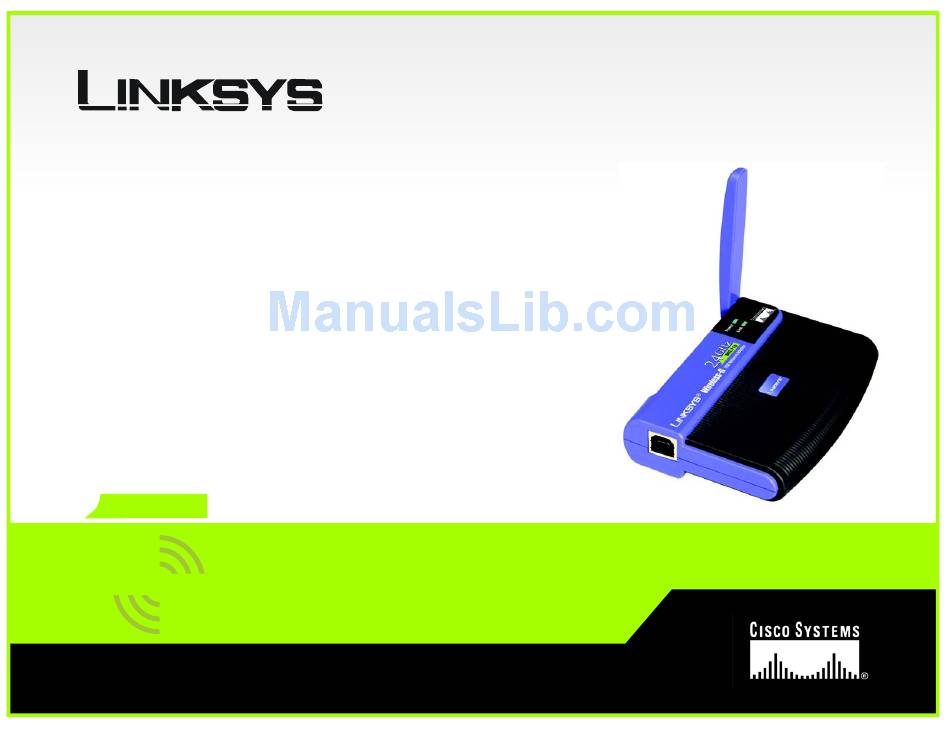

A Division of Cisco Systems, Inc.
2.4
GHz
Wireless-G
802.11g
USB Network Adapter
User Guide
WIRELESS
WUSB54G
Model No.

Advertisement

Table of Contents
loading

Related Manuals for Linksys WUSB54G

Summary of Contents for Linksys WUSB54G

  • Page 1 ® A Division of Cisco Systems, Inc. Wireless-G 802.11g USB Network Adapter User Guide WIRELESS WUSB54G Model No.
  • Page 2 Wireless-G USB Network Adapter Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved.

  • Page 3: Table Of Contents

    Chapter 2: Planning Your Wireless Network Network Topology Roaming Network Layout Chapter 3: Getting to Know the Wireless-G USB Network Adapter The USB Port The LED Indicators Chapter 4: Setting up the Wireless-G USB Network Adapter Using the Setup Wizard...
  • Page 4 Wireless-G USB Network Adapter Appendix F: Warranty Information Appendix G: Regulatory Information Appendix H: Contact Information...
  • Page 5 Figure 5-7: Using the Wall Mount - Step C Figure 6-1: Wireless Network Monitor Icon Figure 6-2: Windows XP - Use Windows XP Wireless Configuration Figure 6-3: Windows XP - Use Linksys Wireless Network Monitor Figure 6-4: Link Information Figure 6-5: More Information - Wireless Network Status...
  • Page 6 Wireless-G USB Network Adapter Figure 6-7: Site Survey Figure 6-8: WEP Key Needed for Connection Figure 6-9: PSK (Pre-Shared Key) Needed for Connection Figure 6-10: Profiles Figure 6-11: Import a Profile Figure 6-12: Export a Profile Figure 6-13: Create a New Profile...

  • Page 7: Chapter 1: Introduction

    To install, simply plug the Adapter into any available USB port. (It's compatible with both USB 1.1 and 2.0 ports, but 2.0 will yield the fastest speeds.) It gets its power through the USB connection, so no power cord is necessary.

  • Page 8: What's In This Guide

    Wireless-G USB Network Adapter What’s in this Guide? This user guide covers the steps for setting up and using the Wireless-G USB Network Adapter. • Chapter 1: Introduction This chapter describes the Adapter’s applications and this User Guide. • Chapter 2: Planning Your Wireless Network This chapter discusses a few of the basics about wireless networking.
  • Page 9 Wireless-G USB Network Adapter • Appendix G: Regulatory Information This appendix supplies the Adapter’s regulatory information. • Appendix H: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 1: Introduction What’s in this Guide?

  • Page 10: Chapter 2: Planning Your Wireless Network

    Linksys wireless adapters also provide users access to a wired network when using an access point or wireless router. An integrated wireless and wired network is called an infrastructure network. Each wireless PC in an infrastructure network can talk to any computer in a wired network infrastructure via the access point or wireless router.
  • Page 11 When you wish to connect your wired network with your wireless network, network ports on access points and wireless routers can be connected to any of Linksys's switches or routers. With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about wireless products.

  • Page 12: Chapter 3: Getting To Know The Wireless-G Usb Network Adapter

    The USB Port The Adapter’s USB port is located on the side of the Adapter. You will connect the included USB cable to this port and your PC’s USB port. All power is provided through the USB connection, so a power adapter is not needed.

  • Page 13: Chapter 4: Setting Up The Wireless-G Usb Network Adapter

    Chapter 4: Setting up the Wireless-G USB Network Adapter The Wireless-G USB Network Adapter Setup Wizard will guide you through the installation procedure. The Setup Wizard will install the driver and Wireless Network Monitor, as well as configure the Adapter.

  • Page 14: Figure 4-3: Setup Wizard's Wireless Mode Screen

    In the SSID field, enter the SSID of your wireless network. The SSID must be identical for all devices in the network. The default setting is linksys (all lowercase). Click the Next button. NOTE: Network SSIDs should be unique to your network and identical for all devices within the network.

  • Page 15: Figure 4-5: Setup Wizard's Wireless Security Screen

    16 alphanumeric characters. This passphrase must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network.

  • Page 16: Figure 4-7: Setup Wizard's Wireless Security - Psk Using Tkip Screen

    The longer and more complex your Passphrase is, the more secure your network will be. Click the Next button to continue. Click the Back button to return to the previous screen. Chapter 4: Setting up the Wireless-G USB Network Adapter Using the Setup Wizard Figure 4-7: Setup Wizard’s Wireless Security -...

  • Page 17: Figure 4-9: Setup Wizard's Wireless Security - Psk + Radius Using Eap-Tls Screen

    Select the type of encryption, TKIP or AES, from the Encryption drop-down menu. Click the Next button to continue. Click the Back button to return to the previous screen. Chapter 4: Setting up the Wireless-G USB Network Adapter Using the Setup Wizard Figure 4-9: Setup Wizard’s Wireless Security - PSK + RADIUS Using EAP-TLS Screen Figure 4-10: Setup Wizard’s Wireless Security -...

  • Page 18: Figure 4-11: Setup Wizard's Wireless Security - Radius Using Eap-Tls Screen

    Click the Next button to continue. Click the Back button to return to the previous screen. Chapter 4: Setting up the Wireless-G USB Network Adapter Using the Setup Wizard Figure 4-11: Setup Wizard’s Wireless Security - RADIUS Using EAP-TLS Screen Figure 4-12: Setup Wizard’s Wireless Security -...

  • Page 19: Figure 4-13: Setup Wizard's Check Settings Screen

    8. At this point, you may see a Digital Signature Not Found screen indicating that a digital signature was not found. The Adapter’s software has been tested and found to work successfully with Windows 2000. Click the Yes button to continue.

  • Page 20: Chapter 5: Connecting The Wireless-G Usb Network Adapter

    Windows 2000. Click the Yes button to continue the installation. 5. Raise the antenna. Make sure the antenna points straight up into the air, at a 90º angle from the Adapter. This will ensure optimum wireless operating range and performance.

  • Page 21: Using The Adapter's Wall Mount

    1. Attach the separate adhesive strip of velcro to the wall where you will be mounting the Adapter. 2. To attach the Wall Mount to the Adapter, slide the Wall Mount into the grooves on the back panel of Adapter, as shown in Steps A, B, and C.

  • Page 22: Chapter 6: Using The Wireless Network Monitor

    Using the Wireless Network Monitor Icon After installing the Adapter, the Wireless-G USB Network Adapter Wireless Monitor icon will appear in your system tray. If the Wireless Network Monitor is enabled, then the icon will be green. If the Wireless Network Monitor is disabled or the Adapter is not connected, then the icon will be gray.

  • Page 23: Accessing The Wireless Network Monitor

    The Link Information screen displays network mode, signal strength, and link quality information about the current connection. It also provides a button to click for additional status information. Ad-Hoc Mode or Infrastructure Mode - The screen indicates whether the Adapter is currently working in ad- Figure 6-4: Link Information hoc or infrastructure mode.

  • Page 24: Figure 6-5: More Information - Wireless Network Status

    IP Address - The IP Address of the Adapter is displayed here. Subnet Mask - The Subnet Mask of the Adapter is shown here. Default Gateway - The Default Gateway address of the Adapter is displayed here. DNS - This is the DNS address of the Adapter.

  • Page 25: Figure 6-6: More Information-Network Statistics

    The Wireless Networks Statistics screen provides statistics on your current network settings. Transmit Rate - This is the data transfer rate of the current connection. (In Auto mode, the Adapter dynamically shifts to the fastest data transfer rate possible at any given time.) Receive Rate - This is the rate at which data is received.

  • Page 26: Site Survey

    The Site Survey screen displays a list of infrastructure and ad-hoc networks available for connection in the table on the left. This table shows the network’s SSID, Channel, and the quality of the wireless signal the Adapter is receiving. You may click SSID, CH (Channel), or Signal, to sort by that field.

  • Page 27: Profiles

    Wireless Mode - This is the mode of the wireless network currently in use. Transfer Rate - The Adapter is set to Auto mode, so it will dynamically shift to the fastest data transfer rate possible at any given time.

  • Page 28: Creating A New Profile

    IP Address - This IP Address must be unique to your network. Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired network’s Subnet Mask. Default Gateway - Enter the IP address of your network’s Gateway here.

  • Page 29: Figure 6-16: Wireless Mode For New Profile

    Wireless-G USB Network Adapter 4. The Wireless Mode screen shows a choice of two wireless modes. Click the Infrastructure Mode radio button if you want your wireless computers to communicate with computers on your wired network via a wireless access point. Click the Ad-Hoc Mode radio button if you want multiple wireless computers to communicate directly with each other.

  • Page 30: Figure 6-18: Wireless Security For New Profile

    16 alphanumeric characters. This passphrase must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network.

  • Page 31: Figure 6-20: Wireless Security - Psk For New Profile

    Wireless-G USB Network Adapter PSK offers two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, TKIP or AES, for the Encryption Type. Then enter a Passphrase that is 8-63 characters in length. Encryption - Select the type of algorithm you want to use, TKIP or AES, for the Encryption Type.

  • Page 32: Figure 6-21: Wireless Security - Psk + Radius Using Eap-Tls For New Profile

    Wireless-G USB Network Adapter PSK + RADIUS PSK + RADIUS features a Pre-Shared Key used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) PSK + RADIUS offers two encryption methods, TKIP and AES, with dynamic encryption keys, as well as two authentication methods, EAP-TLS and EAP-PEAP.

  • Page 33: Figure 6-23: Wireless Security - Radius Using Eap-Tls For New Profile

    Wireless-G USB Network Adapter RADIUS RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) RADIUS offers two authentication types: EAP-TLS and EAP-PEAP. Authentication - Select the authentication method your network is using, EAP-TLS or EAP-PEAP.

  • Page 34: Figure 6-25: Confirm New Settings For New Profile

    Wireless-G USB Network Adapter 8. The Confirm New Settings screen will appear next and show the new settings. To save the new settings, click the Save button. To edit the new settings, click the Back button. To exit the Wireless Network Monitor, click Exit.

  • Page 35: Appendix A: Troubleshooting

    Wireless-G USB Network Adapter. Read the description below to solve your problems. If you can't find an answer here, check the Linksys website at www.linksys.com.

  • Page 36: Frequently Asked Questions

    Wireless-G USB Network Adapter Frequently Asked Questions Can I run an application from a remote computer over the wireless network? This will depend on whether or not the application is designed to be used over a network. Consult the application’s user guide to determine if it supports operation over a network.
  • Page 37 Wireless-G USB Network Adapter What is ad-hoc mode? When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to communicate directly with each other. The ad-hoc wireless network will not communicate with any wired network. What is infrastructure mode? When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a wired network through a wireless access point.
  • Page 38 Wireless-G USB Network Adapter the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

  • Page 39: Appendix B: Wireless Security

    Wireless-G USB Network Adapter Appendix B: Wireless Security Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of Linksys products provide several network security features, but they require specific action on your part for implementation.
  • Page 40 This includes hackers. So, don’t broadcast the SSID. Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is “linksys”.) Hackers know these defaults and can check these against your network. Change your SSID to something unique and not something related to your company or the networking products you use.
  • Page 41 These security recommendations should help keep your mind at ease while you are enjoying the most flexible and convenient technology Linksys has to offer. Appendix B: Wireless Security Security Threats Facing Wireless Networks...

  • Page 42: Appendix C: Windows Help

    Wireless-G USB Network Adapter Appendix C: Windows Help Almost all wireless products require Microsoft Windows. Windows is the most used operating system in the world and comes with many features that help make networking easier. These features can be accessed through Windows Help and are described in this appendix.

  • Page 43: Appendix D: Glossary

    Also used to expand the range of a wireless network. Adapter - A device that adds network functionality to your PC. Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of an access point.
  • Page 44 Wireless-G USB Network Adapter Buffer - A shared or assigned memory area that is used to support and coordinate different computing and networking activities so one isn't held up by the other. Byte - A unit of data that is usually eight bits long Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the Internet.
  • Page 45 Wireless-G USB Network Adapter DTIM (Delivery Traffic Indication Message) - A message included in data packets that can increase wireless efficiency. Dynamic IP Address - A temporary IP address assigned by a DHCP server. EAP (Extensible Authentication Protocol) - A general authentication protocol used to control network access.
  • Page 46 Wireless-G USB Network Adapter IEEE (The Institute of Electrical and Electronics Engineers) - An independent institute that develops networking standards. Infrastructure - A wireless network that is bridged to a wired network via an access point. IP (Internet Protocol) - A protocol used to send data over a network.
  • Page 47 Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products. Ping (Packet INternet Groper) - An Internet utility used to determine whether a particular IP address is online.
  • Page 48 Wireless-G USB Network Adapter Software - Instructions for the computer. A series of instructions that performs a particular task is called a “program”. SOHO (Small Office/Home Office) - Market segment of professionals who work at home or in small offices.
  • Page 49 Wireless-G USB Network Adapter UDP (User Datagram Protocol) - A network protocol for transmitting data that does not require acknowledgement from the recipient of the data that is sent. Upgrade - To replace existing software or firmware with a newer version.

  • Page 50: Appendix E: Specifications

    Wireless-G USB Network Adapter Appendix E: Specifications Model WUSB54G Standards IEEE 802.11b, 802.11g, USB 1.1, USB 2.0 Port USB Port Channels 802.11b/802.11g 11 Channels (USA, Canada) 13 Channels (Europe) 14 Channels (Japan) LEDs Power, Link 15 - 17 dBm (Typical) @ 11Mbps CCK,...
  • Page 51 Wireless-G USB Network Adapter Operating Humidity 10% to 85%, Non-Condensing Storage Humidity 5% to 90%, Non-Condensing Appendix E: Specifications...

  • Page 52: Appendix F: Warranty Information

    Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates.

  • Page 53: Appendix G: Regulatory Information

    Canadian regulations. EC DECLARATION OF CONFORMITY (EUROPE) Linksys declares that this product conforms to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC: EN 301 489-1, 301 489-17 General EMC requirements for Radio equipment.
  • Page 54 Linksys vakuuttaa täten että dieses produkt tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden ehtojen mukainen. Linksys Group déclare que le produit est conforme aux conditions essentielles et aux dispositions relatives à la directive 1999/5/EC.

  • Page 55: Appendix H: Contact Information

    Can't find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at: Or fax your request in to: If you experience problems with any Linksys product,...
