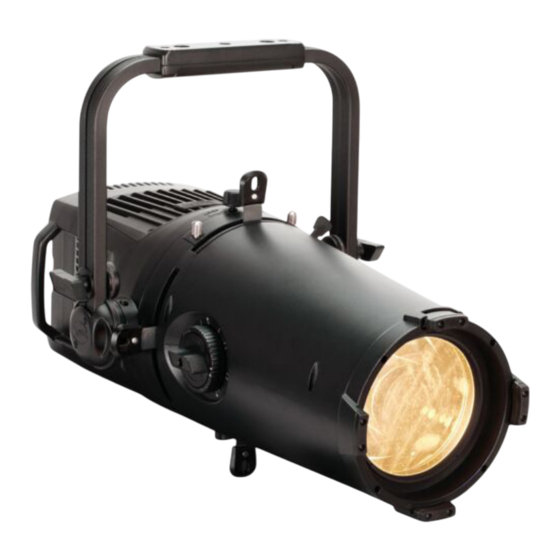

Elation KL PROFILE FC KLP412 User Manual

Elation KL PROFILE FC KLP412 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KL PROFILE FC
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Elation KL PROFILE FC KLP412

Summary of Contents for Elation KL PROFILE FC KLP412

  • Page 1 KL PROFILE FC User Manual...
  • Page 2 ©2022 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFES- SIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    TA B L E O F C O N T E N T S General Information Limited Warranty (USA Only) Safety Precautions Maintenance Guidelines Overview Installation Instructions Gobos Accessory Installation Zoom and Focus Operation Framing Operation Barrel Rotation Iris Operation Remote Device Management (RDM) Control Panel System Menu...

  • Page 4: General Information

    Designer Gobo Set, 10 Gobos (x1) Rotating Gobo Holder, installed in fixture (x1) 7.5” Gel Frame (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Limited Warranty (Usa Only)

    No accessories should be shipped with the product. If any accesso- ries are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 6: Safety Precautions

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth opera- tion, it is important to follow all instructions and guidelines in this manual. Elation Profes- sional is not responsible for injuries and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y P R E C A U T I O N S • DO NOT expose the fixture to rain or moisture, or spill liquids into or onto the fixture! The fixture is intended for use in dry, indoor environments only! •...

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an autho- rized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Overview

    O V E R V I E W Display Enter Down Blade Mounting Manual Button Screen Button Button Adjustment Yoke Iris Encoder Knob Mode Button Blade Adjustment Service Port Fuse Blade Adjustment Power Power Focus Zoom Safety Lock Lock Cable Loop Gobo Yoke...

  • Page 10: Installation Instructions

    I N S TA L L AT I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyro- technics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installa- tions.
  • Page 11 I N S TA L L AT I O N I N S T R U C T I O N S CLAMP INSTALLATION: Insert a bolt of appropriate size and rating for the desired clamp (not included) through the mounting hole of the clamp (not included), and then insert it into the center hole on the top of the mounting yoke.
  • Page 12 I N S TA L L AT I O N I N S T R U C T I O N S OMEGA BRACKETS: Insert a bolt of appropriate size and rating for the desired clamp through hole of mounting clamp, then insert the bolt into the center hole of your omega bracket. The bolt should pass through both the clamp and the omega bracket.
  • Page 13 I N S TA L L AT I O N I N S T R U C T I O N S RIGGING Overhead rigging requires extensive experience, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture, among other skills.
  • Page 14 LEDs. This issue is not specific only to Elation lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.
  • Page 15 D E S I G N E R G O B O S E T This fixture includes a set of 10 uniquely-patterned glass gobos that can be used for a vari- ety of show applications. Gobos should be stored in the included packaging when not installed in the fixture, and should only be handled by the edges.

  • Page 16: Gobos

    G O B O S GOBO DIMENSIONS Gobo I.D Gobo O.D. Thickness 25mm 30mm ( 1.1mm -0.2 Please note the following restrictions: • The minimum temperature rating of the gobos is 850° F (450° C). • The gobo must not have a broken or uneven edge, pinholes, scrapes in the coating, or other flaws, as these will seriously compromise the integrity of the gobo.
  • Page 17 G O B O S INSTALLATION 1. Switch the fixture off and allow at least 15 minutes for the fixture to cool. Use safety gloves to protect your hands, as well. Unscrew the fast lock screws, then remove the gobo access panel and carefully remove the gobo holder.

  • Page 18: Accessory Installation

    A C C E S S O R Y I N S TA L L AT I O N LENS REPLACEMENT The fixture can be fitted with multiple types of lenses. Follow the guidelines below to remove or install a lens. 1.

  • Page 19: Zoom And Focus Operation

    Z O O M A N D F O C U S O P E R AT I O N The zoom and focus functions of this unit are each operated manually by a pair of com- pound knobs located on the sides of the barrel. The first knob (shown below) controls the zoom function, while the second knob controls the focus, and each two-piece knob is labeled accordingly.

  • Page 20: Framing Operation

    F R A M I N G O P E R AT I O N The KL Profile FC features four adjustable framing blades. Set the Zoom angle using the knob on the right side of the fixture (when fixture is oriented upright and viewed from the back) to adjust the light beam to the desired size.

  • Page 21: Barrel Rotation

    B A R R E L R O TAT I O N The lens barrel of this fixture can be rotated to adjust the framed shape, or removed for cleaning. To rotate the lens barrel, loosen (but do not remove) the two screws located at the top and bottom of the barrel.

  • Page 22: Iris Operation

    I R I S O P E R AT I O N The integrated iris can be used in conjunction with the zoom control knob to adjust the size of the light beam. It can also be used to block off parts of a gobo image, if desired. The iris handle is located near the framing adjustment handle on the top of the unit.

  • Page 23: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used through- out the entire system, including DMX data splitters and wireless systems.

  • Page 24: Control Panel

    C O N T R O L P A N E L The fixture includes an easy to navigate system menu. The control panel display located on the side of the fixture (illustrated below) provides access to the main system menu where all necessary system adjustments are made to the fixture.

  • Page 25: System Menu

    S Y S T E M M E N U ELATION KL PROFILE FC SYSTEM MENU Supports Software Versions: 1.01 Features subject to change without notice. Rotation direction (clockwise/counter-clockwise) and control of effects depend on head orientation and pan/tilt settings.
  • Page 26 S Y S T E M M E N U Linear Square Dim Curves Square Inverse S-Curve 900Hz - 1500Hz, 2500Hz, 4000Hz, LED Refresh Rate 5000Hz, 6000Hz, 10KHz, 15KHz, 20KHz, Default = 1200Hz 25KHz LED Power Limit 100% Auto High PERSONALITY Fan Mode (continued)

  • Page 27: Fan Control And Low Noise Operation

    F A N C O N T R O L A N D L O W N O I S E O P E R AT I O N This fixture is a high-performance fixture suited for many applications. For noise critical environments like Theater, Opera or Orchestra Halls, it offers various operation modes to remove any distraction for the audience and performers.

  • Page 28: Encoder Modes

    E N C O D E R M O D E S MODE PARAMETER VALUES RESOLUTION DEFAULT DIMMER Intensity 0% to 100% Intensity 0% to 100% Indexing: 1 degree 0 degrees to 360 degrees INT GOBO Clockwise rotation, fast to slow Gobo 180 degrees Rotation Stop...

  • Page 29: Dmx Traits

    D M X T R A I T S ELATION KL PROFILE FC DMX CHANNEL TRAITS Supports Software Versions: 1.0.1 Features subject to change without notice. Rotation direction (clockwise/counter-clockwise) and control of effects depends on head orientation and pan/tilt settings.
  • Page 30 D M X T R A I T S CHANNEL FUNCTION Default Snap VALUES Inten. Comp Green Shift Idle 001 - 127 Full Minus Green to Neutral Neutral White 129 - 255 Neutral to Full Plus Green CTC Crossfade 001 - 254 No function Color Mix Gobo Index and Rotation 000 - 127 Gobo Indexing...
  • Page 31 D M X T R A I T S CHANNEL FUNCTION Default Snap VALUES Inten. Comp Dimmer Delay Time 0.1s 0.2s 0.3s 0.4s 0.5s 0.6s 0.7s 0.8s 0.9s 1.0s 1.5s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s 9.0s 10.0s 142 - 255 Idle Control 000 - 039 Idle 040 - 044 Fan Mode Studio...
  • Page 32 D M X T R A I T S CHANNEL FUNCTION Default Snap VALUES Inten. Comp Refresh Rate (Hz) (continued) 1000 1010 1020 1030 1040 1050 1060 1070 1080 1090 1100 1110 1120 1130 1140 1150 1160 1170 1180 1190 1200 1210 1220...
  • Page 33 D M X T R A I T S CHANNEL FUNCTION Default Snap VALUES Inten. Comp Refresh Rate (Hz) (continued) 1400 1410 1420 1430 1440 1450 1460 1470 1480 1490 1500 2500 4000 5000 6000 10000 15000 20000 25000 169 - 200 Idle 201 - 210 Dimmer Curve Linear 211 - 220 Dimmer Curve Square 221 - 230 Dimmer Curve Inverse Square...

  • Page 34: Cto Table

    C T O TA B L E DMX VALUE COLOR TEMP (K) DMX VALUE COLOR TEMP (K) 2400 5500 2500 5600 2600 5700 2700 5800 2800 5900 2900 6000 3000 6100 3100 6200 3200 6300 3300 6400 3400 6500 3500 6600 3600 6700...

  • Page 35: Virtual Colors Table

    V I R T U A L C O L O R S TA B L E Value Filter Number Name Value Filter Number Name Pale Yellow Medium Purple Straw Lavender Gold Tint Palace Blue Spring Yellow Dark Blue Medium Yellow Medium Blue Yellow Deep Blue...

  • Page 36: Dimmer Curves

    D I M M E R C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)

  • Page 37: Software Updates

    PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. ELATION C-LOADER An Elation C-Loader can be used to update the fixture to the latest software. Please visit the C-Loader product page at the Elation web site and download the product manual for step by step instructions.

  • Page 38: Error Codes

    E R R O R C O D E S ERROR CODE DESCRIPTION Fan Error These messages will appear if there is a fan and/or tempera- ture malfunction. Temp Error Note: Error Codes are subject to change without notice.

  • Page 39: Specifications

    S P E C I F I C AT I O N S SOURCE 305W 6,500K RGBMA LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Condi- tions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

  • Page 40: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S 15.4in (390mm) 10.2in (260mm) 13.1in (334mm) 11.0in (279mm) 15.4in (390mm) 4.2in (107mm) ø 0.5in (13mm)
