Linksys SPA2102 Quick Installation

Package Contents
• Phone Adapter with Router
• 5 V Power Adapter
• RJ-45 Ethernet Cable
• RJ-11 Phone Cable (not
included with all models)
• Power Adapter
• Quick Installation

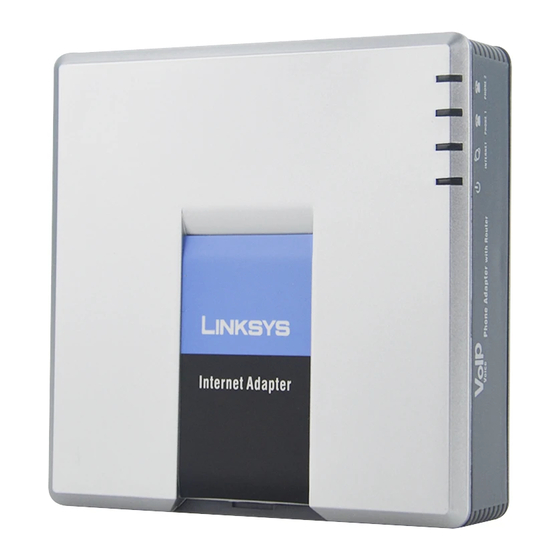

Phone Adapter with Router
Quick Installation
Voice
SPA2102
Model No. Model No.
Before You Begin
Make sure you have the following:
• An active Internet connection
• An active Internet phone service account and its settings
• A cable/DSL modem
• One computer for configuration of the Phone Adapter
• An analog telephone or fax machine with an RJ-11 phone cable
1
Connect the Phone Adapter
A
Power off your network
devices, including your
modem and PC.
B
Connect one end of an
RJ-11 phone cable to the
Phone Adapter's PHONE 1
port. Connect the other end
to your analog telephone or
fax machine.
B
IMPORTANT:
Do not connect the
PHONE port to a telephone wall jack.
Make sure you only connect a
telephone or fax machine to the
PHONE port. Otherwise, the Phone
Adapter or the telephone wiring in
your home or office may be
damaged.
C
Repeat Step B with the
PHONE 2 port if you have an
additional telephone or fax
machine to connect.
D
Connect one end of an
Ethernet network cable
(included) to the ETHERNET
port of the Phone Adapter.
Connect the other end to
the Ethernet port of your PC.
D
E
Connect one end of a
different Ethernet network
cable to the INTERNET port
of the Phone Adapter.
Connect the other end to
your cable/DSL modem.
E
F
Power on the cable/DSL
modem.
G
Connect the included
power adapter to the
Phone Adapter's power
port, and then plug the
power adapter into an
electrical outlet. The power
G
LED on the front panel will
light up as soon as the
Phone Adapter powers on.
H
Power on your PC.
NOTE: Make sure your PC's
Ethernet adapter is set to obtain an IP
address automatically. For more
information, refer to Windows Help.
2
Configure the Phone Adapter
A
Launch the web browser on
the PC.
B
Enter http://192.168.0.1/
advanced in the Address
field (192.168.0.1 is the
default local IP address of
the Phone Adapter). Then
press the Enter key.
C
If your Internet Telephony
Service Provider (ITSP) did
not supply a password, you
will not see a login screen.
Proceed to step D.
If your ITSP supplied a
password, you will see a
User
login screen. In the
Name field, enter user, the
default user name for user
access (this cannot be
C
changed). Then enter the
password supplied by your
ITSP .
D
The Router - Status screen
will appear. Click the WAN
Setup tab.
D
E
Proceed to the appropriate
instructions for your Internet
Connection Type: DHCP ,
Static IP , or PPPoE.
DHCP
1 Select DHCP for the
Connection Type.
2 If you use a cable modem,
you may need to configure
the MAC Clone Settings.
E
(Contact your ISP for more
information.)
Enable MAC Clone Service.
If your service uses a MAC Clone Settings
specific PC MAC address,
then select yes from the
Enable MAC Clone Service
setting. Then enter the PC's
MAC address in the Cloned
MAC Address field.
3 Click Submit All Changes.
Static IP
Static IP
1 Select Static IP for the
Connection Type.
2 In the Static IP Settings
section, enter the IP
address in the Static IP field,
the subnet mask in the
NetMask
field, and the
default gateway IP address
in the Gateway field.
