Installing Memory
Warning: Exercise extreme care when installing or removing DIMM modules to prevent
any possible damage.
Memory Support
The X10DRi/X10DRi-T supports up to 1 TB of DDR4-2133/1866/1600/1333 RDIMM
ECC memory (or 2 TB of LRDIMMs). Use memory modules of the same type
and speed. See the following tables for memory installation. Please refer to the
Supermicro web site for possible updates to supported memory.
DIMM Installation
Installing Memory Modules
1. Insert the desired number of DIMMs into the memory slots starting with DIMM
#P1-DIMMA1. When populating two DIMM modules within a channel, always
start with Bank1 first. For optimal memory performance, please install a pair
(or pairs) of memory modules of the same type and speed with a maximum of
12 modules (see the Memory Installation Table below).
2. Insert each DIMM module vertically into its slot. Pay attention to the notch
along the bottom of the module to avoid installing incorrectly (see Figure 5-3).
3. Gently press down on the DIMM module until it snaps into place in the slot.
Repeat for all modules.
Release Tab
Socket Key

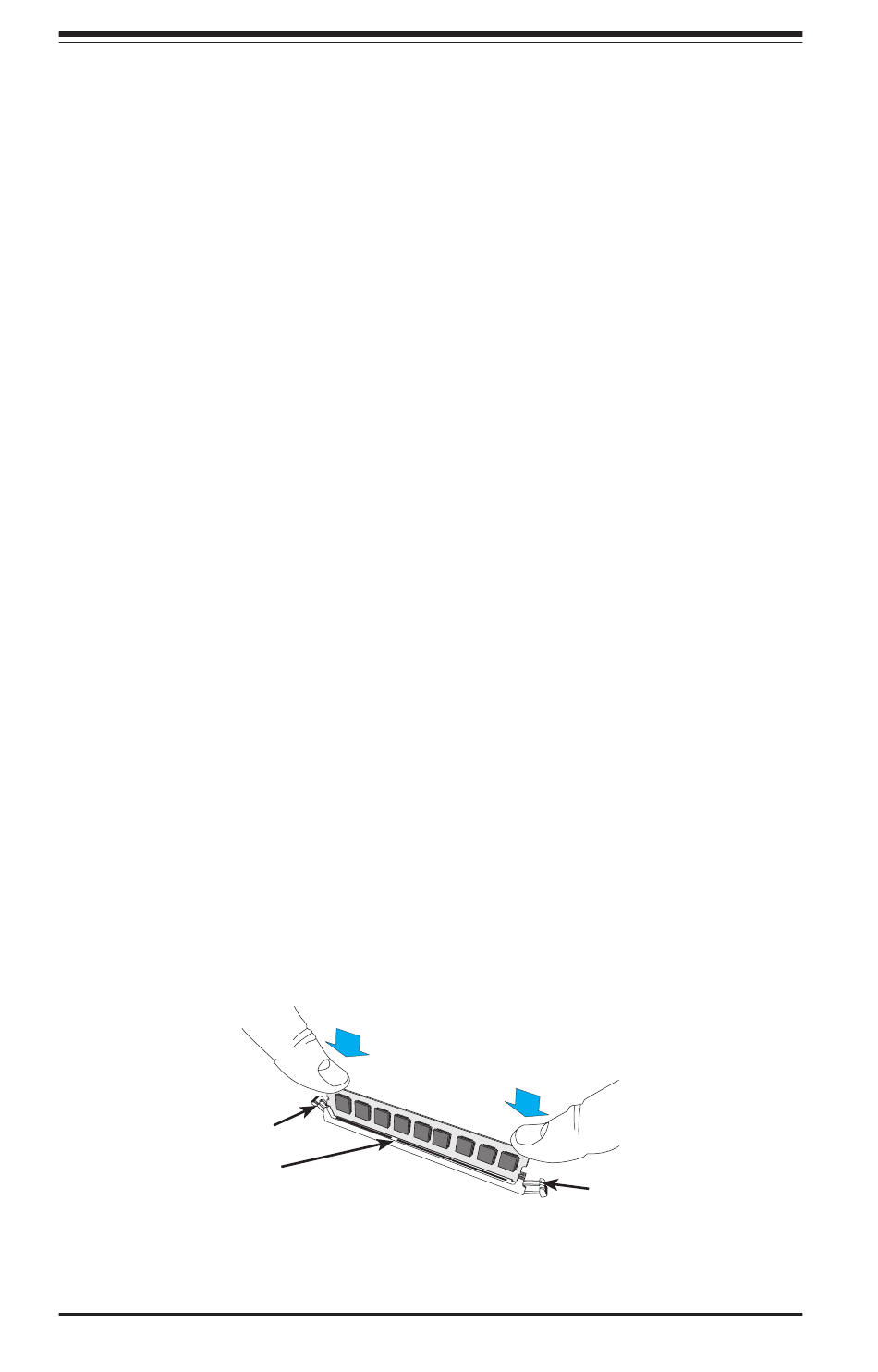

Figure 5-3. DIMM Installation
5-8
Release Tab
