Operation

Front Panel LEDs

CAUTION: Replace fuses
only when the power cord
is detached from the am-
plifier and with the type
and size of fuses listed on
the amplifier rear panel.

Remote Trigger

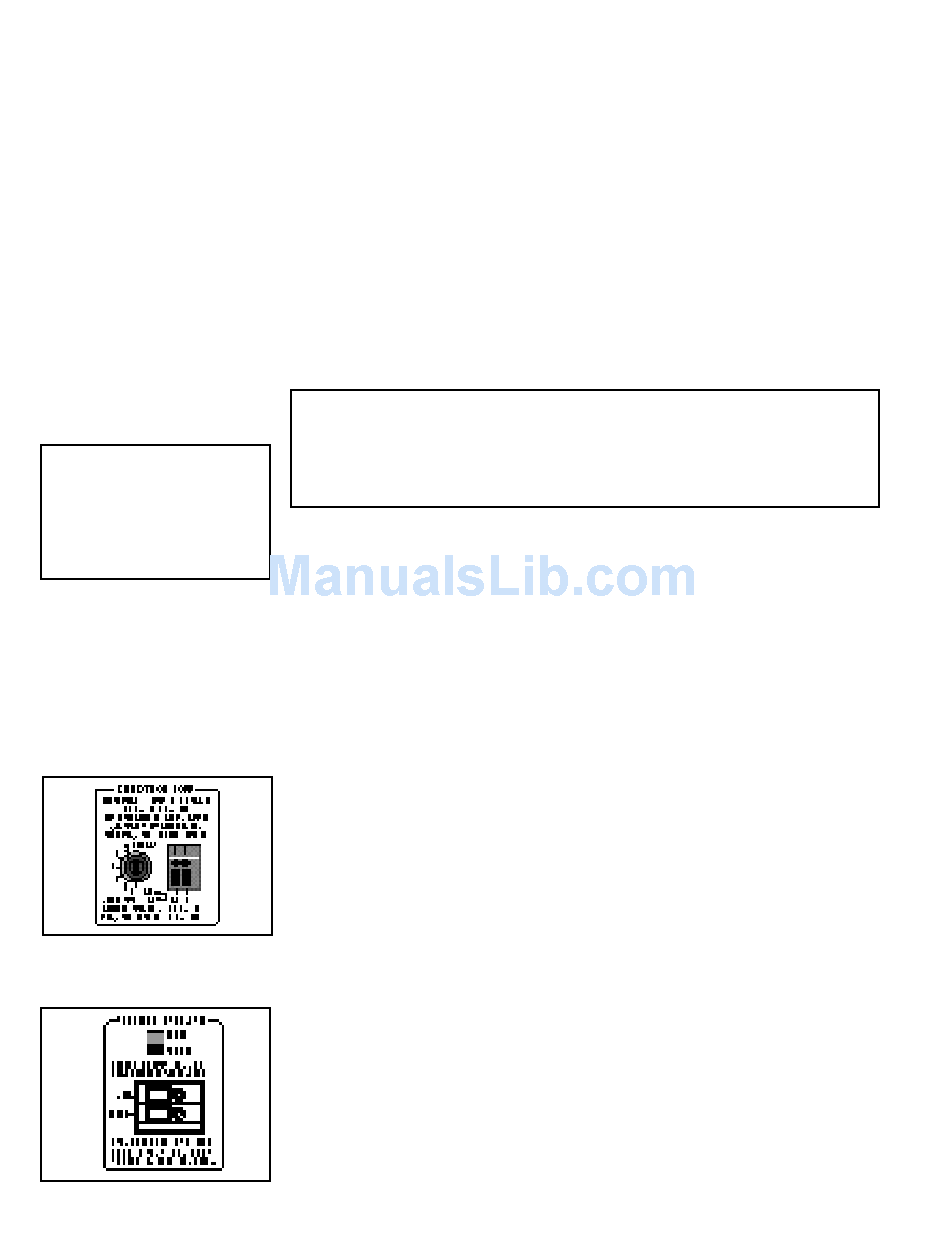

Remote Trigger configuration on the
212, 225, 312 and 501.
Remote Trigger configuration on
the 512.
6
All amplifiers in the Lexicon NT Series are equipped with sophisticated com-
parator circuits which detect sources of signal distortion including clipping,
excessive DC or supersonic signals, and short circuits in the cabling. Multi-
function LEDs on the front panel are provided to alert you to various opera-
tional states of the amplifier.
In normal operation, the front panel LEDs will be lit green, indicating that
power is on and the unit is in normal operation. The LEDs will light yellow when
the amplifier is at the threshold of clipping. Red indicates actual overload or
distortion. Turn the volume down immediately! — The speaker you save may
be your own!
NOTE: The Lexicon NT Series amplifiers are quite powerful and can
damage almost any speaker if used carelessly. Lexicon is not respon-
sible for speaker damage nor is it reasonable to expect the speaker
manufacturer to honor warranty claims on speakers that have been so
abused.
When the amplifier is turned off, it is normal for the individual LEDs to dim at
differing rates, sometimes changing color as well. If one or more LEDs fail to
light up, disconnect the power cord and check the fuses next to the power cord.
The Lexicon DC-1 Digital Controller provides a low voltage trigger signal when
in operation. This signal can be used to turn on as many as 4 amplifiers
whenever you turn on your processor. (Contact Lexicon if you need to turn on
more than 4 amplifiers.)
The timing of the Turn ON function is controlled by a six-position rotary switch
on the amplifier. The delay function is provided to allow sequential power-up
of multiple amplifiers, minimizing potential power line disruptions by stagger-
ing the Turn ON times. At the 0 setting, the amplifier will turn on immediately
when it receives the 5V trigger signal. Positions 1-4 will give delays of approxi-
mately 1-4 seconds, respectively, before power up.
The input trigger circuit is completely solid-state, and draws 33mA during the
maximum delay (4 seconds), and 16mA when ON. It will accept signals from
3.8-20V. To connect a trigger signal, loosen the small screw in the round hole
adjacent to the rectangular wire terminal opening. Strip off a few millimeters of
wire insulation, and insert the bare wire into the rectangular opening. Tighten
the screw, and make sure that the wire is held captive.
Wire multiple amplifier triggers in parallel. Common "zip cord" wire is
adequate. (If you find that using audiophile cable for the trigger signal sounds
better, feel free to use it, just don't tell anyone else.)
The 512 remote power trigger does not provide the delay function. The ampli-
fier can be powered up by applying 4-12 Volts (AC or DC of either polarity)
connected to the terminals of the jack. The input current remains at less than 3ma
regardless of voltage. Power can be turned off at any time via the front panel
Power switch.
