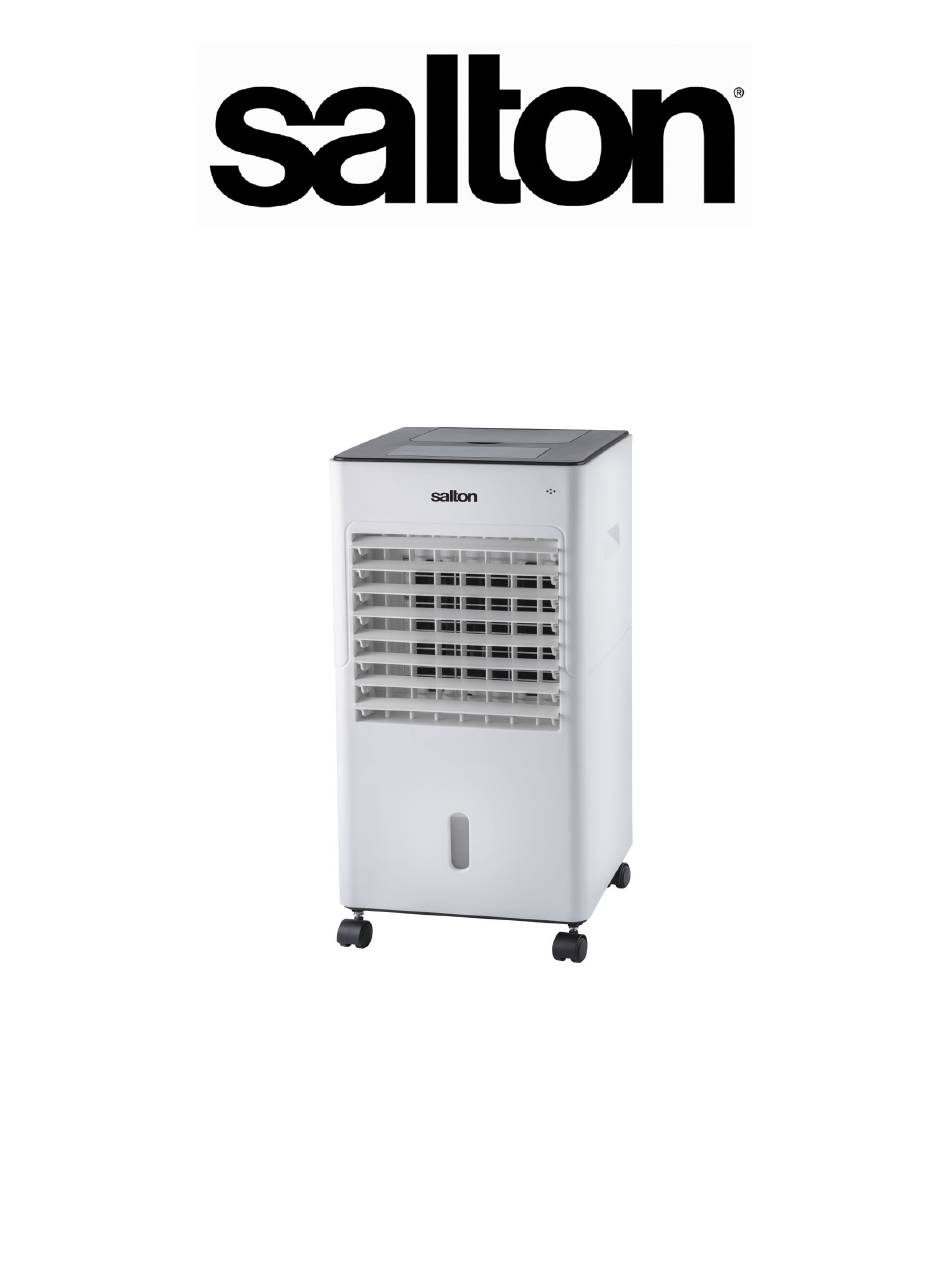

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. SAC11 6L PORTABLE AIR COOLER...
-
Page 2: Important Safeguards
Thank you for purchasing our Salton Portable Air Cooler. Please read the instructions carefully before using and keep safe for future reference. The following instructions will allow you to use this product to its maximum performance. IMPORTANT SAFEGUARDS When using your Salton Air Cooler, basic precautions should always be followed including the following: 1. - Page 3 13. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorized service agent. 14. To avoid vibration, place the air cooler on a smooth level surface. Do not put the unit on an inclined or in an unbalanced position.
-
Page 4: Specifications
• Start the air cooler when the room is still cool. • Ensure that there is always water in the cooler. SPECIFICATIONS Model No SAC11 Rated Voltage 220-240V~ Rated Frequency 50/60Hz... -
Page 5: Parts Diagram
PARTS DIAGRAM A- Manual Louver frame B- Front Panel C- Filter D- Power Cord E- Castors F- Rear Panel G- Power cord storage H- Water tank I- Water fill cover J- Control Panel K- Ice pack Control panel:... - Page 6 OPERATING INSTRUCTIONS Note: The vanes in front of the air cooler need to be in the open position before switching the unit on. Operating modes 1. MODE: When the appliance is on, press the “MODE” button until the corresponding icon lights up. The mode is cycled as below.
- Page 7 7. ECO: Once the Eco mode is selected the indicator light will switch on. 8. The temperature and timer will be shown on the same display screen. The ambient temperature is displayed when the power is turned on, and the corresponding icon lights up.
-
Page 8: Cleaning And Maintainance
Do not overfill the reservoir of the water tank - water could spill over the sides of the tank and into the cooler’s operating mechanisms. Using the ice boxes • Ensure that the ice boxes are filled with water, but no more than two-thirds full. - Page 9 Cleaning and emptying the water tank • Disconnect the power supply. • Rotate the small knob on the back panel upward to partially release the water tank (DO NOT REMOVE IT COMPLETELY). • Before the water tank can be completely removed from the air cooler, the locking mechanism that is holding the pump in place needs to be released so the pump can be detached.
-
Page 10: Troubleshooting
• Once the pump is detached and the water tank released, the water tank can be emptied and cleaned. • The tank can be washed and with dishwashing liquid but must be thoroughly rinsed and dried thereafter. Alternatively, a damp cloth can be used to remove dirt and clean the tank. -
Page 11: Servicing The Appliance
SERVICING THE APPLIANCE There are no user serviceable parts in this appliance. If the air cooler is not operating correctly, please check the following: • You have followed the instructions correctly. • That the unit has been wired correctly and that the wall socket is switched on. - Page 12 This will be deducted from any refund paid to the customer. HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG) NATIONAL CONTACT NO. 087 245 0029 JOHANNESBURG TEL NO. (011) 490-9600 CAPE TOWN TEL NO. (021) 552-5161 DURBAN TEL NO. (031) 303-1163 www.homeoflivingbrands.com www.salton.co.za...
