Summary of Contents for La Crosse Technology S74177

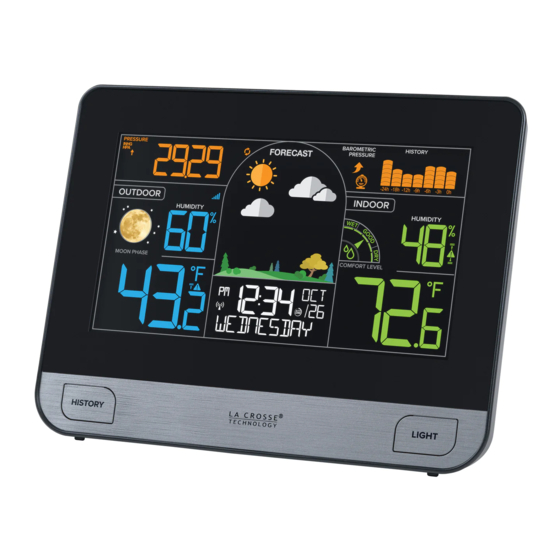

- Page 1 Wireless Weather Station with Atomic Time + Date SET UP GUIDE MODEL: S74177...
-
Page 2: Table Of Contents
Table of Contents TEMPERATURE/HUMIDITY BASICS APPENDIX Temperature & Humidity Power Up Stay In Touch Button Functions Icons We’re Here to Help Settings Menu History Records Specifications Heat Index and Dew Point Atomic Time Coin Cell Battery Customizable Alerts Adjustable Backlight Warnings Auto-Dim Settings Extra Sensor Area... -
Page 3: Power Up
Power Jack on the back of the station. Next, remove the Insulation Tab from the station’s Battery Compartment. 3. Once the sensor is reading your stations, place it outside in a shaded location to protect it from the sun’s heat. Watch our sensor mounting video: bit.ly/th_sensor_mounting Outdoor Sensor Weather Station TX141TH-Bv4 S74177... -
Page 4: Button Functions
Button Functions Hold until the display changes, to enter Alert Settings. ALERTS Alerts: Press and release to move to next item. Press and release to view Pressure or Extra Sensors (if added), or scroll EXTRA through all extra sensors and pressure. Hold to search for all Extra Sensors. -
Page 5: Settings Menu
Settings Menu 1. Hold the button until the display changes, to enter the Settings Menu. 2. Press and release the buttons to adjust values. 3. Press and release the button to confirm values and move to the next setting. 4. Press and release the LIGHT button at any time to save and exit. -
Page 6: Atomic Time
Language: The language selected in this menu will control other menu items, as well as your full weekday readout. Atomic OFF: When Atomic OFF is selected, you will move directly to 12/24 Hour setting. DST: Select Automatic ON for correct daylight saving time adjustments. Weekday: Will set automatically when your Year, Month, and Date are set. -
Page 7: Auto-Dim Settings
Auto-Dim Settings Program your display to automatically dim during preselected times. 1. Hold the LIGHT button until the display changes, to enter the Auto-Dim Settings Menu. 2. Press and release the buttons to turn the Auto-Dim feature on or off. Press LIGHT to confirm. -
Page 8: Moon Phase
Moon Phase The moon phase is based on the Lunar Calendar and the year, month, and date settings. Small Waxing Large Waxing First Small Waxing Large Waxing Moon Crescent Crescent Quarter Gibbous Gibbous Last Full Large Waning Small Waning Large Waning Small Waning Moon Gibbous... -
Page 9: Forecast Icons
Forecast Icons FORECAST • The forecast icons use the station’s internal barometer to predict conditions to come within the next 12 hours. • Allow 7-10 days for station calibration for most accurate forecasts. • The Snow Icon will show when temperatures are below FORECAST 32°F (0°C) and rain or storms are predicted. -
Page 10: Temperature & Humidity
Temperature & Humidity Icons BAROMETRIC BAROMETRIC PRESSURE PRESSURE HUMIDITY HUMIDITY MOON PHASE COMFORT LEVEL 2. RECEPTION ICON 1. LOW BATTERY ICON 3. MOON PHASE Indicates if the station is Low Battery Sensor Current Moon Phase receiving data from the sensor. 6. -
Page 11: History Records
History Records From normal time display, press and release the HISTORY button to toggle through indoor/outdoor temperature and humidity records with time and date stamps. Records Viewing Order BAROMETRIC PRESSURE • Outdoor High Temperature • Outdoor Low Temperature • Outdoor High Humidity HUMIDITY HUMIDITY •... -
Page 12: Customizable Alerts
Customizable Alerts Setting Custom Alerts 1. Hold the ALERTS button until the display BAROMETRIC PRESSURE changes to enter the Alert Settings Menu. HUMIDITY HUMIDITY 2. Press and release the buttons to MOON PHASE COMFORT LEVEL activate/deactivate and adjust alerts settings. Press ALERTS to confirm your selection. -
Page 13: Extra Sensor Area
Extra Sensor Area This station can display data for an add-on Rain Gauge as well as up to 3 additional Temp & Humidity Sensors. These readings will all appear in the upper left section of the LCD in place of the pressure reading. Rain Temperature/Humidity Add Extra Sensors:... -
Page 14: Search For Outdoor
Search for Outdoor Sensor If you are seeing “NO” or dashes for your outdoor readings, please try the following steps: 1. Hold the TEMP button to search for your outdoor sensor. The Reception Indicator will begin to animate. 2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next to the display and remove power (adapter and batteries) from the sensor and station. -
Page 15: Stay In Touch
Stay in Touch! Ask questions, watch setup videos, and provide feedback on our social media outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram. We’re Here to Help If you require additional assistance, get in touch with our friendly customer support team based in La Crosse, WI. -
Page 16: Specifications
Specifications Weather Station (S74177) Outdoor Sensor (TX141TH-Bv4) Temperature Range: 32ºF to 122ºF Temperature Range: (0ºC to 50ºC) -40°F to 140°F Humidity Range: 10% - 99% RH (-40°C to 60°C) Relative Pressure Range: Humidity Range: 10% - 99% RH 23.62 to 32.48 inHg... -
Page 17: Coin Cell Battery
Coin Cell Battery Warning Care & Maintenance Replace the Coin Cell Battery When batteries of different brand or type are used Use a coin to turn the battery cover to the left to together, or new and old batteries are used together, remove it. -
Page 18: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 19: California Statement
For more information, go to: www.P65Warnings.ca.gov Warranty & Patents La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S. -
Page 20: Double Warranty Offer
DOUBLE YOUR WARRANTY Scan Here Scan the QR code above or visit bit.ly/s74177_register to register your product and double the standard 1-year warranty for free by opting to receive occasional product emails.
