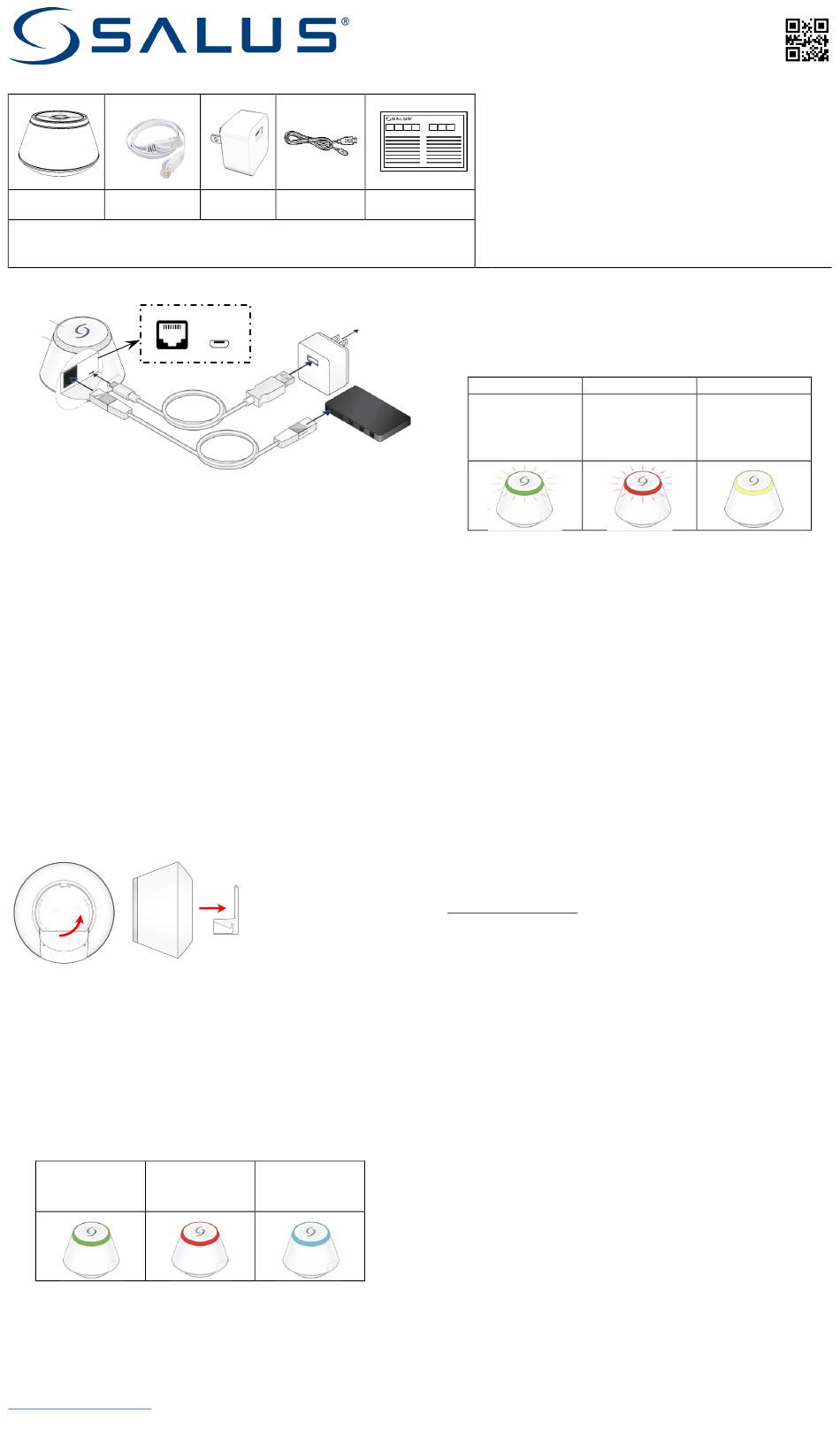

Salus SG888ZB Installation & User Manual

I B
N THE OX
Gateway Ethernet Cable
Module
N : Additional equipment may be required due to building construction or
OTE
materials, or other radio interference that may reduce the radio range.
Ethernet
Multi Button
Port
LED
Ring
I
NTRODUCTION
The Gateway, functioning as a Zigbee Co-Ordinator, is the primary
component of a Zigbee system. The Gateway creates the Zigbee
network, serves as the central hub for Zigbee communications, and
creates a bridge to the internet and SALUS Smart Home Cloud. The
Gateway hosts a flexible 'Rules engine' that allows users to create
'Automations' that allow data and/or functions from one device, to be
used as part of custom control sequences on other devices, using
simple, If/Then and And/Or logic.
C , C ,
ONTROLS ONNECTIONS AND
The Multi button on top of the Gateway is used to initiate various
modes. These are, to identify devices on the network, to Pair
compatible devices to the network, and to reset the Gateway to factory
default settings.
The LED Ring will turn different colors to indicate the Gateway status.
The Ethernet Port and Micro USB power port are located under the
port cover.
C G
ONNECTING THE ATEWAY
To access the network and power ports, remove the port cover.
Connect the network cable first. Plug one end of the Ethernet cable
into the Gateway, the other end into an internet router (provided by
others).
Next plug the micro USB end of the USB cable into the Gateway port
and plug the other end into the USB power adapter, or USB power
adapter rated 5V @ 1A
G
ATEWAY INITIALIZATION
After power is applied, the Gateway will go through an initialization
process. The LED ring provides an indication of the connection status.
Green – during initial Red – connected to
power up internet, connecting to
SALUS Technical Support:
support@salusinc.com
USB USB Power
Adapter Cable
Micro USB
Power Port
USB Power Adapter
USB to
Micro USB
cable
Ethernet
Internet router
cable
(supplied by others)
I
NDICATORS
Blue – connected to
Smart Home Cloud,
Cloud server initialization complete
Universal Gateway (SG888ZB)
Installation/User Guide
S
AFETY
Read these instructions before installing and using the
Gateway and keep this guide in a safe place for future
reference.
• Verify compatibility with your connected home system
before installation.
• Follow all instructions provided by your connected home
manufacturer regarding the addition of devices to your
Installation / User
Guide connected home system. An authorized, qualified installer
may be required.
Salus accepts no responsibility for damage caused by not
following these instructions
U
SER ACTIONS
The Gateway can be placed in various states either manually, using the
Multi button, or through the SALUS Smart Home App, which is
available on Apple or Google App stores.
Press and release
Green flashing –
Gateway is in identify
mode. Connected
devices will flash
L G
OCATING THE
The Gateway must be placed in an area where it can receive power
through the 5V micro-USB port, and initially, an Ethernet port. Once
activated using the SALUS Smart Home App, the Gateway may be
connected to a 2.4GHz WiFi network allowing it to be placed in a more
convenient location.
For best network coverage, the Gateway should be placed in a central
location. Typical coverage inside is 100-foot (30m) radius around the
Gateway. Wall, floor, and ceiling construction may reduce the effective
coverage area. Devices that function as Routers or Repeaters may be
used to extend the network coverage.
It is best to place the Gateway in a location away from devices that may
generate significant electrical interference.
U G
SING THE ATEWAY
While the Gateway can operate in a stand-alone mode, it is most often
connected to the SALUS Smart Home Cloud allowing monitoring and
control to be done using the SALUS Smart Home App. In stand-alone
mode the user can initiate Join, Identify, and Factory Reset
commands. When connected to the SALUS Cloud the Smart Home
App provides the user interface for provisioning, monitoring and
control of the Gateway and devices connected to it.
Stand-alone operation
Pressing the Multi button for longer than 3 seconds but less than 10
seconds, places the Gateway in Join mode, the LED ring flashes Red.
When Join is active, other devices also in Join mode, to attach to the
network created by the Gateway. Once Joined, these devices may now
communicate and interact with other devices on the network. The
Gateway will remain in the Join mode until terminated by pressing the
Multi button for 3 seconds and the LED ring tuns Blue.
Refer to the individual device instructions for how to initiate the Join
mode for each device. On initial power up, or after a Factory Reset,
most devices will default to the Join mode.
Pressing the Multi button momentarily will cause the LED ring to flash
Green and place the Gateway in Identify mode. In Identify mode, all
connected devices (except Water Leak, Temperature, and
Door/Window sensors) will flash their display or LED to indicate they
are associated with the Gateway.
Pressing the Multi button for longer than 10 seconds but less than 13
seconds, will cause the LED to turn steady Yellow and initiate a Factory
Reset of the Gateway. A Factory Reset clears all the network
connections, devices Joined to the Gateway, and Automation rules and
resets the Gateway to Factory default settings. The Factory Reset
should only be done if the system is configured incorrectly or is
unresponsive.
I
NSTRUCTIONS
.
Press for 3 seconds
Red flashing – Gateway
is in Join mode allowing
other devices to Join the
network
ATEWAY
Press for 10+ seconds
Steady Yellow –
Gateway will be reset to
factory default settings
and rebooting.
