• Read and follow this instruction
WARNING
sheet, and all manuals and labels
provided with your power tool.
• Always wear personal protective equipment (PPE)
according to the chemical manufacturer's instruc-
tions. Always wear proper eye protection marked
to comply with ANSI Z87.1.
•When using an attachment with larger-capacity
battery packs, use the shoulder strap to reduce
user fatigue and help in maintaining control of the
tool during use.
•Always turn off the tool and remove the battery pack
before installing or changing accessories.
Attaching the Loops to the Sprayer
(For use with Cat. No. 2528-20)
To install the strap:
1. Remove the battery pack.
2. Remove the powered head from the tank.

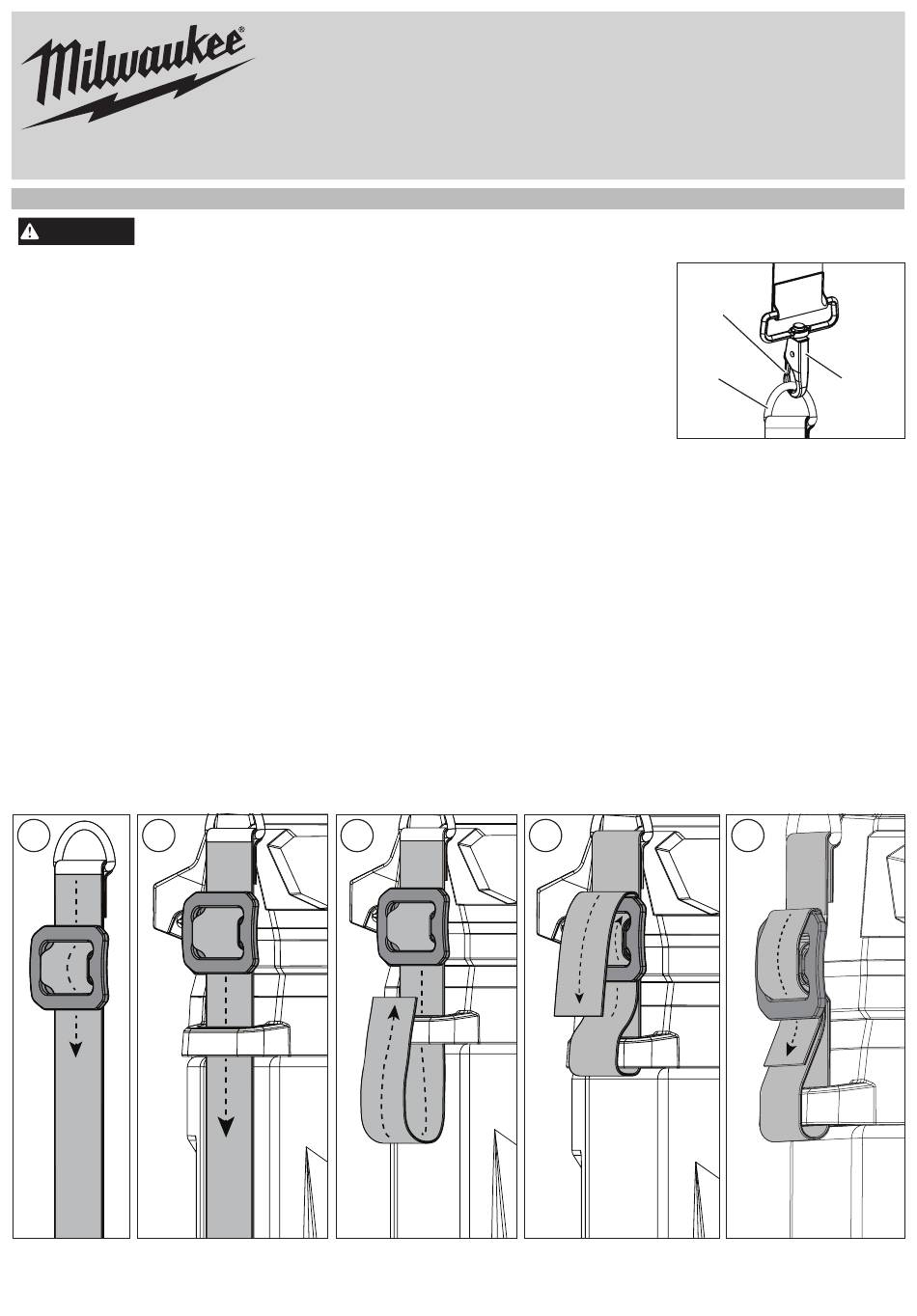

3. Position the 3-bar slide less than 1" from the d-ring
of the strap.
4. Insert the strap through the first hole of the metal 3-bar
slide and weave the strap over the center of the 3-bar
slide into the second hole of the metal 3-bar slide.
5. Insert the fabric end of the strap into the anchor point
of the tool.
6. Take the end of the strap and weave through the
second hole of the metal 3-bar slide and then into
the first hole.
7. Take the remaining fabric end and weave the strap
through the 3-bar slide as shown.
8. Repeat the steps for the other anchor point located
on the opposite side of the tool.
4
3
58222764d1
06/22
M12™ HANDHELD SPRAYER SHOULDER STRAP
BANDOULIÈRE DE PULVÉRISATEUR PORTATIF
DE M12™
CORREA DE HOMBRO PULVERIZADORA DE
MANO DE M12™
USER INSTRUCTIONS
5
MILWAUKEE TOOL
13135 West Lisbon Road • Brookfield, WI 53005 USA
Attaching the Shoulder Strap
(For use with Cat. No. 2528-20)
When operating this tool,
use the shoulder strap to
reduce user fatigue.
To install the strap:
1. Remove the battery
pack.
2. Remove the powered
head from the tank.
3. Clip the shoulder strap
to the d-ring on each
anchor point of the tool.
To wear the strap:
1. Put either right or left arm and head through the strap.
2. Adjust the strap to fit comfortably.
3. Slide the shoulder pad to the appropriate position.
To unclip the strap:
1. Hold the tool by the handle.
2. Grip the carabiner and unclip by pushing in the gate
and it sliding off the bevel. Do this for both anchor
points on the tool.
Clean dust and debris off of the accessory. Keep acces-
sory clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain cleaning
agents and solvents are harmful to plastics and other
insulated parts. Some of these include gasoline, turpen-
tine, lacquer thinner, paint thinner, chlorinated cleaning
solvents, ammonia and household detergents containing
ammonia. Never use flammable or combustible solvents
around tools.
6
Gate
D-Ring
Cleaning
7
00130712701Q-01(A)
Printed in China
Carabiner
