Summary of Contents for Curtis DYNA-FOG DYNA-JET L30 2 Series

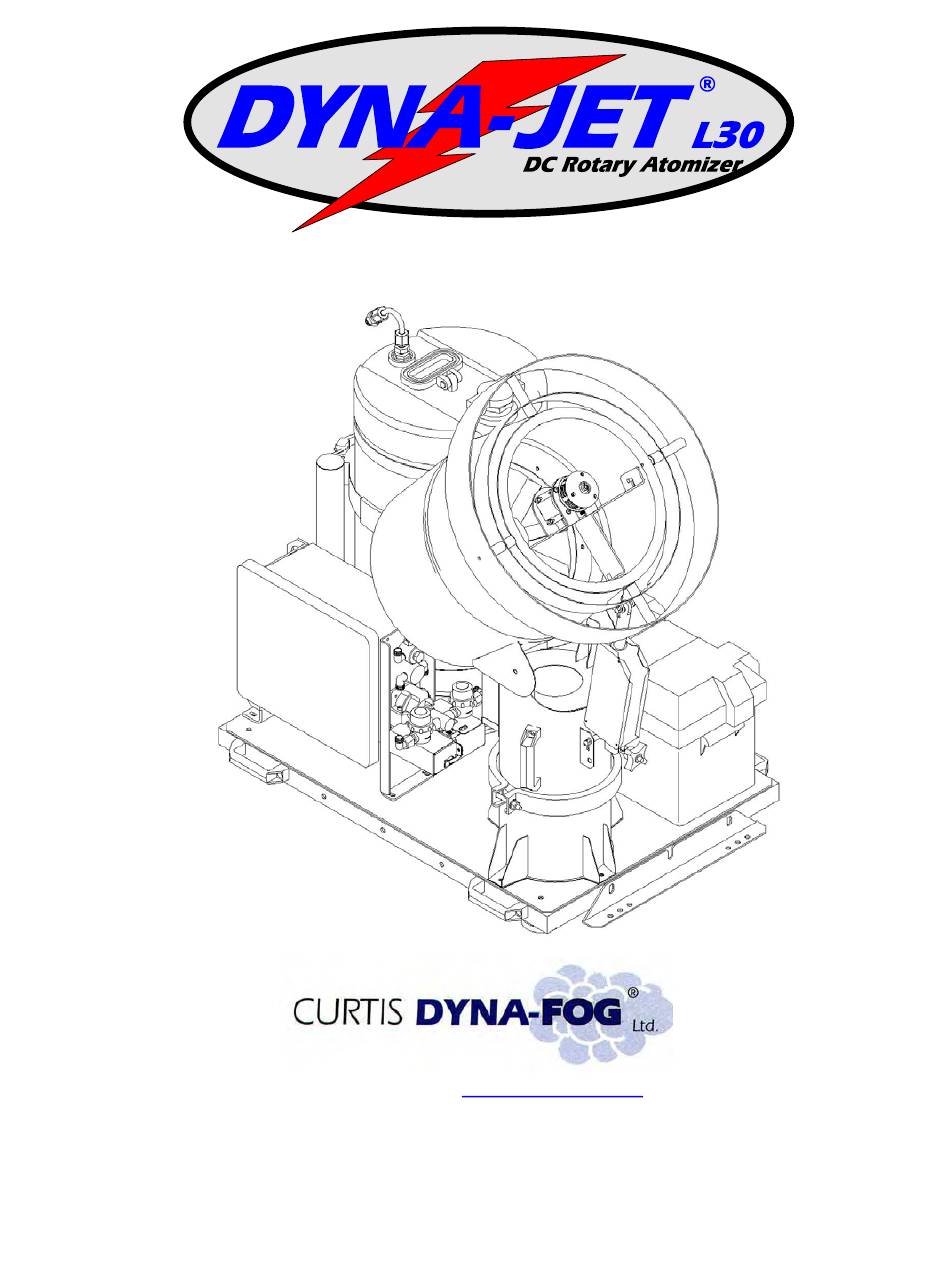

- Page 1 Model L30, Series 2 Electric ULV Sprayer (Click to access www.dynafog.com) Installation, Operation and Maintenance Manual 17335 US 31 North PO Box 297 Westfield, In 46074 USA Ph: 317.896.2561 Fax: 317.896.3788 Rev. 11-2013...
- Page 2 Thank you for choosing Dyna-Fog ® ® ® ® . 2000-2014 Copyright© Curtis Dyna-Fog, Ltd., All Rights Reserved Dyna-Fog, Dyna-Trax and Synchroflow are either Trademarks or Registered Trademarks of Curtis Dyna-Fog, Ltd. Aire-Mate is a registered trademark of Aire-Mate, Inc.
-
Page 3: Table Of Contents
WARRANTY INFORMATION..............................4 PDF FILE FORMAT ................................5 CAUTIONS AND WARNINGS..............................7 FOREWORD ................................... 8 DESCRIPTION OF DESIGN AND OPERATION ........................8 ................................9 YSTEMS IAGRAM INSTALLATION, CALIBRATION AND OPERATION......................10 ..............................10 ACHINE NSTALLATION ..............................10 ATTERY OWER OURCE For Stand Alone Operation- Not connected to vehicle charging system, recharging required ........ -
Page 4: Warranty Information
Warranty Registration Form by visiting www.dynafog.com. LIMITED WARRANTY Curtis Dyna-Fog, Ltd. (“Seller”) warrants that the machines it sells will be free of defects in workmanship and material under normal use and service (as described in the operating manual) for a period of (1) one year from the date of purchase from Seller or its authorized distributor. -
Page 5: Pdf File Format
The PC you are using must be connected to the Internet to access these hyperlinks. To test your Internet connection, click on the following Curtis Dyna-Fog logo to go to the www.dynafog.com... - Page 6 Machine Specifications (Dyna-Jet L30, Series 2) Atomizer Type High Speed Rotary, 2-stage Porous Media, Vertical remote control adjustment of 55 Horizontal manual adjustment of 360 Atomizer Motor 12 Volt DC, Brushless, High-Speed Shielded Bearings Droplet Size Designed to meet or exceed all existing labels for Vector Control. Producing approximately 90% of droplets less than 20 VMD* Pumping System Positive Displacement, FMI Piston Pump, Ceramic Piston,...
-
Page 7: Cautions And Warnings
CAUTIONS and WARNINGS Read and thoroughly understand the Cautions and Warnings contained throughout this manual, on the machine and on the Formulation manufacturer's label. Failure to comply with all Cautions and Warnings could result in severe bodily injury or death. Never operate the machine with the Atomizer Guards removed and always wear safety goggles when standing near the machine. -
Page 8: Foreword
FMI pump (standard on the Dyna-Jet L30) is capable of producing up to 20 oz/min (591 ml/min). Consult Curtis Dyna-Fog for applications requiring more than 14 oz/min. When equipped with the Radar Syncroflow™, pump flow rate is automatically controlled in relationship to vehicle speed without changing the pump setting. -
Page 10: Installation, Calibration And Operation
1-2 hours using a fully charged battery with at least a 115 amp hour capacity. A deep-cycle battery with the following specifications will best handle repeated charging and discharging: Curtis Dyna-Fog, Ltd. can supply a Cranking Amps: 750 quality deep-cycle battery. Click on... -
Page 11: For Vehicle Mounted Operation - For Continuous Operation Connected To Vehicle Charging System
For Vehicle Mounted Operation - For continuous operation connected to vehicle charging system To eliminate the need to recharge the deep-cycle battery, the machine must be connected to the vehicles battery being charged by the vehicles alternator. The Dyna-Jet L30 requires a rate of charge of 30 amps at 13 VDC (when measured at the sprayers deep-cycle battery). -
Page 12: Battery Charging Tips
Battery Charging Tips Warning Batteries produce combustible gases that can explode! Always read and follow the instructions given by the battery manufacturer’s label and on the battery charging device. Always wear proper safety equipment (Safety Goggles, Rubber Gloves, etc…) when handling and charging batteries. Why charge batteries? Batteries are not 100% efficient;... - Page 13 Cyberdyne Digital Battery Gauge Low Voltage Indicator When battery voltage reaches a level that is too low, the meter flash on and off. When this happens, battery voltage is at 11.0 volts indicating that the battery is either not receiving sufficient charge or the battery needs charged or replaced.
-
Page 14: Pump Calibration
Pump Calibration- (For the Dyna-Jet Model L30 without the Syncroflow System) Before attempting to spray, the FMI pump must be calibrated to the proper flow rate setting. The required flow rate is dictated by the information on the formulation manufacturer's label. Calibration is performed using the "Calibration Switch"... -
Page 15: Control
5) With the tube placed in the beaker, press and hold the calibration switch and watch for all air bubbles to be evacuated from the tubing. Release the button and empty the beaker back into the formulation tank. 6) Place the tube back into the empty beaker and press and hold the Calibration Switch for 20 seconds and then release the switch. - Page 16 The voltage should be between 12.8 and 13.8 Volts DC. If the voltage is in this range and the speed is lower than 28,000 rpm, contact a Curtis Dyna-Fog, Ltd. representative. NOTE: If the voltage is too low, make sure the battery is properly charged and that all electrical connections on the machine and the vehicle are correct.
-
Page 17: Dyna-Trax Gps Option
Optional Radar Syncroflow System When equipped, the Curtis Radar Syncroflow System allows the dispensing of formulation to be either a constant flow (AManual@) regardless of vehicle speed, or a variable flow (ASyncroflow@) which is correlated to vary proportionately with vehicle speeds from 4 to 20 m.p.h. -
Page 18: Flushing
Flush for 2-3 minutes. Use only ® Dyna-Fog flushing solution, or a Curtis Dyna-Fog approved flushing agent such as Aire-Mate Flushing Solution (Specify Part No. 1-0224). Click on the following hyperlink to go to www.airemate.com... -
Page 19: Preventative Maintenance Schedule
Preventative Maintenance Schedule Dyna-Jet L30 Maintenance Check Sprayer Flush Wash Check machine Clean the Inspect Atomizer Inspect electrical Time Interval Voltage formulation Machine mounting formulation and Motor connections system filter Battery meter on Flush for 2- Wash using mild Daily remote box 3 minutes detergent being... -
Page 20: Cleaning The Atomizer's Porous Sleeve
Cleaning the Atomizer's Porous Sleeve When properly maintained, your Dyna-Jet L30 atomizer will produce spray droplet sizes suitable for all approved labeled formulations registered for use for Mosquito Control and Fly Control. While the formulation pump is capable of producing up to 20 oz/min (591 ml/min) for special applications, the FMI pump has been governed to produce a maximum flow of 14 oz/min (414 ml/min). -
Page 21: Electrical Wiring Diagram (L30, Series 2)
... -
Page 22: Terminal Strip Wire Connection Diagram
Terminal Strip Wire Connection Diagram... -
Page 23: Connecting The Dyna-Jet L30 To The Vehicle Electrical System
Connecting the Dyna-Jet L30 to the Vehicle Electrical System PART NO. DESCRIPTION 120214 Washer, lock, 5/16 split 120382 Washer, lock, 3/8 split 120392 Washer, flat, ¼, reg. 121900 Bolt, ¼-20 x 1, hex 65167 Adaptor, battery post (GM reg) 65168 Adaptor, battery post (GM) 65169 Adaptor, battery post (Ford) -
Page 26: Atomizer Assembly (L30)
... -
Page 27: Remote Control Assembly (L30)
Remote Box Assembly, P/N: 65156 ITEM PARTE No. CANT. DESCRIPCION 54022 Mounting tab 58652 Rivet, drive, .187 x .6L 65153-1 Digital Volt Meter 64687 Rocker Switch, spst. 65166 Rocker Switch, dpdt. 65141 Remote Harness Ay. 159229 Screw, 4-40 X 1/4 PHCRZ 65126-1 Plate, remote control panel 65127... - Page 29 ITEM PART NO. DESCRIPTION 65265 LABEL, FLOW RATE LABEL, ATOMIZER SPEED 65268 ENCLOSURE, PUMP (MACHINED) 65281 65295-12 WIRE AY, MOTOR CONTROL TO RELAY 65295-8 WIRE AY, RED/XXX 65295-7 WIRE AY, RED/XXX 65295-1 WIRE AY, RED/XXX 65303 FUSE, 10A 65286 CIRCUIT BREAKER, THERM. 25A 65295-11 WIRE AY, BLK/XXX, MOTOR CONTROL, NEG 65143...
-
Page 30: Pump/Bracket Assembly (L30)
Pump/Bracket Assembly (L30) - Page 31 PUMP BRACKET ASSEMBLY, P/N 65148 ITEM PART NO. DESCRIPTION 62437 Latch, draw 62437-1 Keeper, latch 65243 Nut, #4, nylock, sstl 65245 Screw, 4-40 x 3/8, phcr, sstl 65137-2 FMI cover, welded ay., right 65137-1 FMI cover, welded ay., left 65223 Screw, 10-24 x 3/8, phcr, sstl 65240 Nut, #10, nylock, sstl...
- Page 33 HOUSING ASSEMBLY (L30), P/N 65102 ITEM PART # DESCRIPTION 65220 SCREW, 10-24 x ¾, PNCR SSTL 65240 NUT, #10 NYLOCK SSTL 65232 WASHER, #10 FLAT SSTL FAN, 12 VDC, ELECT MOD. 65170-1 65191 CLEVIS, BLOWER 65216 BOLT, 5/16-18 x 1, SSTL 65238 NUT, 5/16-18, NYLOCK SSTL 65237...
-
Page 34: Actuator Assembly
Actuator Assembly ACTUATOR ASSEMBLY, P/N B65195 ITEM PART NO. DESCRIPTION 64850 Linear actuator 65196 Actuator cover (right side) 65197 Actuator cover (left side) 65212 Cover, rear actuator cover 65229-1 Screw, 4-40 x 2.25, phcr, sstl 65243 Nut, #4, nylock, sstl 65271-1 Spacer, act. -
Page 35: Formulation Tank Assembly
Formulation Tank Assembly FORMULATION TANK ASSEMBLY, P/N 64004 ITEM PART # DESCRIPTION 62574 FORMULTION STANDPIPE AY 62545 FORMULATION STANDPIPE 62550-3 NUT, STEEL GRIPPER 62553-3 CONNECTOR, UNION 3/8 T 62573-2 CONNECTOR, MALE, MOD 64772 BUSHING, ¾ MPT x 3/8 FPT, NYL 64002 TANK, 15 GAL. -
Page 36: Flush Tank Assembly
Flush Tank Assembly FLUSH TANK ASSEMBLY (1 GAL), P/N 63337-1 ITEM PART NO. QTY DESCRIPTION 63302-6 Tank, 1 Gal. (Mach.) 62592 Label, flush 62553-1 Connector, union, 1⁄4 T 62550-1 Nut, 0.25, Steel grip 114628 Sleeve, 1⁄4 T 145463 Nut, 1⁄4 T 10105 Connector, standpipe 53131... -
Page 37: Plumbing Diagram (L30)
Plumbing Diagram (L30) ITEM DESCRIPTION ITEM DESCRIPTION 22083-19 Tubing, 3/8 OD 62550-3 Nut, 3/8, Steel Grip 22083-19 Tubing, 3/8 OD 62554-2 Elbow, ¼ FP, ¼ T 62554-4 Elbow, 1/4FP, 3/8T 62554-2 Elbow, ¼ FP, ¼ T 58212-5 Tube, Nylon, ¼ OD 62582-3 Nut, 3/8T, Plst Grip 58212-5 Tube, Nylon, ¼... -
Page 39: 3-Way Valve Assembly
3-Way Valve Assembly (INSTRUCTIONS FOR REBUILDING AND CLEANING) 1. Using a screwdriver, snap off the retaining clip, which secures the coil assembly. 2. Remove the retaining clip. 3. Slide the coil off the valve body, and using a spanner nut (P/N 62650-15), remove the core housing for cleaning or rebuilding. -
Page 40: 2-Way Valve Assembly
2-way Valve Assembly Valve Disassembly Valve Reassembly 1. Lubricate all gaskets with high-grade silicone grease. 2. Torque end cap to 175 ± 25 in-lbs [8,5 ± 1,1 Nm] 3. Replace solenoid base gasket, core assembly with core spring and solenoid base sub-assembly or plugnut/core tube sub-assembly and valve bonnet. -
Page 42: Remote Control Box Schematic (L30, Series 2)
Remote Control Box Schematic (L30, Series 2) -
Page 43: Maintaining The L30 Atomizer
Maintaining the L30 Atomizer Several design factors are in place to help you maximize the life of the atomizer assembly. Some factors are: ➢ The atomizer is precision balanced. The rough depressions on the face of the atomizer are normal. These are the spots that were removed during balancing to equalize the mass of the assembly while it is rotating. - Page 45 FUSE BLOCK Protective devices like Fuses and Circuit Breakers are included to protect against short-circuits and/or overload currents. The general idea of the fuse is that it melts a conductive link when current gets higher than its rating and thus stops the current flowing. The Circuit Breaker is a thermal device used in the motor distribution system for protecting against overload and short-circuits in the system.
-
Page 46: Conversion Chart
Vehicle Electrical Installation Kit P/N-65287 The kit contains a circuit breaker to protect from excessive current being drawn from the vehicle’s electrical system, and also provide a safe and easy way to switch the voltage from the vehicle’s battery “off” to facilitate the removal of the sprayer. - Page 47 Once the components and atomizer have been mounted, and the path to route the cable has been chosen, the 6-gauge cable can be cut to length allowing a few extra inches for movement and serviceability. After it is cut, the cable’s insulation should be stripped to expose .375 (3/8”) to .500 (1/2”) of conductor to be inserted into the ring terminals at each end.
- Page 48 • STEP #3 PREPARING CABLES With the cables routed and secured, they may now be cut to length. The black cable must run from the negative (-) post on the vehicle battery to the negative (-) post on the atomizer battery. The red positive cable will go from the atomizer battery positive (+) post to the “AUX”...
- Page 49 • STEP #6 FINAL CONNECTION Be sure that both the vehicle and atomizer batteries are in a fully charged condition, check that the breaker is still “OPEN”. You are now ready to make the last connection of the short red cable to the vehicle battery positive (+) post using one of the adapters provided.
- Page 50 Conversion Chart To Convert Multiply By Millimeters Inches .03937 Centimeters Inches .3937 Meters Feet 3.281 Kilometers Miles .6213712 Square Meters Square Feet 10.764 Square Meters Acres .000247 Hectares Acres 2.471 Grams Ounces (Fluid) .035 Milliliters Ounces .0338 Liters Gallons (US) .264 Kilograms Pounds...
- Page 51 Radar or GPS speed sensing. 25 cc and 40 cc two cycle portable models are also available. Contact Us For Your Nearest Distributor: 17335 US. Highway 31 North CURTIS DYNA-FOG Ph: +1.317.896.2561 Westfield, IN 46074, USA Ltd.
