Summary of Contents for NAKTO LCD-M5

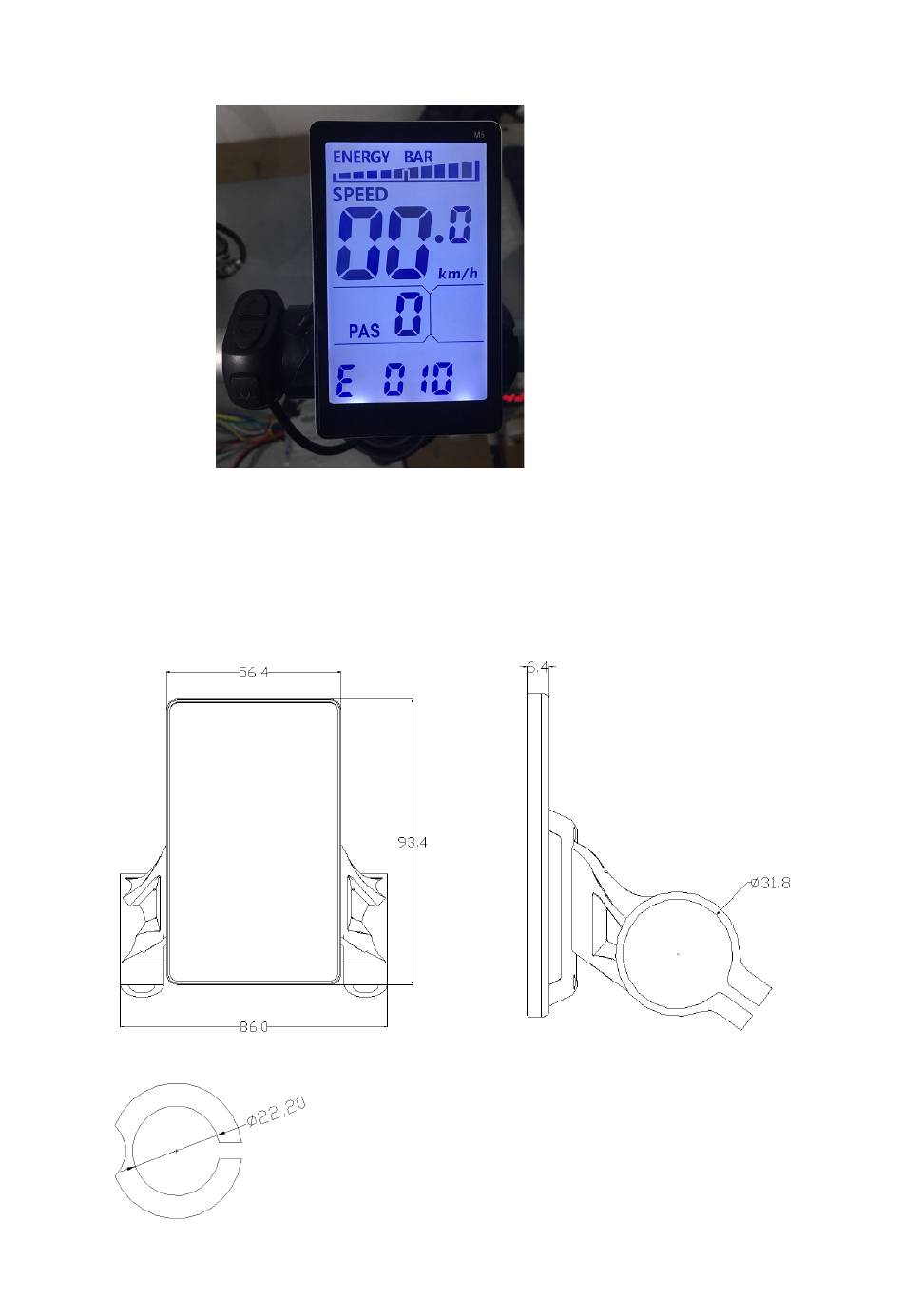

- Page 1 NAKTO ELECTRIC BICYCLE LCD-M5 display Control Panel Instruction Size（unit：mm） Case：ABS & Meta& glass Front Side 31.8mm Rack...
- Page 2 Front switch side Voltage and Wiring Voltage：DC24V、36V、48V、60V、64V Wiring Front LCD side Color Function brown（VCC） Power source Green（RX） Data receiving Black（GND） Ground Orange（K） Power switch for controller white（TX） Data Sending Introduction for display marks: All displays:...
- Page 3 Introduction for display marks: 1. Head light 2. Battery Level 3.Multi-function area Total Range ODO、Single Range TRIP A、Single Range TRIP B、Voltage VOL、 Currency CUR、miles left RM； Running time TM 4. Running Model Walk: assistant walking ；Cruise：Cruiser model ；PAS：pedal assistant:0~9 levels 5.
- Page 4 Stay Brake PAS sensor 6KM/H Cruiser Cruiser Low voltage Motor breakdown Throttle error Controller error Signal receiving error Signal sending error BMS communication Head light error Currency abnormal Throttle Error Motor lost one phase Motor Magnet error Brake Error Communication Error 7.
- Page 5 P07: No of magnet steel for speed measurement： 1-100； P08：Speed limit：Range 0-50 km/h，50 means no limit P09：Setting for zero/none zero start: 0：zero start ；1：none zero start； P10：Powering Model settings: 0 : PAS(throttle disabled, output power is corresponding to PAS levels)。 1 : Throttle(PAS disabled, output power is controlled by throttle turning, top speed it corresponding to PAS level settings)。...
- Page 6 for the function to be activated. Press increase/decrease level control the top speed Press and hold both buttons to enter/exit to settings. Press and hold “M” to turn on and off LCD display and Power 3. + Push and hold to change the display of speed unit Settings Set/Cancel 4MPH Cruiser, headlight, ODO reset During the stop of the bike, Push and hold...
