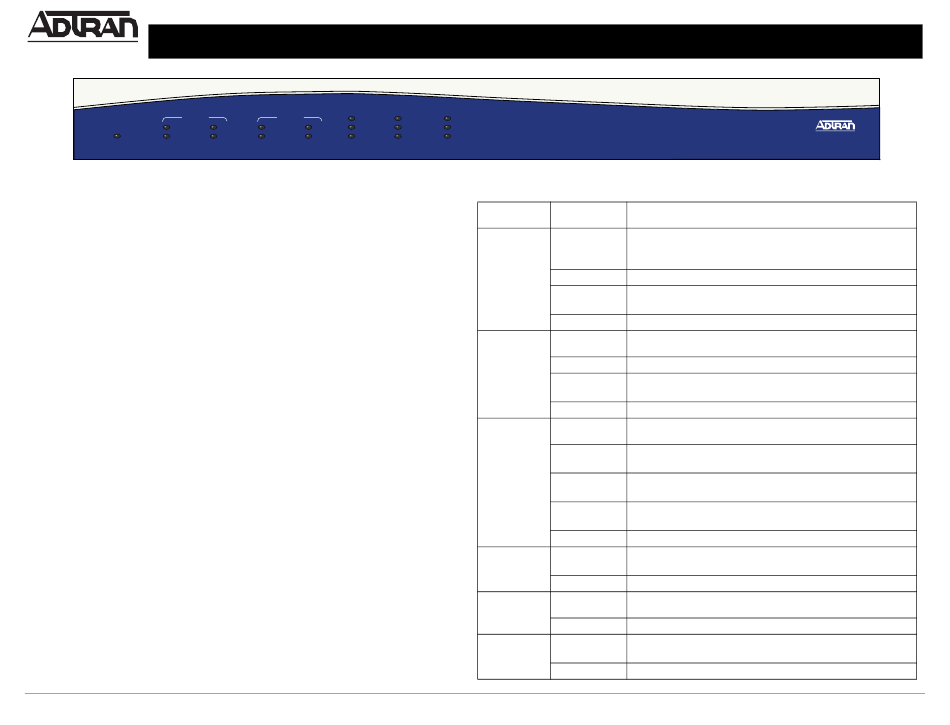

ADTRAN NETVANTA 4305 Connecting Manual

NETVANTA 4305 (SYSTEM)
Quick Start Guide
NET 1
WAN
STATUS DBU
I N
NSTALL THE ETWORK
1. Verify the unit is not connected to a power source.
2. (Optional) To install the Dial Backup Interface Module (DIM), carefully align
the P1 connector on the NIM with the J1 connector on the DIM. Using only
fingertip pressure to ensure that neither circuit board bends or flexes, firmly
seat the connectors. Secure the DIM to the NIM using the supplied screws
and standoff posts.
3. Slide the NIM into the option slot until the module is firmly positioned against
the back of the chassis.
4. Secure the push pins at both edges of the module.
5. (Optional) To install the Wide Slot Interface Module, align the module with
Slot 3 and slide the module into the chassis until it is firmly positioned
against the backplane connectors. Secure by tightening the screws.
C N V
ONNECT TO THE ET ANTA
Before connecting to the NetVanta 4305 CONSOLE interface you will need the
following items: VT100 terminal or PC (with VT100 terminal emulation software)
and a straight-through serial cable with a DB-9 (male) connector on one end and
the appropriate interface for your terminal (or PC) on the other.
1. Connect the DB-9 (male) connector of your serial cable to the CONSOLE
port on the rear panel of the unit.
2. Connect the loose end of the serial cable to the VT100 terminal or PC (with
terminal emulation software).
3. Open a VT100 terminal session to the NetVanta 4305 using the following
settings:
9600 baud, 8 data bits, no parity bits, and 1 stop bit. Press <Enter> to
activate the ADTRAN Command Line Interface.
4. Enter enable at the > prompt.
5. Enter the password when prompted. The default password is password.
Quick Start Guide, 61200890L1-13A, June 2004
LAN 1
NET 2
TD
TD WAN TD RD
RD DBU RD LNK
I M (NIM)
NTERFACE ODULE
4305 C
ONSOLE
Technical Support 1-888-4ADTRAN (1-888-423-8726)
LAN 2 WIDE SLOT 1
TD STATUS
RD ACTIVITY
LNK TEST
LED D
ESCRIPTIONS
For these This
LEDs... activity...
STATUS
Green
(blinking)
Green (solid)
Red (solid)
Yellow (solid)
NET 1/ NET 2
Off
WAN
Green (solid)
Red (solid)
Yellow (solid)
NET 1/ NET 2
Off
DBU
Green (solid)
Green
(blinking)
Red (solid)
Yellow (solid)
NET 1/NET 2 Green
TD/RD
(blinking)
Off
LAN 1/ LAN 2
Green (solid)
LNK
Yellow (solid)
LAN 1/ LAN 2 Green
TD/RD
(blinking)
Off
For more detailed documentation, visit us online at
Indicates that...
Unit is powering up. On power-up the STAT LED blinks rapidly
for five seconds, during which time the user may escape to boot
mode from the console port.
Power is on and self-test passed.
Power is on, but the self-test failed or the boot mode (if
applicable) code could not be booted.
Unit is in test.
No NIM is installed, or interface is administratively down.
Link is up and everything is operational.
An alarm condition is occurring on the WAN interface, or there
is a self-test failure.
Unit is in test.
No DIM is installed.
DIM is ready. For the ISDN BRI DIM, green solid indicates that
the negotiation with the switch is complete.
Unit is in dial backup.
An alarm condition is occurring on the DBU interface, or there is
a self-test failure.
Unit is in test.
There is activity on the WAN or DBU port.
There is no activity on the WAN or DBU port.
10BaseT Ethernet link is up.
100BaseT Ethernet link is up.
There is activity on the Ethernet port.
There is no activity on the Ethernet port.
© 2004 ADTRAN, All Rights Reserved
www.adtran.com
P/N 1200890L1
NetVanta 4305
