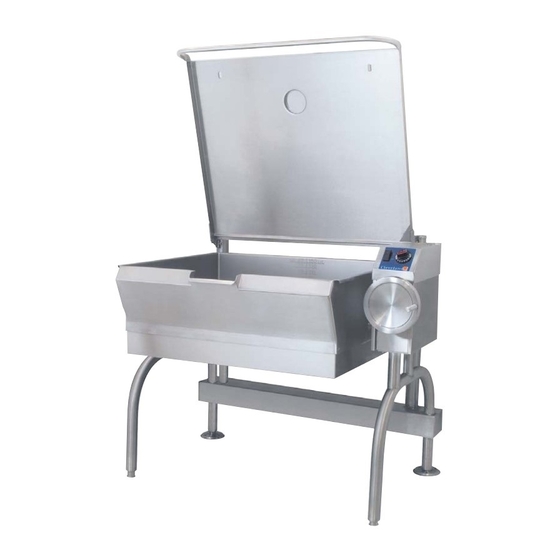

Cleveland SEL-30-T1 Operator's Manual
Electric t1 skillets
Hide thumbs
Also See for SEL-30-T1:
- Operator's manual (21 pages) ,
- Specifications (2 pages) ,
- Installation operation & maintenance (30 pages)
Table of Contents
Related Manuals for Cleveland SEL-30-T1
Summary of Contents for Cleveland SEL-30-T1

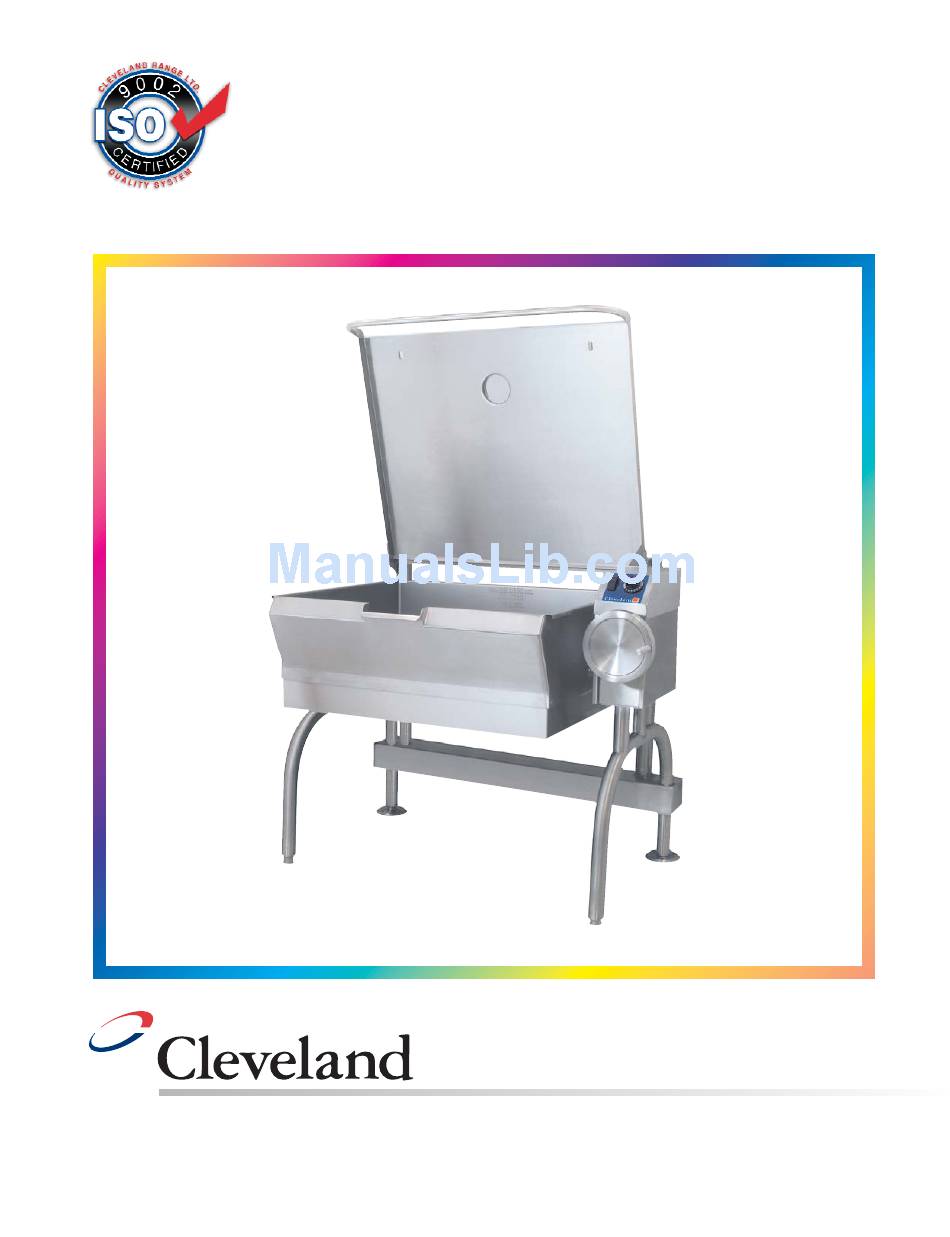

- Page 1 Operators Manual Installation, Operation & Service Electric T1 Skillets MODELS: SEL-30-T1 SEL-40-T1 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Enodis Phone: (216) 481-4900 Fax: (216) 481-3782 Visit our web site at www.clevelandrange.com SE95051...
- Page 2 THE INSTALLATION AND CONNECTION MUST COMPLY WITH THE LOCAL AND NATIONAL ELECTRICAL CODES. ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS SHOWN ON THE RATING LABEL ALL SERVICE MUST BE PERFORMED BY A QUALIFIED CLEVELAND RANGE TECHNI- CIAN. RETAIN THIS MANUAL FOR YOUR REFERENCE.
-
Page 3: Table Of Contents
Installation Operating Instructions Cleaning Instructions Service Parts Maintenance General..........1 Inspection / Unpacking . -
Page 4: General
INSTALLATION GENERAL Installation of the unit must be accomplished by qualified electrical installation personnel working to all applicable local and national codes. Improper installation of product could cause injury or damage. This equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are: UL, NSF, ASME/Ntl. -
Page 5: Wire Connection
WIRE CONNECTION Note: Ensure main power is turned off before connecting wires. General Information Install in accordance with local codes and/or the National Electric Code ANSI/NFPA No. 70-1990 (USA) or the Canadian Electric Code CSA Standard C22.1 (Canada). A separate fused dis- connect switch must be supplied and installed. -
Page 6: Specification Drawing
SPECIFICATION DRAWING DIMENSIONS MODEL 39 1/8" 24 1/2" 31 3/4" SEL-30-T1 (994mm) (623mm) (807mm) (305mm) 51 1/8" 36 1/2" 43 3/4" SEL-40-T1 (1299mm) (928mm) (1112mm) (458mm) SPECIFICATIONS ELECTRICAL SUPPLY MODEL 208V AMPS WATTAGE SEL-30-T1 Standard 33.3 57.7 High 44.4 SEL-40-T1 Standard 86.5... -
Page 7: General Parts Drawing
OPERATING INSTRUCTIONS General Parts Drawing ITEM # DESCRIPTION Power Switch Temperature Dial Heat Indicator Light Hand Tilt Wheel Manual Tilt Override Tangent Draw-Off Valve (not shown) Faucet (not shown) Power Indicator Light (Red) FUNCTION Lower position - power to the unit is OFF. Upper position - power to the unit is ON. -
Page 8: Operating The Unit
OPERATING THE UNIT Ensure electrical supply to the unit is in the ON position. Turn Power Switch (1) to the ON position. The yel- low Heat Indicator Light (3) will indicate power is on. MANUAL TILT (4): Cleveland skillets are equipped with a manual tilt mechanism for raising and lowering the pan. -
Page 9: Care & Cleaning
CLEANING INSTRUCTIONS The best time to clean the skillet is immediately after each use, CARE AND CLEANING Your skillet must be cleaned regularly to maintain its fast, efficient cooking performance, and to ensure its continued safe, reliable operation. WARNING: Do not use chloride base detergents. -
Page 10: Warranty
SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper mainte- nance and repair of your cooking equipment In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory-sup- plied replacement parts should be used. -
Page 11: Pan Mount Assembly
PAN MOUNT ASSEMBLY ITEM PART DESCRIPTION HEATING ELEMENTS ... .6 3 3 0 0 G G A A L L L L O O N N SK50845-1 ELEMENT, 2.00 KW, 480 VAC SK50845-2 ELEMENT, 2.67 KW, 416 VAC SK50845-3... -
Page 12: Tilt Components
TILT COMPONENTS ITEM NO. PART NO. KE51730 FA31010 FA20030 KE51007 FA10140 FA19201 FA95048 FA19177 FA20047 KE00151 KE00279 KE50312 FA11258 FA31029 FA30505-1 KE50441 KE50375 DESCRIPTION TILT SHAFT BEARING ..........1 LOCK WASHER, 3/8 . - Page 13 TILT COMPONENTS (continued) KE50315 FA95005 KE52193 KE52192 KE52191 FA19500-2 FA95008 KE50582 FA95014 KE50583 KE52832-4 KE54829-4 FA11258 FA30505-1 FA21008 KE00508 FA19186 KE50294-1 KE50295-1 FA15018-1 FA19184 SK50047-1 KE53838-25 KE53444 FA11091 KE50473 F900 KE52936-8 KE52936-6 KE51139 SK50945-1 F900 KE50377 KE50376 FA11091 KE50374 FA21008 FA30505-1 KE54833-1 KE50579-1...
-
Page 14: Control Box Assembly
CONTROL BOX ASSEMBLY SECTION A - A ITEM NO. PART NO. SK2138700 SK2360700 SK2360701 KE51005 SK2498399 SK2166800 SK2167000 SK2167100 INCLUDES SK2167200 SK2167300 SK2382800 FA21006 FA32022 FA40000-6 SK50903 SK50905-1 SK2142002 SK2159300 SK2491500 SK95063 SK90125-2 SK90125-3 SK90125-1 SK2474103 SECTION B - B DESCRIPTION KNOB ASSEMBLY . -
Page 15: Component Plate Assemblies
COMPONENT PLATE ASSEMBLIES ITEM PART DESCRIPTION M M A A N N U U A A L L T T I I L L T T SK00411 COMPONENT PLATE WELDMENT .1 SK2475500 RELAY ......1 SK2475600 HOLDER . -
Page 16: Frame / Lid Assembly
FRAME / LID ASSEMBLY 20 21 22 ITEM NO. PART NO. DESCRIPTION SK00392-1 SK00392-3 SK2457192 SK2457193 KE50187-1 SK00394-1 SK2452300 FA95087-1 FA20008 KE53573-1 FA15019-4 FA21501-2 KE00099 KE50249-1 FA31029 FA11054 SK2459299 FA21024 FA31030 FA30055 SK00054 SK2211200 FA95081-1 SK50179 FA30504 FRAME WELDMENT (30 GALLON) ........1 FRAME WELDMENT (40 GALLON) . -
Page 17: 2" Tangent Draw-Off Valve
2" TANGENT DRAW-OFF VALVE ITEM NO. PART NO. 1. - 7. KE50972-B FA95049 KE527551 KE52754 KE52753 KE52752 FA00111 KE52751 DESCRIPTION DRAW-OFF ASSEMBLY ..........1 WING NUT . -
Page 18: Hinge Adjustment Instruction
MAINTENANCE Any maintenance or service involving disassembly of components should be made by a qualified service technician. Ensure electrical HINGE ADJUSTMENT INSTRUCTIONS FULLY LIFT COVER TO RELEASE SPRING TENSION SPRING LUBRICATION PROCEDURE Lubricate the following parts every three months to insure smooth operation and reduce wear. -
Page 19: Sequence Of Operations
SEQUENCE OF OPERATIONS When using these instructions refer to the SEL-TI wiring schematic. Supply Voltage is sent to the primary of the 120 VAC transformer. Supply voltage is sent to the normally open con- tacts of the Heat Contactors, C 1 and C2. 120 VAC is sent from the secondary of the 120VAC transformer through the 3 amp fuse to The primary of the 24 VAC transformer... -
Page 20: Spare Parts Lists
SPARE PARTS LIST PART NO. DESCRIPTION H H E E A A T T I I N N G G E E L L E E M M E E N N T T S S ................6 30 GALLON SK50845-1 ELEMENT, 2.00 KW, 480 VAC... -
Page 21: Wiring Diagram
WIRING DIAGRAM MERCURY SWITCH TILT SWITCH RESISTOR ELECTRICAL COMPONENT PART #s FUSE 3A KE52936-6 FUSE 1.25A KE52936-8 RELAY 1 SK2475500 HEATING ELEMENTS - SEE "PAN MOUNT ASSEMBLY" ON PAGE # 8 ON/OFF SWITCH SK2474103 HIGH LIMIT KE55069-7 THERMOSTAT SK2142002 SENSOR SK50933-1 HEAT INDICATOR SK50905-1... -
Page 22: Symbol Legend
Symbol Legend (page 1 of 2) English French Spanish Italian RISK OF ELECTRICAL SHOCK DANGER DE SECOUSSE ÉLECTRIQUE PELIGRO DE ELECTROCHOQUE PERICOLO DI SCOSSA STROMSCHLAG-GEFAHR SPLASHPROOF ANTIÉCLABOUSSURES A PRUEBA DE SALPICADURAS PROTETTO CONTRO GLI SPRUZZI SPRITZWASSERDICHT DISCONNECT ELECTRICAL SUPPLY BEFORE WORKING ON KETTLE COUPER LE COURANT AVANT D'INTERVENIR SUR L'ÉQUIPEMENT DESCONECTAR LA ALIMENTACION ELECTRICA ANTES DE REALIZAR TRABAJOS EN EL EQUIPO DISINSERIRE LA CORRENTE PRIMA DI LAVORARE SULLA MACCHINA... - Page 23 Symbol Legend (page 2 of 2) English French Spanish Italian AUTOMATIC TEMPERATURE CONTROL COMMANDE AUTOMATIQUE DE LA TEMPÉRATURE AJUSTE AUTOMATICO DE TEMPERATURA CONTROLLO AUTOMATICO TEMPERATURA AUTOMATISCHE TEMPERATURREGELUNG BURNER AND/OR ELEMENT ENERGIZED BRÛLEUR ET/OU ÉLÉMENT ALLUMÉ QUEMADOR O ELEMENTO ENCENDIDO FIAMMA E/O ELEMENTO ATTIVATI BRENNER ODER ELEMENT EINGESCHALTET HEATING ÉBULLITION...
