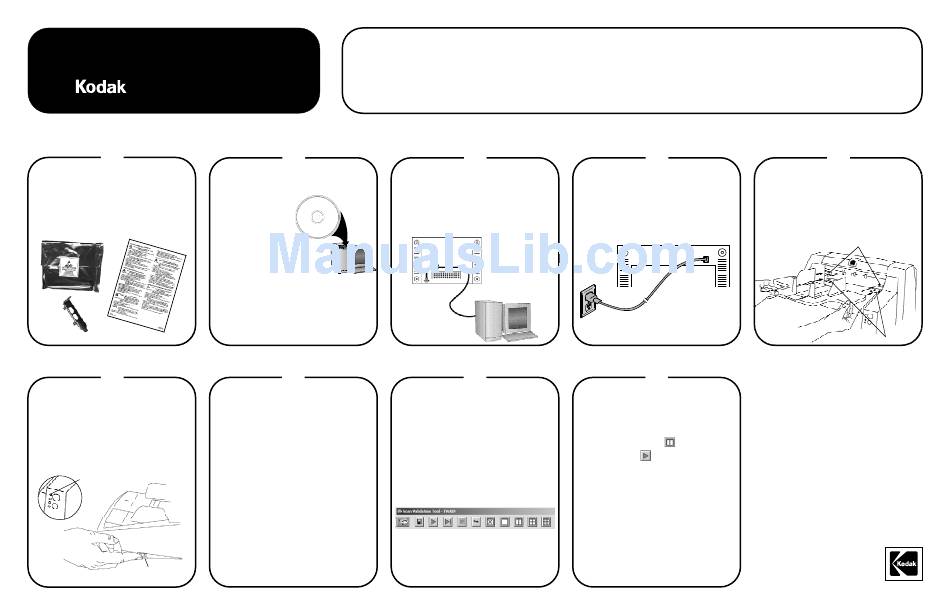

Kodak i640 Installation Manual

Installation Guide
for i600 Series Scanners
NOTE: Additional instructions for the steps below can be found in the User's Guide and other supporting documentation.
1
Install FireWire card
IMPORTANT: Turn the computer off and
unplug the power cord to avoid
static discharge.
6
Turn on power
a. Power up the scanner.
b. Power up and login to your PC using an
account with Administrative privileges.
Wait until the scanner beeps before
initiating scanning.
Power light
Power switch
Package Contents
2
Install software
a. Insert the Kodak
i600 Series Scanner
Installation CD in
the CD-ROM drive.
The installation
program starts
automatically.
b. Install the TWAIN Data
Source, ISIS Driver and the
Kodak Scan Validation Tool.
c. When installation is complete, shut down
your computer.
7
Scanner will be
recognized by the
software
Your operating software will now auto-detect
the scanner.
Depending on the computer operating system
you are using, you may see dialog boxes which
show this step. Follow the instructions,
selecting the defaults, as prompted by the
dialog boxes.
• Power cord bundle
• Ink cartridge and blotter strips
• Tires and Pre-separation pads
• Cleaning supplies
• FireWire package
• Calibration targets
• Output tray
• Exit deflector
3
Install FireWire cable
CAUTION: DO NOT FORCE THE CONNECTOR.
Plug the end of the cable with the right angle
into the scanner, being sure that the cable is
aligned correctly.
8
Set up a test scan
a. Place a document to scan in the input tray.
b. Select Start > Programs > Kodak >
Document Imaging > Scan Validation Tool.
The Scan Validation Tool dialog box will
be displayed.
c. Select TWAIN (or ISIS) for the Driver Types
and Kodak Scanner i600 as the driver. The
Scan Validation Tool dialog box is
displayed.
NOTE: If this dialog box is not displayed, a
message box may be displayed. Follow
the steps indicated in the message
box.
• Warranty/Registration box:
– Paper path cleaner
– User's Guide
– Installation CD
– Brightness and Contrast Control CD
– Brightness and Contrast Control Reference Guide
– Quick Tips Guide
4
Install power cord
Select the power cord for your scanner that
matches your electrical requirement.
9
Scanning an image/
verification
a. If the image viewer window is not open,
click one of the View buttons.
b. Click the Start button. The scanned
document will be displayed in the image
viewer window.
• If the document is scanned correctly,
the installation and verification of your
scanner is complete. Congratulations!
You may now install the third-party
scanning application software you
intend to use with your scanner.
• If the document did not scan correctly,
refer to the Image Processing Guide on
your CD for more information.
5
Install output tray
a. Insert the output tray into one of the two
positions as shown below.
b. Adjust side and front guides to match the
size of the documents you will be scanning.
Top position
Bottom position
