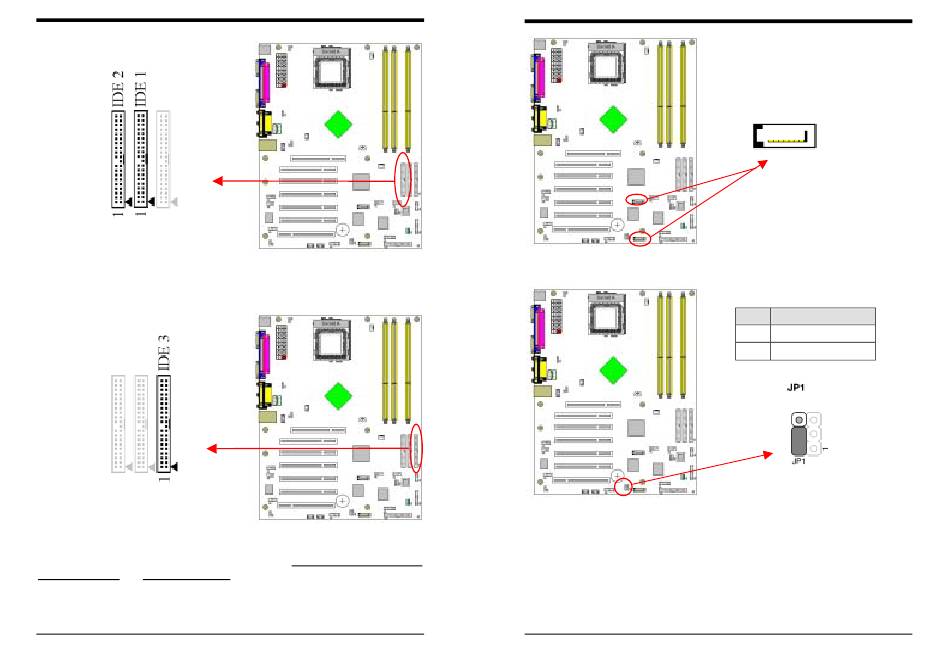

IDE 1/2 (IDE Hard-Disk Connector)
This connector is used for connecting 40 pins of ATAPI devices.
IDE 1 only connects two IDE devices. (Primary Master/Slave)
IDE 2 only connects two IDE devices. (Secondary Master/Slave)
IDE 3 (IDE RAID Connector)
This connector is used for connecting IDE HDD, which builds IDE RAID.
Using IDE RAID, the IDE HDD needs to be set to Master, not Slave;
otherwise, the HDD can not be detected. For 7NJS, one/two Serial ATA(s) and
one IDE RAID or two Serial ATAs need to be used at the same time.
Otherwise, single HDD, which is plugged in IDE RAID or Serial ATA can not
be become RAID function.
Notes:
Setup problem, please refer to Appendix Serial ATA/IDE RAID
7NJS User's Guide
Chapter 2
Chapter 2
J1 /J2 (Serial ATA Connector):
JP1 (Clear CMOS Data):
1. Disconnect the system power supply from the power source.
2. Set the jumper cap at location [2-3] for <5 seconds>, and then set it back to
3. Connect the system's power and then start the system.
4. Enter BIOS's CMOS Setup Utility and choose Load Setup Defaults. Type
5. Set the system configuration in the Standard CMOS Setup menu.
.
15
16
This can connect to new IDE device, it support ATA 150MB/sec.
Notes: Setup problem, please refer to
To clear the contents of the CMOS, please follow the steps below.
the default position.
[Y] and press [enter].
7NJS User's Guide
Appendix Serial ATA/IDE RAID
.
Pin
Definition
1-2
Normal (default)
2-3
Clear CMOS Data
