Summary of Contents for Hyundai R35Z-7

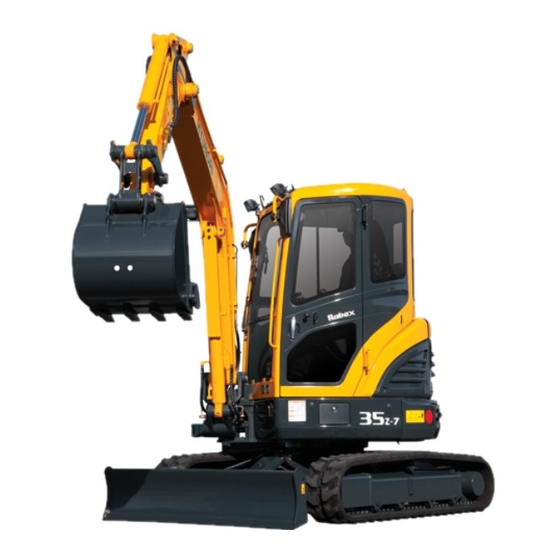

- Page 1 OPERATION MANUAL EXCAVATOR R35Z-7...
- Page 2 http://marengine.com/r35Z-7-excavator...
- Page 3 CONTENTS Foreword - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 0-1 7.
- Page 4 3. Use genuine Hyundai spare parts for the replacement of parts. We expressly point out that Hyundai will not accept any responsibility for defects resulting from non- genuine parts or non workmanlike repair. In such cases Hyundai cannot assume liability for any damage.
- Page 5 The procedures in this manual do not supersede any requirements imposed by federal, state, provincial or local laws. Hyundai can not anticipate every possible circumstance or environment in which this machine may be used and serviced. All personnel must remain alert to potential hazards.
- Page 6 E E C REGULATION APPROVED Noise level (EN474-1 ANNEX4.10 and 2000/14/EC) are as followings. : 94dB(EU only) : 75dB The value of vibrations transmitted by the operator's seat are lower than standard value of (EN474-1 ANNEX 4.3.1.3)
- Page 7 4. OPERATION OF WORKING DEVICE Confirm the operation of control lever and working device. Left control lever controls arm and swing. Right control lever controls boom and bucket. When you release the control lever, control lever returns to neutral position automatically. When operating swing, consider the swing distance by inertia.
- Page 8 4. FIXING THE MACHINE Lower down the working device on the loading plate of trailer. Starting switch Keep the safety lever on the LOCK position. Turn OFF all the switches and remove the key. Safety lever R35Z75TA12 Secure all locks. Cabin Tool box Engine hood...
- Page 9 5. LOADING AND UNLOADING BY CRANE Check the weight, length, width and height of the machine referring to the chapter 2, specification Wire rope when you are going to hoist the machine. Stay Use long wire rope and stay to keep the distance with the machine as it should avoid touching with the machine.
- Page 10 REPLACEMENT OF BUCKET When knocking the pin in with a hammer, metal particles may fly and cause serious injury, particularly if they get into your eyes. When carrying out this operation, always wear goggles, helmet, gloves, and other protective equipment. When the bucket is removed, place it in a stable condition.
- Page 11 REPLACEMENT OF BUCKET TOOTH Loosen the bolts and nuts. Remove dust and mud from surface of bucket by using knife. Fit news tooth to bucket. Fasten bolts and nuts. Personal injury can result from bucket falling. Bolt Block the bucket before changing tooth tips or side cutters.
- Page 12 8. AIR CONDITIONER AND HEATER CLEAN AND REPLACE OF THE HEATER FILTER Always stop the engine before servicing. Remove the screw(1) and heater cover(2) on the right side of cabin. Remove the heater filter(3). R35Z76MA27 Clean the filter using a pressurized air(Below 2kgf/cm , 28psi).
- Page 13 T T ROUBLESHOOTING GUIDE 1. ENGINE This guide is not intended to cover every conditions, however many of the more common possibilities are listed. Trouble Service Remark The engine oil pressure lamp Add the oil to the specified level. lights ON when engine speed is Replace the oil filter cartridge.
- Page 14 2. ELECTRICAL SYSTEM Trouble Service Remark Lamp does not glow brightly even Check for loose terminals and open-circuit wiring. when engine runs at high speed. Adjust belt tension. Lamp flickers while engine runs. Battery charging lamp does not Check the alternator. go out even when engine runs at Check and repair wiring.
- Page 15 3. OTHERS Trouble Service Remark Track slip out of place. Adjust tension of track. Excessive wear of the sprocket. Add oil to specified level. Bucket either rises slowly or not at all. Slow speed of travel, swing, Add oil to specified level. boom, arm and bucket.
- Page 16 One of spool of the main control valve should be connected to the tank. Select the size of pipe laying considering the back pressure. Shimless tube should be used for the piping. The hose and seal should be used Hyundai genuine parts.
- Page 17 INDEX After engine start - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-5 Hydraulic breaker - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8-1 Air cleaner filter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-23 Hydraulic oil changing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-26...
- Page 18 Service meter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4 Specification for major component - - - - - - - - - - - - - - - - - - - - - 2-9 Specification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-2 Start switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-7...
