Schäden haftet der Hersteller nicht. 1.3 Packungsinhalt überprüfen Kontrollieren Sie den Lieferumfang auf Vollständigkeit: - Klohäuschen/Baustellen-Toilette mit Figur, Antrieb und Anschlusskabeln - 3 Ersatzfiguren (nur bei Art. 1500) - Befestigungsring - Anleitung 2. Einleitung Die Tür des Klohäuschens/der Baustellen-Toilette öffnet und schließt sich und gibt...
Gebrauch aus. 5. Technische Daten Anschlüsse: Spannungsversorgung: gelb, braun Betriebsspannung: 10 – 16 V AC ~ (Mit und ohne Viessmann Powermodul, Art. 5215/5205) 14 – 24 V DC = 13 – 24 V Digitalsignal Betriebsstrom: < 100 mA Ruhestrom: <...

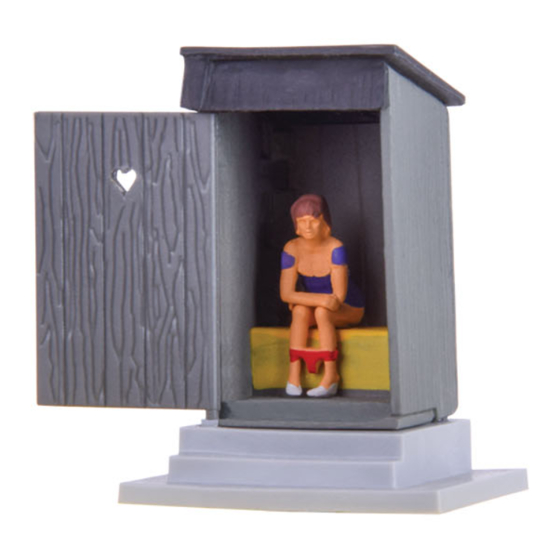

1.3 Checking the package contents Check the contents of the package for completeness: - Restroom/Road works restroom with figure, drive unit and connection cables - 3 additional figures (only for item 1500) - Retaining ring - Manual 2. Introduction The door of the restroom/the road works restroom opens and closes and allows a view of what is going on inside.
5. Technical data Connections: Power supply: yellow, brown Operating voltage: 10 – 16 V AC ~ (with and without Viessmann power module, items 5215/5205) 14 – 24 V DC = 13 – 24 V Digital signal Operating current: < 100 mA Standby current: <...
Abb. 1 Fig. 1 12 mm 90° Abb. 2 Fig. 2 z. B. / e. g. 1500 90° z. B. / e. g. 5200 Für Gleichstrom: braun = Pluspol For DC: brown = plus pole gelb / yellow blau blue...
