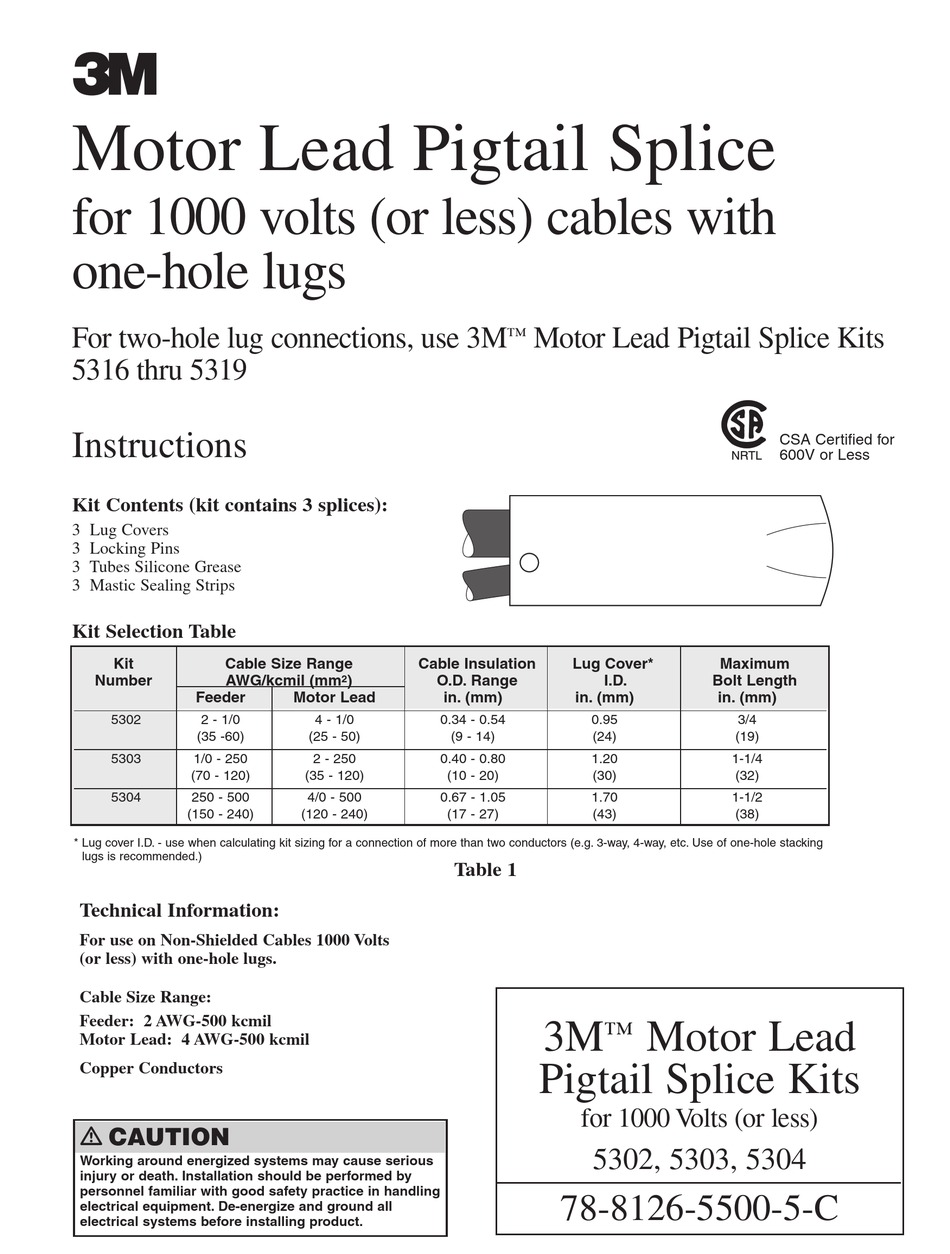

3M 5300 Series Instructions

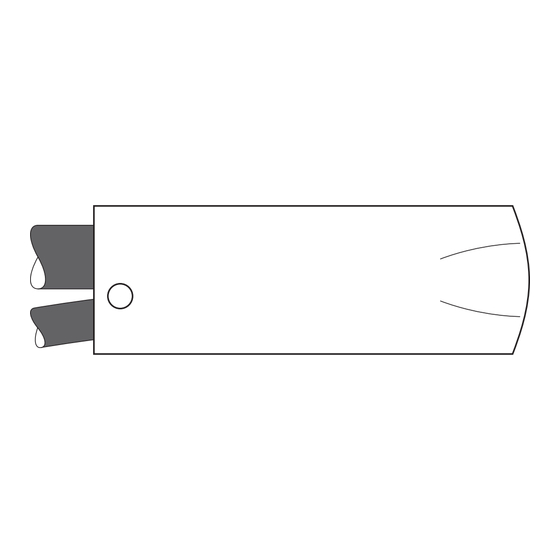

Motor Lead Pigtail Splice
for 1000 volts (or less) cables with
one-hole lugs
For two-hole lug connections, use 3M
5316 thru 5319
Instructions
Kit Contents (kit contains 3 splices):
3 Lug Covers
3 Locking Pins
3 Tubes Silicone Grease
3 Mastic Sealing Strips
Kit Selection Table
Kit Cable Size Range
Number AWG/kcmil (mm
Feeder
5302 2 - 1/0
(35 -60)
5303 1/0 - 250
(70 - 120)
5304 250 - 500
(150 - 240)
* L ug cover I.D. - use when calculating kit sizing for a connection of more than two conductors (e.g. 3-way, 4-way, etc. Use of one-hole stacking
lugs is recommended.)
Technical Information:
For use on Non-Shielded Cables 1000 Volts
(or less) with one-hole lugs.
Cable Size Range:
Feeder: 2 AWG-500 kcmil
Motor Lead: 4 AWG-500 kcmil
Copper Conductors
 Caution
Working around energized systems may cause serious
injury or death. Installation should be performed by
personnel familiar with good safety practice in handling
electrical equipment. De-energize and ground all
electrical systems before installing product.
Cable Insulation
) O.D. Range
2
Motor Lead in. (mm)
4 - 1/0 0.34 - 0.54
(25 - 50) (9 - 14)
2 - 250 0.40 - 0.80
(35 - 120) (10 - 20)
4/0 - 500 0.67 - 1.05
(120 - 240) (17 - 27)
Table 1
Motor Lead Pigtail Splice Kits
™
Lug Cover*
I.D.
in. (mm)
0.95
(24)
1.20
(30)
1.70
(43)
Motor Lead
3M
™
Pigtail Splice Kits
for 1000 Volts (or less)
5302, 5303, 5304
78-8126-5500-5-C
CSA Certified for
600V or Less
Maximum
Bolt Length
in. (mm)
3/4
(19)
1-1/4
(32)
1-1/2
(38)
