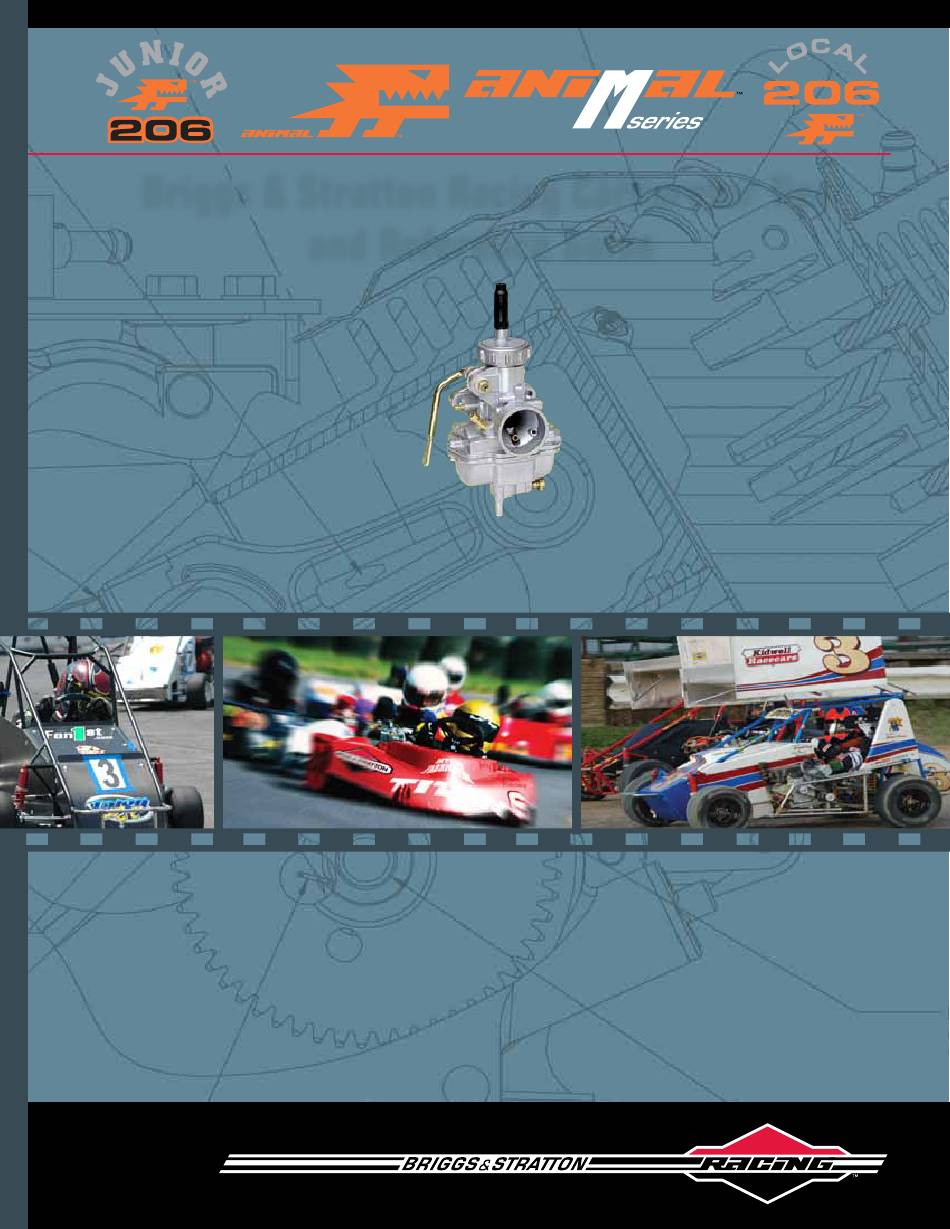

- Page 1 Briggs & Stratton Racing Carburetor Tips and Reference Guide Animal, 206, and M-series PZ-22...
- Page 2 PZ CARBURETOR PERFORMANCE TUNING AND MAINTENANCE All information provided is intended for use as a guideline for basic operation, tuning, and maintenance of the PZ slide valve carburetor used on your Briggs & Stratton® race engine. Contents: TUNING Idle and Low Speed Midrange/Part Throttle High Speed/Full Throttle TUNING TIPS...
- Page 3 TUNING Animal, 206, and M-series Rich and Lean: An internal combustion engine needs a specific ratio or mixture of air and fuel for best performance. This mixture is delivered by the carburetor. In the following discussion numerous references will be made to the air and fuel mixture (air/fuel ratio) being rich or lean.
