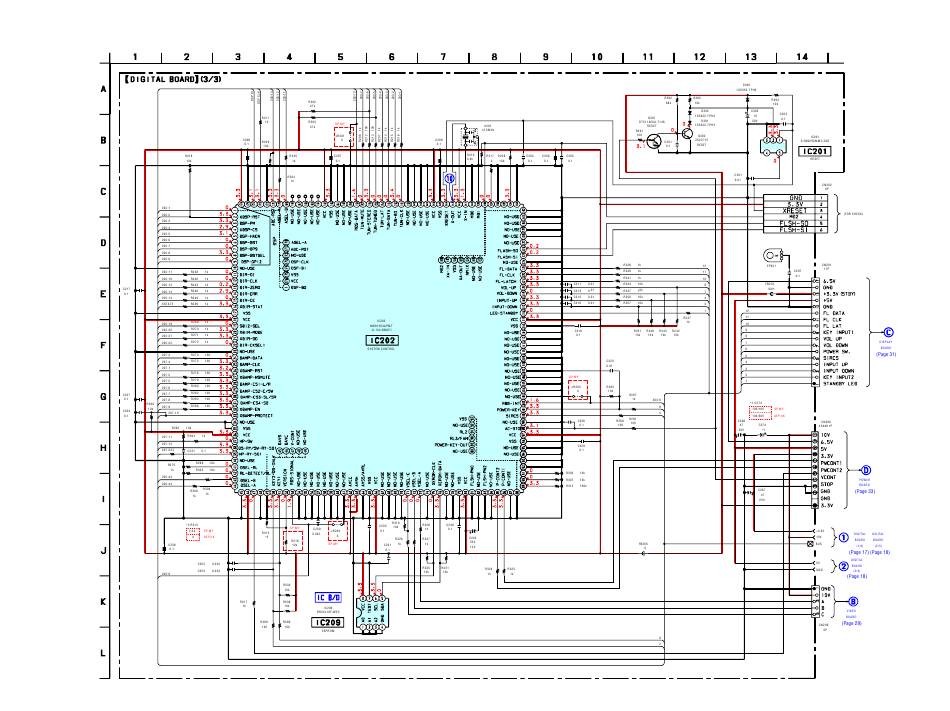

4-7. SCHEMATIC DIAGRAM — DIGITAL SECTION (3/3) — • See page 12 for Waveforms. • See page 34 for IC Block Diagrams. • See page 39 for IC Pin Function Description.
