Summary of Contents for Dyson Outsize

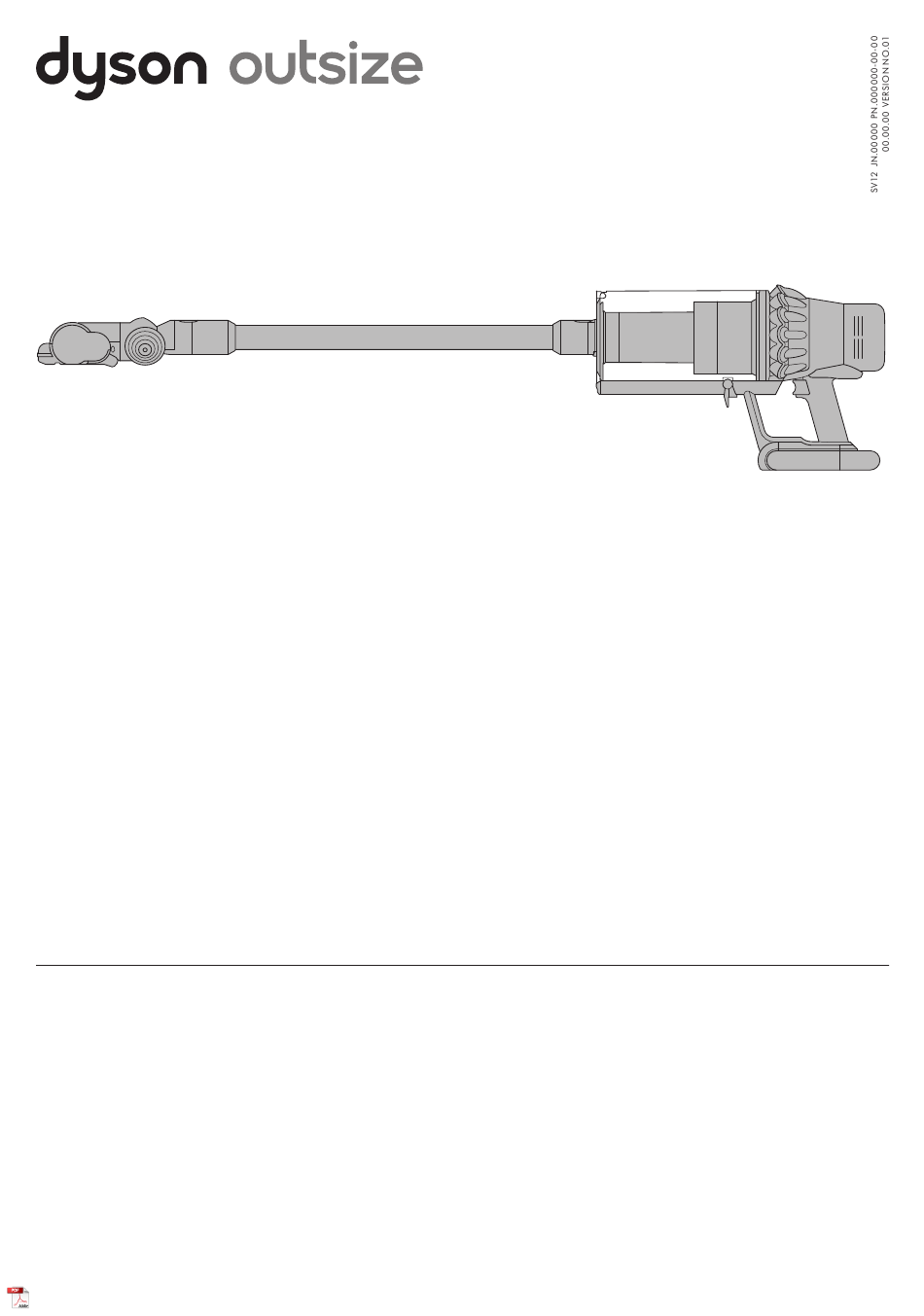

- Page 1 User manual In the box Clearing obstructions from your Getting started Digital Motorbar XL cleaner head The LCD screen Clearing blockages from your Caring for your floors Hair screw tool Charging your machine Washing your filter Changing your click-in battery Washing your Laser Slim Fluffy Emptying your bin cleaner head brush bar...
- Page 2 You can buy additional tools and accessories at www.dyson.com.au or www.dyson.co.nz A short nozzle with stiff A plastic clip that bristles on the underside. With an elbow...
-
Page 3: Getting Started
Auto and Med mode The optimum balance of power and run time. Attach your Digital Motorbar™ XL cleaner head to activate Auto mode. Dyson DLS™ technology automatically changes motor speed between floor types. The screen showing the machine set... -
Page 4: The Lcd Screen
The LCD screen The LCD screen shows the cleaning mode selected, remaining run time, filter maintenance and blockage information. Settings menu Control the settings on your machine using the Selection button. To enter the settings menu, press and hold the button until the menu screen The Selection button appears. - Page 5 Run time countdown When the battery needs charging, your machine will pulse three times and a low run time icon will appear on the screen. When your battery is empty, a red warning icon will appear on the screen. 4:50 When Particle count and graph is turned on, low run time will be in amber and red when in Boost mode.
- Page 6 Caring for your floors Check that the underside of the cleaner head or tool is clean and free from any objects that may cause damage. Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s recommended cleaning instructions. The brush bar on your machine can damage certain flooring. Some rug materials may fuzz if a rotating brush bar is used when vacuuming.
- Page 7 Emptying your bin The MAX mark on the bin of Empty as soon as the dirt reaches the MAX level – don’t overfill. Using your the machine, showing that machine when the dirt is above the MAX line may affect the performance the dirt should not be filled and require more frequent filter washing.
-
Page 8: Clearing Blockages
Cleaning your bin The bin being removed and the location of the bin release lever on the underside of the bin runner. Remove your bin If it is necessary to clean your bin, empty it as shown in the ‘Emptying your bin’... - Page 9 Clearing obstructions from your Digital Motorbar XL cleaner head Your Digital Motorbar XL cleaner head doesn't have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Make sure your machine is disconnected from the charger and take care not to touch the trigger.
- Page 10 Clearing blockages from your Hair screw tool Your Hair screw tool doesn't have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Make sure your machine is disconnected from the charger and take care not to touch the trigger.
-
Page 11: Washing Your Filter
Wash your filter at least once a month to maintain optimum suction power. For more information and support videos for your machine go online: www.dyson.com/support Twist off your filter Twist your filter anti-clockwise and pull it away from your machine. - Page 12 Washing your Laser Slim Fluffy cleaner head brush bar Your Laser Slim Fluffy cleaner head has a washable brush bar. To maintain optimum performance, check and wash your brush bar regularly. Make sure your machine is disconnected from the charger and take care not to touch the trigger.
- Page 13 Cleaning your tools Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners. Wipe with a damp, lint-free cloth, without touching the connector end. Make sure your tools are completely dry before using. Some tools may not be included in the box.
-
Page 14: Looking After Your Machine
5°C (41°F). This is designed to protect both the motor and battery. Your serial numbers You can find your serial numbers on your machine, battery and charger. Use your serial number to register. For more information and support videos for your machine go online: www.dyson.com.au or www.dyson.co.nz...
