Jet BDB-1340A Parts List

Jet bdb-1340a lathe machine: specifications
Hide thumbs Also See for BDB-1340A:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

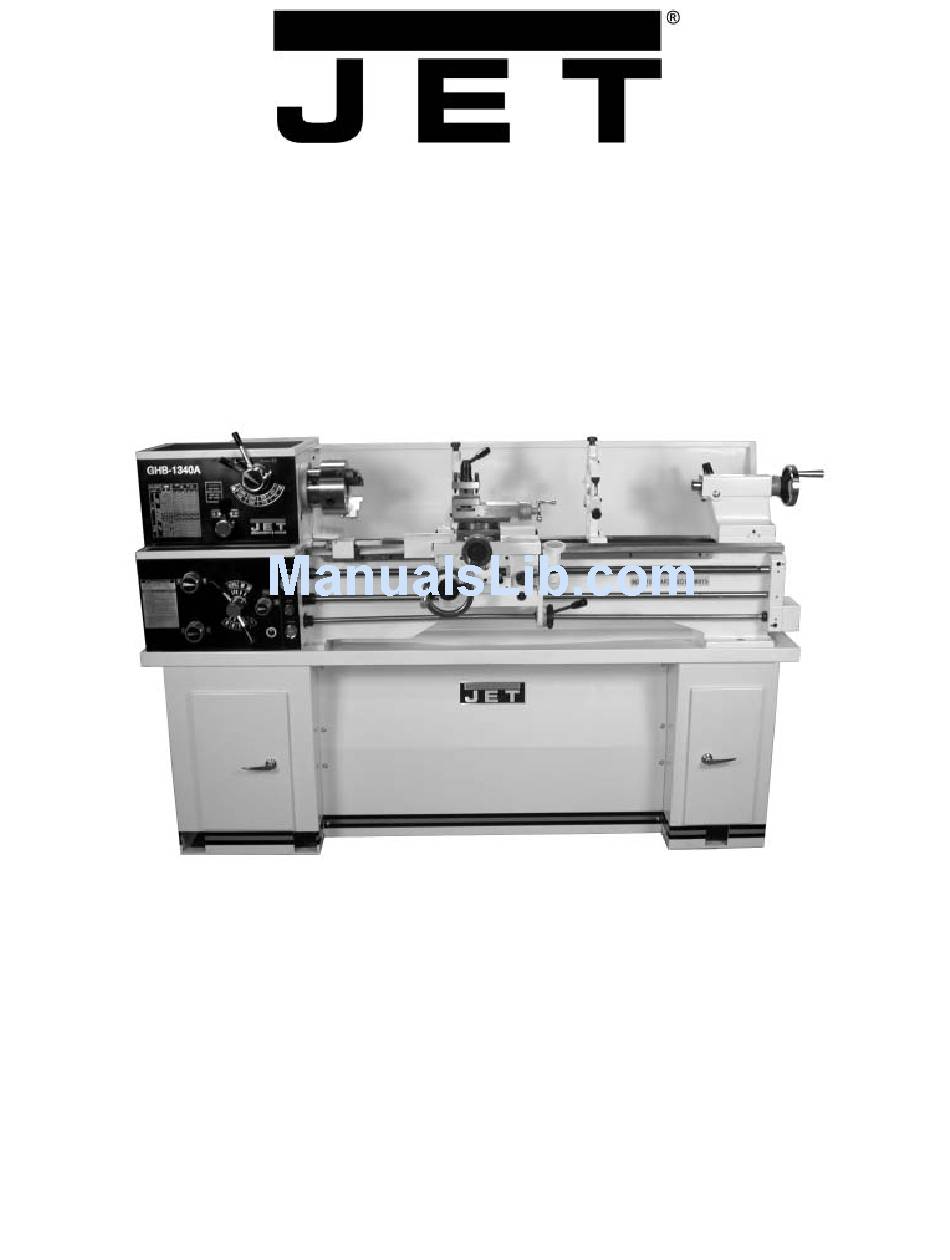

GHB-1340A / BDB-1340A
JET
WMH Tool Group
www.jettools.com

Parts List

(GHB-1340A shown with optional stand 321443K)
P.O. BOX 1349
Auburn, WA 98071-1349
e-mail
jet@jettools.com
Phone: 253-351-6000
Fax: 1-800-274-6840
M-321357A
06/02

Advertisement

Table of Contents
loading

Related Manuals for Jet BDB-1340A

Summary of Contents for Jet BDB-1340A

  • Page 1: Parts List

    GHB-1340A / BDB-1340A (GHB-1340A shown with optional stand 321443K) WMH Tool Group www.jettools.com Parts List P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com Phone: 253-351-6000 Fax: 1-800-274-6840 M-321357A 06/02...

  • Page 2: Table Of Contents

    Top Slide, Tool Post, Saddle and Cross Slide Assembly II ...34-35 Tailstock Assembly I ...36-37 Tailstock Assembly II ...38-39 Follow Rest...40 Steady Rest ...41-42 Additional Parts ...43 Additional Electrical Components...43 Electrical Schematic - GHB-1340A...44 Electrical Schematic - BDB-1340A ...45 Wiring Photo GHB-1340A ...46 Wiring Photo BDB-1340A...47...

  • Page 3: Bdb-1340A Headstock Assembly I

    BDB-1340A Headstock Assembly I...

  • Page 4: Bdb-1340A Headstock Assembly I

    BDB-1340A Headstock Assembly I Index Part Description 1...04101B ... Headstock Casting..1 10 ...TS-1482021 ... Hex Socket Cap Screw ...M6 x 12... 4 11 ...04501A ... Inlet Plug ..2 13 ...BDB1340-H13 ... Oil Sight Glass..2 14 ...TS-1503031 ...

  • Page 5: Bdb-1340A Headstock Assembly Ii

    BDB-1340A Headstock Assembly II...

  • Page 6: Bdb-1340A Headstock Assembly Ii

    BDB-1340A Headstock Assembly II Index Part Description Size Qty. 2...TS-1503051 ... Hex Socket Cap Screw ...M6 x 20... 4 3...BB-30212... Taper Roller Bearing ...60 x 110 x 22... 1 4...BDB1340-H4... Oil Seal...PG60 x 80 x 12 ... 1 5...OS-709012... Oil Seal...SG70 x 90 x 12 ... 1 6...BB-30211 ...

  • Page 7: Bdb-1340A Headstock Assembly Iii

    BDB-1340A Headstock Assembly III...

  • Page 8: Bdb-1340A Headstock Assembly Iii

    BDB-1340A Headstock Assembly III Index Part Description 8...TS-1524021 ... Set Screw...M8 x 10... 1 15-1...TS-1540061 ... Nut ...M8 ... 1 44 ...04704... Eccentric Shaft ..1 45 ...04103A ... Bushing ..1 46 ...04109A ... Gear ...2m52T, 2m22T ... 1 47 ...TS-1523011 ...

  • Page 9: Ghb-1340A Headstock Assembly I

    GHB-1340A Headstock Assembly I...
  • Page 10 GHB-1340A Headstock Assembly I Index Part Description Size Qty. 7...GHB1340A-02101 ... Gear Box ..1 9...04109... Shift Lever ..1 10 ...04111 ... Shaft Housing ..1 11 ...GHB1340A-02102 ... Cover..1 12 ...GHB1340A-04117 ... Handle Hub ..1 13 ...04121...

  • Page 11: Ghb-1340A Headstock Assembly Ii

    GHB-1340A Headstock Assembly II...

  • Page 12: Ghb-1340A Headstock Assembly Ii

    GHB-1340A Headstock Assembly II Index Part Description Size Qty. 4...04104Z... Rear Cover ..1 5...04105... Pulley ..1 6...GHB1340-4106 ... Plug..1 25 ...04209... Gear ...2m43T ... 1 26 ...GHB1340-4210 ... Gear ...2m51T ... 1 27 ...04211 ... Spacer ..1 28 ...04212...

  • Page 13: Ghb-1340A Headstock Assembly Iii

    GHB-1340A Headstock Assembly III...

  • Page 14: Ghb-1340A Headstock Assembly Iii

    GHB-1340A Headstock Assembly III Index Part Description Size Qty. 1...GHB1340A-02103 ... Collar..1 2...04102... Collar..1 3...GHB1340-4103 ... Rear Cover ..1 8...04108Z... Front Cover ..1 17 ...04201... Gear ...2m37T ... 1 18 ...04202Z... Spacer ..1 19 ...04203Z...

  • Page 15: Bed Assembly I

    Bed Assembly I...
  • Page 16 12 ...GHB1340A-12B ... Pin...5 x 35... 2 14 ...32A1105... Collar..1 15 ...32A1106... Collar..1 16 ...GHB1340A-1701... Lead Screw ...GHB-1340A... 1 ...BDB1340A-1701 ... Lead Screw ...BDB-1340A ... 1 17 ...321728... Key..1 18 ...321706... Collar..1 19 ...GHB1340A-1702... Feed Rod...GHB-1340A... 1 ...BDB1340A-1702 ...
  • Page 17 Index Part Description 49 ...TS-1505051 ... Hex Socket Cap Screw ...M10 x 35 ... 4 50 ...TS-1502021 ... Socket Head Cap Screw...M5 x 10... 4 51 ...TS-1503061 ... Hex Socket Cap Screw ...M6 x 25... 8 53 ...TS-1540061 ... Hex Nut ...M8 ... 4 54A...TS-1492061 ...

  • Page 18: Bed Assembly Ii

    Bed Assembly II...

  • Page 19: Bed Assembly Ii

    Index Part Description 52 ...GHB1340A-18701 ... Electrical Box...GHB-1340A... 1 52A...BDB1340A-18701 ... Electrical Box...BDB-1340A ... 1 55 ...GHB1340A-55B ... Screw ...M6 x 20... 4 56 ...GHB1340A-56B ... Nut ...M6 ... 4 57 ...GHB1340A-57B ... Screw ...M6 x 10... 4 58 ...GHB1340A-12701 ... Splash Guard...GHB-1340A... 1 ...BDB1340A-12701B ...

  • Page 20: Gear Assembly I

    Gear Assembly I...

  • Page 21: Gear Assembly I

    Index Part Description 1...05101A ... Casting ..1 2...05715... Right cover ..1 3...05720... Left cover..1 4...32A5308 ... Slipper ..1 5...32A5111A... Lever ..1 6...32A5108A ... Lever ..1 7...32A5307 ... Slipper ..1 8...32A5702 ...

  • Page 22: Gear Assembly Ii

    Gear Assembly II...

  • Page 23: Gear Assembly Ii

    129 ...05301... Sliding Bearing ..1 130 ...TS-1503031 ... Socket Head Cap Screw...M6 x 12... 6 131 ...GHB1340A-05712 ... Connecting Sleeve...GHB-1340A... 1 ...BDB1340A-05712 ... Connecting Sleeve...BDB-1340A ... 1 133 ...05303... Bearing Housing ..1 Gear Assembly II Size...

  • Page 24: Gear Assembly Iii

    Gear Assembly III...

  • Page 25: Gear Assembly Iii

    Gear Assembly III Index Part Description Size Qty. 21 ...32A5113... Cover..1 22 ...32A5503 ... Gasket..1 50 ...32A5115... End Cover ..1 52 ...32A5718A ... Gear ...2.5m30T, 15T ... 1 53 ...32A5721A ... Gear ...2.25m, 3.25m, 2.5m18T ... 1 54 ...05701...

  • Page 26: Apron Assembly I

    Apron Assembly I...

  • Page 27: Apron Assembly I

    Apron Assembly I Index Part Description Size Qty. 1...GHB1340A-06101A... Casting ..1 3...06103... Housing ..1 4...06104... Cover..1 7...06107... Gib ..1 8...06208... Handle Hub ..1 9...06209... Handle..1 13 ...06213... Gear Pin ..1 16A...06415...

  • Page 28: Apron Assembly Ii

    Apron Assembly II...

  • Page 29: Apron Assembly Ii

    Apron Assembly II Index Part Description Size Qty. 2...06102... Handwheel ..2 5A...06105A ... Hub ..1 10 ...06510... Index Ring ..1 11 ...Z06111 ... Cover..1 12 ...06212... Shaft...1.5m14T... 1 14 ...06214... Gear Shaft ...1.5m13T... 1 15 ...06215...

  • Page 30: Apron Assembly Iii

    Index Part Description 5...Z06105... Threading Dial Body ..1 6...06206... Washer ..1 35 ...06233... Threading Dial Shaft ..1 38 ...06236... Gear ...1m32T ... 1 39 ...06237... Spacer ..2 66 ...TS-1504101 ... Hex Socket Cap Screw ...M8 x 50... 1 84 ...GHB1340-A84...

  • Page 31: Micro Carriage Stop Assembly

    Index Part Description 1...GHB1340A-01707 ... Dial..1 2...GHB1340A-MS02... Pin...B3 x 6 ... 1 3...GHB1340A-01716 ... Axle ..1 4...GHB1340A-01107 ... Stop..1 5...ZX-03302 ... Indicator Plate..1 6...ZX-MS06... Pin...3 x 8... 2 7...TS-1523031 ... Socket Set Screw ...M6 x 10... 1 8...GH1340A-01108 ...
  • Page 32 Top Slide, Tool Post, Saddle, and Cross Slide I...
  • Page 33 Top Slide, Tool Post, Saddle, and Cross Slide I Index Part Description Size Qty. 3...07103... Swivel Slide ..1 4...07104... Top Slide..1 5...07111 ... Collar..1 6...07117 ... Gib ..1 12 ...07205... Screw ..1 13 ...07206...
  • Page 34 Top Slide, Tool Post, Saddle, and Cross Slide II...
  • Page 35 Top Slide, Tool Post, Saddle, and Cross Slide II Index Part Description Size Qty. 1...07101... Saddle ..1 2...07102... Cross Slide ..1 7...07120N ... Bearing Housing ..1 8...07123... Strip..1 9...07131... Gib ..1 10 ...07132...

  • Page 36: Tailstock Assembly I

    Tailstock Assembly I...

  • Page 37: Tailstock Assembly I

    Index Part Description 1...Z08101... Casting ..1 2...Z08102... Flange Cover..1 3...08103... Hand Wheel..1 7...08202... Quill..1 8...Z08203... Screw ..1 9...GHB1340-09TS... Washer ..1 10 ...Z08205... Screw ...M8 x 20... 1 11 ...08206... Screw ..1 12 ...Z08207...

  • Page 38: Tailstock Assembly Ii

    Tailstock Assembly II...

  • Page 39: Tailstock Assembly Ii

    Tailstock Assembly II Index Part Description Size Qty. 4...08104... Clamp Plate..1 5...08105... Base ..1 15 ...08211 ... Collar..1 16 ...08212... Screw ..1 19 ...08213... Shaft..1 20 ...08214... Lever ..1 30 ...GHB1340-147 ...

  • Page 40: Follow Rest

    Index Part Description 1...GHB1340-1FR ... Knob... 2 2...GHB1340-2FR ... Pin...3 x 18 ... 2 3...10208... Bushing ... 2 4...10204... Screw ... 2 5...10201... Sleeve ... 2 6...10401... Brass Finger ... 2 7...TS-1523011 ... Set Screw...M6 x 8 ... 2 8...TS-1540041 ... Nut ...M6... 2 9...TS-1523051 ...

  • Page 41: Steady Rest

    Steady Rest...
  • Page 42 Steady Rest Index Part Description Size Qty. 1...GHB1340-1FR ... Knob..3 2...GHB1340-2FR ... Pin...3 x 18... 3 3...10203... Bushing ..3 4...10204... Screw ..3 5...10201... Sleeve ..3 6...10401... Brass Finger ..3 7...10205... Lock Knob ..1 8...TS-1540041 ...

  • Page 43: Additional Parts

    ...321320... Motor (2HP, 1Ph, 60HZ 230V only for GHB-1340A)..1 ...GHB1340-MP... Motor Pulley..1 ...321321... Motor (2HP, 1Ph, 60HZ 230V only for BDB-1340A) ..1 ...BDB1340-MP ... Motor Pulley..1 ...GHB1340-C ... Capacitor (same with BDB-1340A)..1 ...GHB1340-CC...

  • Page 44: Electrical Schematic - Ghb-1340A

    Electrical Schematic - GHB-1340A Electrical Schemaatic-GHB-1340A Index Part Description 1...GHB1340-SB1 ... Emergency Stop ...LAY3-01ZS/1... 1 2...GHB1340-SB2 ... Jog Button ...LAY3-11... 1 3...GHB1340-HL ... Power Indicator Light ...AD1-30/20 ... 1 4...GHB1340-KA1 ... Magnetic Starter...CA2-DN140... 1 5...GHB1340-KM1... Magnetic Starter...LC1-D259 ... 1 6...GHB1340-KM2... Magnetic Starter...LC1-D259... 1 7...GHB1340-TC ...

  • Page 45: Electrical Schematic-Bdb-1340A

    Electrical Schematic-BDB-1340A Electrical Schematic - BDB-1340A Index Part Description Size Qty. 1 ...GHB1340-KA1 ... Relay...CA2-DN140... 1 2 ...GHB1340-KM1... A.C. Contactor ...LC1-D259... 1 3 ...GHB1340-KM2... A.C. Contactor ...LC1-D259... 1 4 ...GHB1340-TC ... Control Transformer...JBK3-63 ... 1 5 ...GHB1340A-SQ2... Stroke Switch...LXW5-11D1... 1 6...GHB1340A-SQ3...
  • Page 46 GHB-1340A Wiring Photo...
  • Page 47 BDB-1340A Wiring Photo...

This manual is also suitable for:

Ghb-1340a
