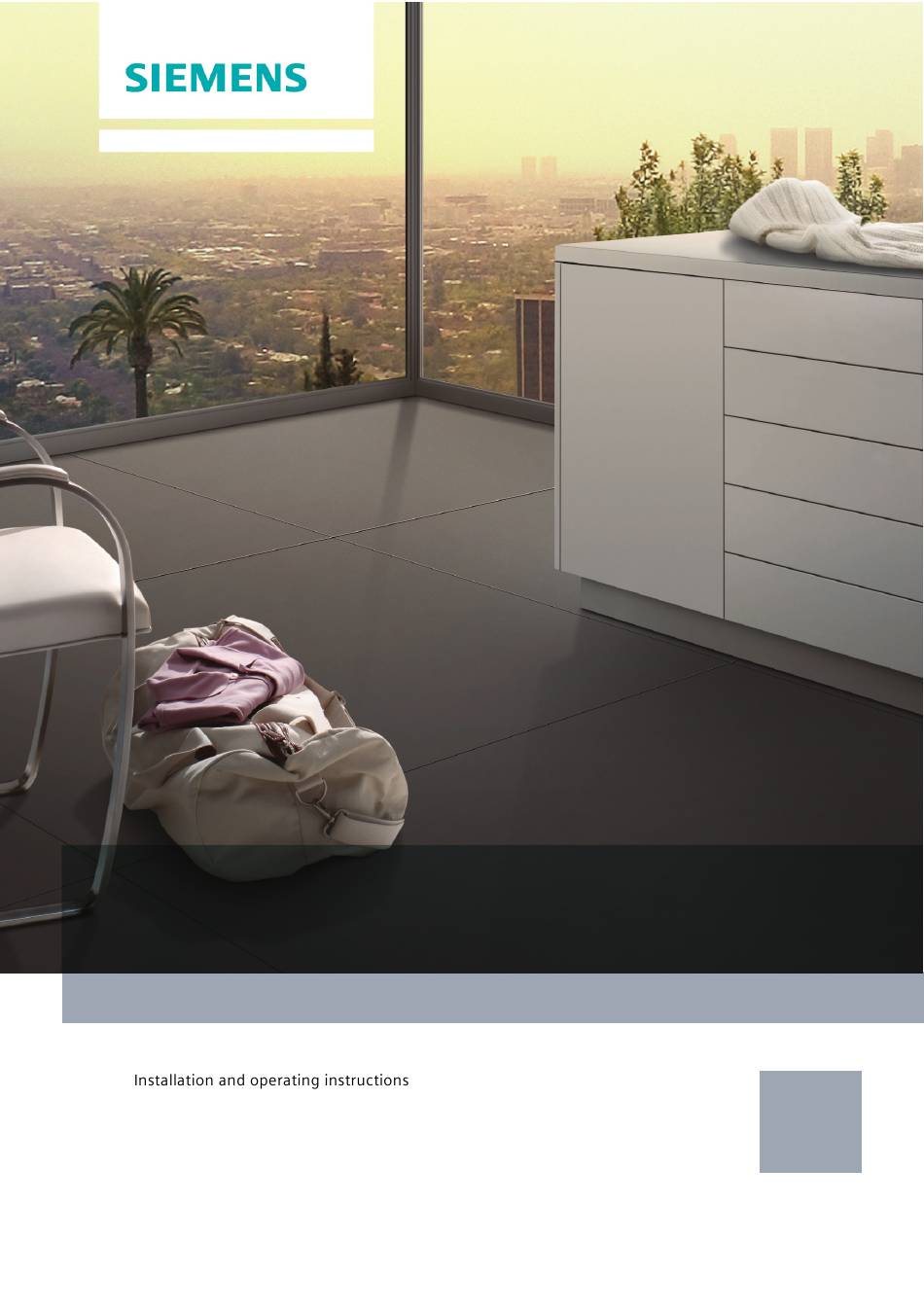

- Page 1 Tumble dryer WT34A2L7DN siemens-home.bsh-group.com/welcome Register your product online...
- Page 2 Caution! To meet the high quality demands required by Siemens, every tumble dryer This signal word indicates a possibly that leaves our factory is carefully dangerous situation. Not heeding the checked to ensure that it functions caution can cause property and/or correctly and is in perfect condition.
-
Page 3: Table Of Contents
Contents e n I n s t a l l a t i o n a n d o p e r a t i n g i n s t r u c t i o n s Intended use....4 Operating the appliance . -
Page 4: Intended Use
Intended use Intended use Safety instructions The following safety information This appliance is intended for private ■ I n t e n d e d u s e S a f e t y i n s t r u c t i o n s and warnings are provided to domestic use only. - Page 5 Safety instructions Do not allow children to Warning ■ clean or maintain this Risk of suffocation! appliance unsupervised. If allowed to play with the Keep children under 3 years packaging/plastic film or ■ and pets away from this packing components, children appliance.
-
Page 6: Installation
Safety instructions The mains plug must be Installation ■ freely accessible at all times. Warning If this is not possible, in Risk of electric shock/fire/ order to comply with the material damage/damage to relevant safety regulations, a the appliance! switch (2-pole switch-off) If the appliance is not installed must be built into the properly, this may lead to a... - Page 7 Safety instructions Warning Warning Risk of fire/poisoning! Risk of injury/material damage/damage to the Connecting the exhaust air duct to ventilation shafts or appliance! chimneys to which gas or coal- The appliance may vibrate or ■ burning stoves, cookers or move when in operation, ovens or gas-fired space potentially resulting in injury heaters are already connected...
-
Page 8: Operation
Safety instructions Do not place laundry in this Warning ■ appliance to be dried if the Risk of injury! laundry has not been The appliance is very heavy. ■ washed first. Lifting it may result in injury. Do not use the appliance if Do not lift the appliance on ■... - Page 9 Safety instructions Warning Warning Risk of fire/material damage/ Risk of poisoning! damage to the appliance! If additional appliances (such If a program is terminated as gas heaters, gas-fired before the drying cycle has tankless water heaters, coal- finished, this prevents the burning stoves connected to a laundry from cooling down chimney or open fireplaces) are...
- Page 10 Safety instructions Warning Caution! Risk of injury! Material damage/damage to If you support your weight/sit the appliance ■ on the appliance door when If the amount of laundry in ■ it is open, the appliance may the appliance exceeds its tip over, which may result in maximum load capacity, it injury.
-
Page 11: Cleaning/Maintenance
Safety instructions If you pour the wrong Cleaning/Maintenance ■ quantity of detergent or Warning cleaning agent into the Risk of death! appliance, this may result in The appliance is powered by material damage or damage electricity. There is a risk of to the appliance. - Page 12 Safety instructions Warning Warning Risk of poisoning! Risk of injury/material damage/damage to the Poisonous fumes may be given off by cleaning agents that appliance! contain solvents, e.g. cleaning The use of spare parts and solvent. accessories supplied by other Do not use cleaning agents that brands is dangerous and may contain solvents.
-
Page 13: Environmental Protection
Environmental protection Environmental Installation and protection connection Packaging/old appliance Scope of delivery E n v i r o n m e n t a l p r o t e c t i o n I n s t a l l a t i o n a n d c o n n e c t i o n Dryer ■... -
Page 14: The Dryer
Installation and connection During installation, ensure that: Warning Children may lock themselves in the The dryer is placed on a clean, level ■ dryer, putting their lives at risk! and firm surface, Do not set up the dryer behind a door The mains plug can be accessed at ■... -
Page 15: Installation For The Exhaust Air Duct
Installation and connection Installation for the exhaust air Connections on the dryer duct Connections for an exhaust air duct are located: Caution! on the back panel Damage to the appliance ■ Inappropriate connecting of the exhaust air duct to the dryer may cause damages to the appliance. - Page 16 Installation and connection Seal the opening in the back panel Pressure losses through friction with the cover. Duct or pipe friction resistance, i.e. friction on the inside of the exhaust air duct, affects the air flow as follows: the smoother the internal wall ■...
- Page 17 Installation and connection Individual pressure loss values Pipe connection diameter > 100 mm Flat duct connection Internal wall Pipe, Flexible Flexible 110 x 54 220 x 54 smooth pipe, pipe, cor- smooth smooth grooved rugated Model variant straight piece per 1 m length Fixtures Bend R = 300 mm...
- Page 18 Installation and connection Total pressure loss values Installation options for the exhaust air duct: Total pressure loss Pipe connection Through a wall box into the open ■ 0 - 50 Example: pipe connection - inside 0 - 80 diameter = 100 mm, smooth A = straight piece (1.0 m) B = curved pipe (R = 200 mm) C = straight piece (1.5 m)
- Page 19 Installation and connection Directly into the open air Caution! ■ Route the exhaust air duct directly Risk of poisoning into the open air via an exhaust air If other appliances are operated in pipe through an open window. the room where the appliance is Example: pipe connection - inside installed or in adjoining rooms, e.g.
-
Page 20: Optional Accessories
Installation and connection Optional accessories When connecting to the interception pipe, avoid the following: mutual interference between dryers Washer-dryer stack connection set: ■ ■ discharge of moisture in the washing To save space, the dryer can be ■ and drying room placed on top of a suitable washing higher pressure losses (increase in machine of the same width and... -
Page 21: The Main Points In Brief
The main points in brief The main points in brief T h e m a i n p o i n t s i n b r i e f Load the laundry and close Switch on the dryer. Select a program and, if the door. -
Page 22: Getting To Know Your Appliance
Getting to know your appliance Getting to know your appliance Dryer G e t t i n g t o k n o w y o u r a p p l i a n c e ( Control and display panel 0 Fluff filter 8 Dryer door... -
Page 23: Control Panel
Getting to know your appliance Control panel ( Use the program selector to switch the dryer on and off and to select the program. 0 Programm ~ Page 26. 8 Start button for starting or interrupting the program ~ Page 28. @ Buttons ~ Page 28. -
Page 24: Display Panel
Getting to know your appliance Display panel Buttons in the display panel Display panel ( Select the degree of dryness. Fine adjustment of the dryness level. 0 Select the drying time. Anti-crease selected. 8 Select the Ready in time. Ý Childproof lock selected. -
Page 25: Laundry
Laundry Sorting laundry according to: Laundry c Suitable for tumble drying P reparing the laundry a Dry at normal temperature L a u n d r y ` Dry at low temperature Warning Risk of explosion or fire! b Do not tumble-dry Remove any cigarette lighters and Do not load laundry from the matches from pockets. -
Page 26: Programs And Buttons
Programs and buttons Programs and buttons Programs P r o g r a m s a n d b u t t o n s Program and fabrics Maximum load and program set- tings/info Name of the program The maximum load is based on the dry weight of the fabrics Which fabrics is the program suitable for? Possible program settings... - Page 27 Programs and buttons Warm û 3 kg All types of fabric; time programme. You can adjust the programme length using the button for Suitable for pre-dried or slightly damp laundry and for drying off the drying time. multi-layered, thick laundry. Notes Only dry wool, sports shoes and soft toys with the basket for ■...
-
Page 28: Buttons
Programs and buttons Buttons Buttons Explanations and notes Not all buttons and their functions can be selected in all programs. Note: Ô (Degree If the laundry is too damp after drying, you can finely adjust the dryness levels of dryness) e.g. -
Page 29: Operating The Appliance
Operating the appliance Default program settings are Note: Operating the standard settings that are already defined when a program is selected. appliance After selecting a program, you can see the default program settings in Loading laundry and the display panel. O p e r a t i n g t h e a p p l i a n c e switching on the dryer If required, adjust the default... -
Page 30: Changing The Program Or Adding Laundry
Operating the appliance Changing the program or Removing laundry and adding laundry switching off the dryer You can remove or add laundry and Remove the laundry. change or alter the program at any time Turn the program selector to the "off" during drying. - Page 31 Operating the appliance Remove the fluff from the recess in the fluff filter. Ensure that no fluff falls into Note: the open shaft. Remove all the fluff from the filter. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
-
Page 32: Signal Setting
Signal setting The volume of the audible signal at Signal setting the end of the program is shown in the display. You can change the following settings: S i g n a l s e t t i n g The spin speed that is used for ■... -
Page 33: Cleaning
Cleaning Cleaning the moisture sensor Cleaning The dryer is equipped with a Note: C leaning the dryer and the stainless-steel moisture sensor. The C l e a n i n g control panel moisture sensor measures how damp the laundry is. After long periods of usage the moisture Warning sensor may become covered by a fine... -
Page 34: Faults And What To Do About Them
Faults and what to do about them Faults and what to do about them F a u l t s a n d w h a t t o d o a b o u t t h e m Faults Cause/remedy ¥... - Page 35 Faults and what to do about them Faults Cause/remedy Laundry is not dried cor- After the end of the program, warm laundry feels damper than it actually is. ■ rectly or is still too damp. Spread the laundry out and allow the heat to disperse. Finely adjust the dryness level –...
-
Page 36: After-Sales Service
After-sales service After-sales service After-sales service A f t e r - s a l e s s e r v i c e If you cannot rectify the fault yourself (faults, what to do?), please contact our after-sales service. We will always find an appropriate solution to avoid unnecessary visits by engineers. -
Page 37: Consumption Values
Consumption values Consumption values Consumption values table C o n s u m p t i o n v a l u e s Program Spin speed which is Duration** Energy consumption** used for spinning the laundry Cottons 7 kg 3.5 kg 7 kg 3.5 kg... -
Page 38: Technical Data
Technical data Technical data Dimensions: T e c h n i c a l d a t a 85 x 60 x 60 cm Height x width x depth Weight: Approx. 37 kg Maximum load: 7 kg Connected voltage: 220 - 240 V Connected load: Max. - Page 40 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.) You can find the contact information for all countries in the attached after-sales service directory. BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY siemens-home.bsh-group.com *9001288841* 9001288841 (9704)
