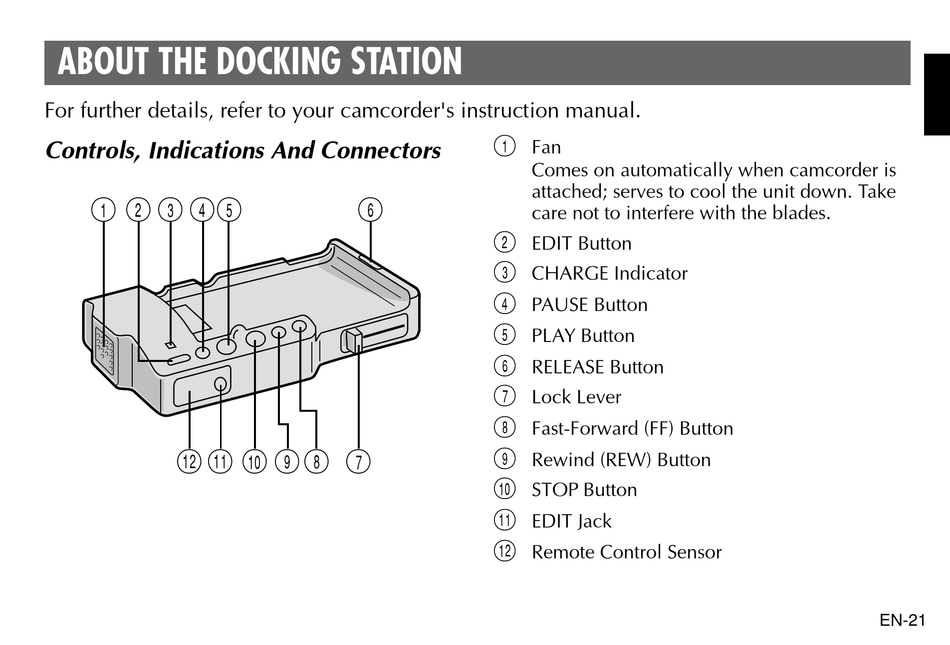

ABOUT THE DOCKING STATION

For further details, refer to your camcorder's instruction manual.
Controls, Indications And Connectors
1 2 3 45
@ ! 0 9 8 7
1
Fan
Comes on automatically when camcorder is
attached; serves to cool the unit down. Take
6
care not to interfere with the blades.
2
EDIT Button
3
CHARGE Indicator
4
PAUSE Button
5
PLAY Button
6
RELEASE Button
7
Lock Lever
8
Fast-Forward (FF) Button
9
Rewind (REW) Button
0
STOP Button
!
EDIT Jack
@
Remote Control Sensor
