– Recording –

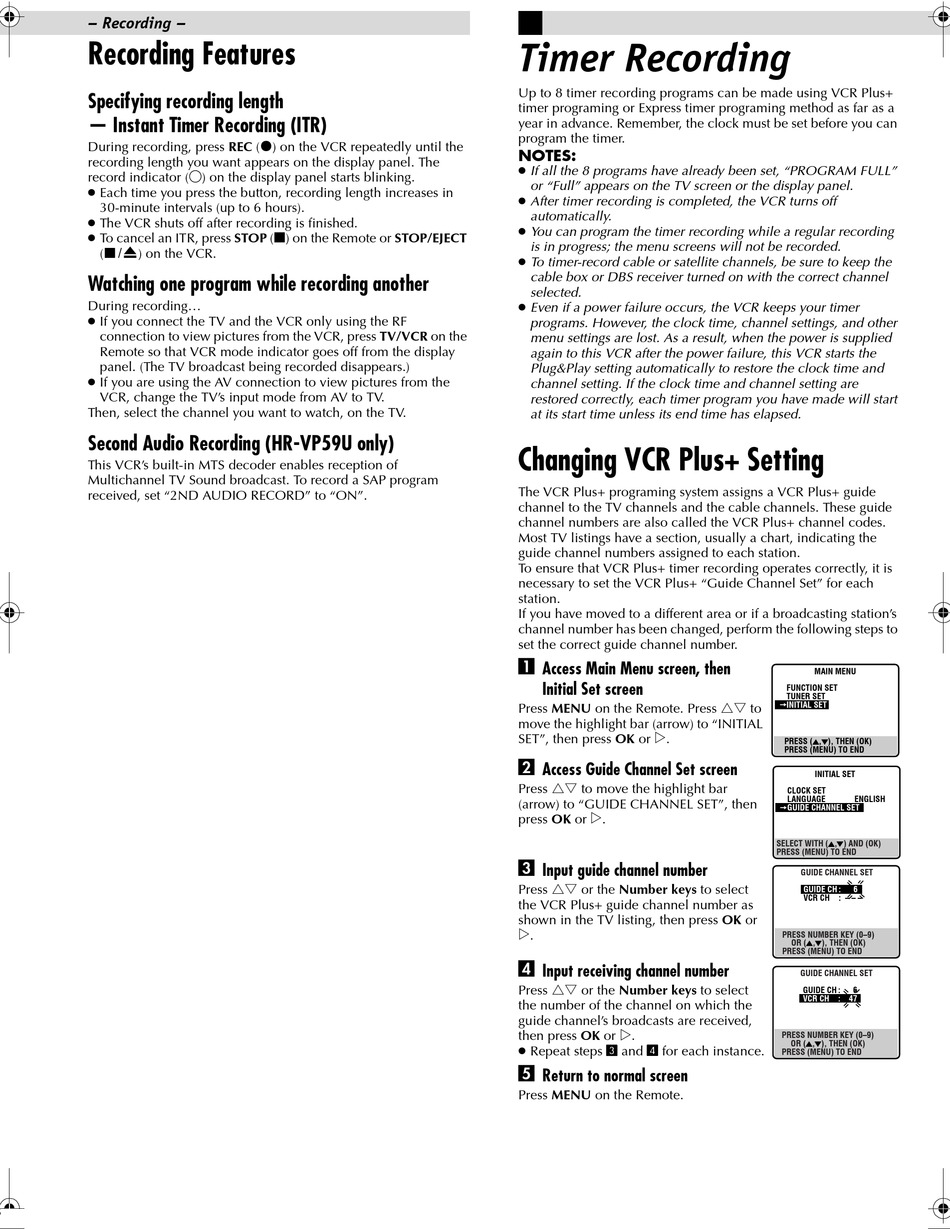

Recording Features

Specifying recording length
— Instant Timer Recording (ITR)
During recording, press REC (
recording length you want appears on the display panel. The
record indicator ( ) on the display panel starts blinking.
Each time you press the button, recording length increases in
30-minute intervals (up to 6 hours).
The VCR shuts off after recording is finished.
To cancel an ITR, press STOP (
( ) on the VCR.
0
Watching one program while recording another
During recording...
If you connect the TV and the VCR only using the RF
connection to view pictures from the VCR, press TV/VCR on the
Remote so that VCR mode indicator goes off from the display
panel. (The TV broadcast being recorded disappears.)
If you are using the AV connection to view pictures from the
VCR, change the TV's input mode from AV to TV.
Then, select the channel you want to watch, on the TV.
Second Audio Recording (HR-VP59U only)
This VCR's built-in MTS decoder enables reception of
Multichannel TV Sound broadcast. To record a SAP program
received, set "2ND AUDIO RECORD" to "ON".
) on the VCR repeatedly until the
7
) on the Remote or STOP/EJECT
8

Timer Recording

Up to 8 timer recording programs can be made using VCR Plus+
timer programing or Express timer programing method as far as a
year in advance. Remember, the clock must be set before you can
program the timer.
NOTES:
If all the 8 programs have already been set, "PROGRAM FULL"
or "Full" appears on the TV screen or the display panel.
After timer recording is completed, the VCR turns off
automatically.
You can program the timer recording while a regular recording
is in progress; the menu screens will not be recorded.
To timer-record cable or satellite channels, be sure to keep the
cable box or DBS receiver turned on with the correct channel
selected.
Even if a power failure occurs, the VCR keeps your timer
programs. However, the clock time, channel settings, and other
menu settings are lost. As a result, when the power is supplied
again to this VCR after the power failure, this VCR starts the
Plug&Play setting automatically to restore the clock time and
channel setting. If the clock time and channel setting are
restored correctly, each timer program you have made will start
at its start time unless its end time has elapsed.

Changing VCR Plus+ Setting

The VCR Plus+ programing system assigns a VCR Plus+ guide
channel to the TV channels and the cable channels. These guide
channel numbers are also called the VCR Plus+ channel codes.
Most TV listings have a section, usually a chart, indicating the
guide channel numbers assigned to each station.
To ensure that VCR Plus+ timer recording operates correctly, it is
necessary to set the VCR Plus+ "Guide Channel Set" for each
station.
If you have moved to a different area or if a broadcasting station's
channel number has been changed, perform the following steps to
set the correct guide channel number.
A
Access Main Menu screen, then
Initial Set screen
Press MENU on the Remote. Press
move the highlight bar (arrow) to "INITIAL
SET", then press OK or .
e
B
Access Guide Channel Set screen
Press to move the highlight bar
rt
(arrow) to "GUIDE CHANNEL SET", then
press OK or .
e
C
Input guide channel number
Press or the Number keys to select
rt
the VCR Plus+ guide channel number as
shown in the TV listing, then press OK or
.
e
D
Input receiving channel number
Press or the Number keys to select
rt
the number of the channel on which the
guide channel's broadcasts are received,
then press OK or .
e
Repeat steps 3 3 3 3 and 4 4 4 4 for each instance.
E
Return to normal screen
Press MENU on the Remote.
MAIN MENU
FUNCTION SET
TUNER SET
INITIAL SET
to
rt
PRESS ( , ), THEN (OK)
PRESS (MENU) TO END
INITIAL SET
CLOCK SET
LANGUAGE ENGLISH
GUIDE CHANNEL SET
SELECT WITH ( , ) AND (OK)
PRESS (MENU) TO END
GUIDE CHANNEL SET
GUIDE CH : 6
VCR CH : – – –
PRESS NUMBER KEY (0–9)
OR ( , ), THEN (OK)
PRESS (MENU) TO END
GUIDE CHANNEL SET
GUIDE CH : 6
VCR CH : 47
PRESS NUMBER KEY (0–9)
OR ( , ), THEN (OK)
PRESS (MENU) TO END
