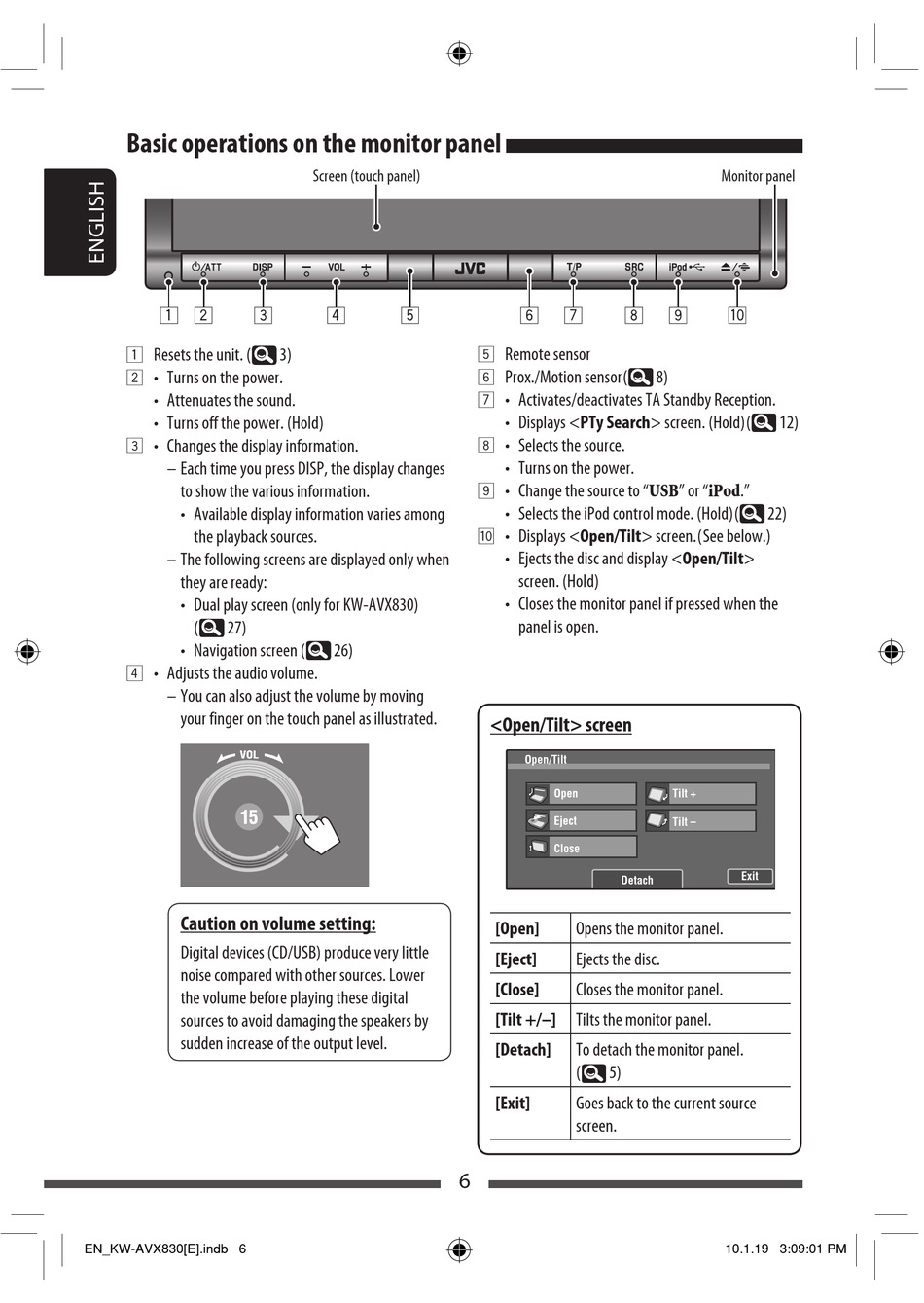

Basic operations on the monitor panel

1
Resets the unit. (
2
• Turns on the power.
• Attenuates the sound.
• Turns off the power. (Hold)
3
• Changes the display information.
– Each time you press DISP, the display changes
to show the various information.
• Available display information varies among
the playback sources.
– The following screens are displayed only when
they are ready:
• Dual play screen (only for KW-AVX830)
( 27)
• Navigation screen (
4
• Adjusts the audio volume.
– You can also adjust the volume by moving
your finger on the touch panel as illustrated.
Caution on volume setting:
Digital devices (CD/USB) produce very little
noise compared with other sources. Lower
the volume before playing these digital
sources to avoid damaging the speakers by
sudden increase of the output level.
EN_KW-AVX830[E].indb 6 EN_KW-AVX830[E].indb 6
Screen (touch panel)
3)
26)
5
Remote sensor
6
Prox./Motion sensor (
7
• Activates/deactivates TA Standby Reception.
• Displays <PTy Search> screen. (Hold) (
8
• Selects the source.
• Turns on the power.
9
• Change the source to "USB" or "iPod."
• Selects the iPod control mode. (Hold) (
p
• Displays <Open/Tilt> screen. ( See below.)
• Ejects the disc and display <Open/Tilt>
screen. (Hold)
• Closes the monitor panel if pressed when the
panel is open.
<Open/Tilt> screen
Open/Tilt
Open
Eject
Close
Detach
[Open] Opens the monitor panel.
[Eject] Ejects the disc.
[Close] Closes the monitor panel.
[Tilt +/–] Tilts the monitor panel.
[Detach] To detach the monitor panel.
( 5)
[Exit] Goes back to the current source
screen.
6
Monitor panel
8)
12)
22)
Tilt +
Tilt –
Exit
