- Page 1 BC9xx0-BT Base Station/Charger Quick Reference Guide...
- Page 2 An Unpublished Work - All rights reserved. No part of the contents of this docu- mentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Data-...
-
Page 3: Table Of Contents
Compliance .................... 20 Power Supply ..................20 FCC Compliance ..................20 Radio Compliance ................. 20 WEEE Compliance ................. 21 Datalogic ADC Limited Factory Warranty ........... 22 Ergonomic Recommendations ..............23 Services and Support ..................24 Products..................24 Service & Support ................. 24... - Page 4 NOTES...

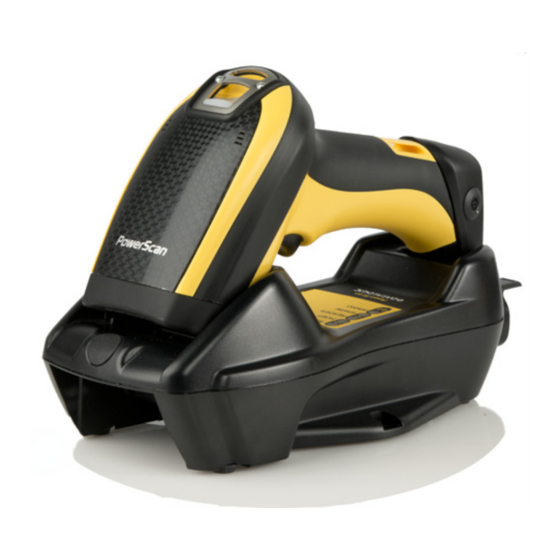

- Page 5 Using the BC9xx0-BT Base Station The BC9xx0-BT base station, when paired with one or more PowerScan™ BT9500 readers, builds a Cordless Reading System for the collection, decoding and transmission of bar code data. It can be connected to a Host PC via RS- 232, USB, or KBD Wedge, and is suited for single-cradle layouts.
-
Page 6: Installation
Installation Installation To set up your BC9xx0-BT cradle you must: Physically install the cradle. Make all system connections. Configure the BC9xx0-BT cradle. Mounting the BC9xx0-BT Cradle The cradle package contains the following items: • BC9xx0-BT Base Station (with Desktop • 1 Metal Mounting plate Mounting Bracket installed) •... -
Page 7: To Change The Bracket
Mounting the BC9xx0-BT Cradle • Desktop mount bracket has ribs to keep the scanner in place when the cradle is horizontal • Wall mount bracket contains bosses to keep the scanner in place when the cradle is vertical. To change the Bracket: Remove the screw holding the Bracket in place. -
Page 8: Permanent Mounting
Mounting the BC9xx0-BT Cradle Permanent Mounting For either desktop or wall mounting, the cradle can be fastened directly to a flat surface using screws (not included). When mounting on drywall, the base should be screwed to a wall stud or supporting beam for additional support. Figure 3. -
Page 9: Attaching The Metal Plate To Base
Mounting the BC9xx0-BT Cradle Figure 4. Mounting Plate on wall Attaching the Metal Plate to Base Alternatively, the mount can be attached first to the base, then both can be mounted to a wall as described above. Figure 5. Attaching Mounting plate to base Quick Reference Guide... -
Page 10: System Connections
Mounting the BC9xx0-BT Cradle System Connections Connections should always be made with power off! CAUTION The BC9xx0-BT cradle provides a multi-interface connector and a power sup- ply connector as shown: Power Supply Multi-Interface Connector Connecting and Disconnecting the Interface Cable The BC9xx0-BT can be connected to a Host by means of a multi-interface cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle. - Page 11 Mounting the BC9xx0-BT Cradle RS-232 USB* *The power supply is optional, the cradle can be powered by the USB port. In this case the full charging of an empty battery will take about 10 hours. For intense usage and/or when the system is shut down during the night, the use of an external power supply is recommended.
-
Page 12: Bc9Xx0-Bt Configuration
BC9xx0-BT Configuration BC9xx0-BT Configuration The BC9xx0-BT configuration can be performed in three ways: by using the ™ Datalogic Aladdin software configuration program, by sending configuration strings from the Host PC via the RS-232 or USB-COM interface or by reading ™... -
Page 13: Selecting The Interface Type
To change the defaults refer to the PowerScan 9500 PRG, or to the Datalogic ™ Aladdin Configuration program, both downloadable from the Datalogic web- site. Selecting the Interface Type Upon completing the physical connection between the reader and its host, scan the appropriate bar code for your system’s correct interface type. - Page 14 (can be used for OPOS/UPOS/JavaPOS) USB-OEM USB Keyboard with standard key encoding Select USB Keyboard USB Keyboard with alternate key encoding USB Alternate Keyboard USB Keyboard for Apple computers USB-KBD-APPLE a. Download the correct USB COM driver from www.datalogic.com BC 9xx0-BT Cradle...
-
Page 15: Keyboard Interface
Selecting the Interface Type Keyboard Interface Use the programming bar codes to select options for USB Keyboard and Wedge Interfaces. KEYBOARD AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/ Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &... -
Page 16: Scancode Tables
Selecting the Interface Type KEYBOARD (continued) Keyboard Wedge for IBM Terminal 3153 Select KBD-IBM-3153 Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx... -
Page 17: Country Mode
Selecting the Interface Type Country Mode This feature specifies the country/language supported by the keyboard. Only these interfaces support ALL Country Modes: • USB Keyboard (without alternate key encoding) • AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding •... - Page 18 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Croatia* Country Mode = Czech Republic* Country Mode = Denmark* Country Mode = France $CKBCO13(CR) Country Mode = French Canadian Country Mode = Germany *Supports only the interfaces listed in the Country Mode feature description BC 9xx0-BT Cradle...
- Page 19 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Hungary* Country Mode = Italy Country Mode = Japanese 106-key* $CKBCO14(CR) Country Mode = Lithuanian Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
- Page 20 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Romania* Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia* Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description BC 9xx0-BT Cradle...
-
Page 21: Caps Lock State
Selecting the Interface Type Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alter- nate key encoding keyboard is selected. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable... -
Page 22: Numlock
Selecting the Interface Type Numlock This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies to alternate key encoding inter- faces. It does not apply to USB keyboard. ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled BC 9xx0-BT Cradle... -
Page 23: Technical Features
Technical Features Technical Features Electrical Features Supply Voltage External Power 10 - 30 VDC Host Power 5 VDC ±10% Power Consumption External Power max. 10 W (charging) * Host Power max. 500 mA (charging) Indicators Ext. Power/Data yellow LED Host Power/Data yellow LED Reader batt. -
Page 24: Regulatory Information
FCC Compliance Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference which may cause undesired operation. -
Page 25: Weee Compliance
Waste Electrical and Electronic Equipment (WEEE) Statement English For information about the disposal of Waste Electrical and Electronic Equip- ment (WEEE), please refer to the website at www.datalogic.com. Italian Per informazioni sullo smaltimento delle apparecchiature elettriche ed elet- troniche consultare il sito Web www.datalogic.com. -
Page 26: Datalogic Adc Limited Factory Warranty
Datalogic service center, with ship- ping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located. -
Page 27: Ergonomic Recommendations
DAMAGES. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of spe- cific written instructions for the return of product to Customer, Datalogic will select the car- rier, but Datalogic shall not thereby assume any liability in connection with the return shipment. -
Page 28: Services And Support
Services and Support Services and Support Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the links indicated for fur- ther information. Products Search through the links to arrive at your product page where you can down-... - Page 29 Services and Support NOTES Quick Reference Guide...
- Page 30 Services and Support NOTES BC 9xx0-BT Cradle...
- Page 31 La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva di Datalogic ADC Srl per: This Declaration of Conformity is issued under the sole responsibility of Datalogic ADC Srl for: Cette déclaration de conformité est établie sous la seule responsabilité de Datalogic Srl pour: Diese Konformitätserklärung wird unter der alleinigen Verantwortung des Datalogic ADC Srl...
- Page 32 ANATEL (Brazil conformity) Modelo PBT9500 Base carregadora BC9030-BT e BC9130-BT...
- Page 33 ©2013 Datalogic, Inc. • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402 Telephone: (1) 541-683-5700...
