JVC KS-FX832R Instructions Manual

Cassette receiver
Hide thumbs Also See for KS-FX832R:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

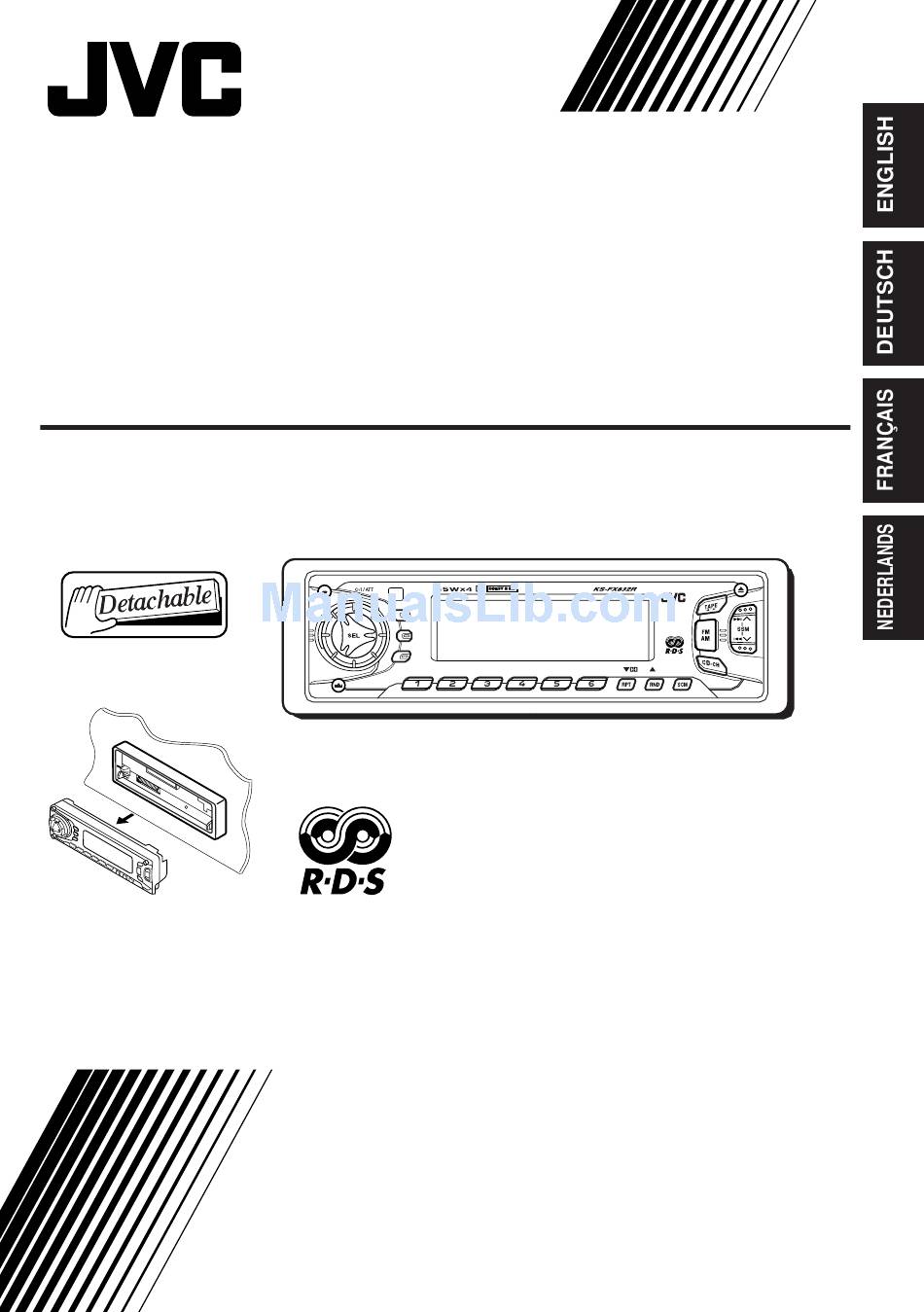

CASSETTE RECEIVER
CASSETTEN-RECEIVER
RADIOCASSETTE
RADIO/CASSETTESPELER
KS-FX832R
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende
handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
DISP
TP
RDS
PTY
7
8
9
10
1 1
DAB
MO
12
GET0083-001A
[E/EX]
