Contents Ⅰ. Introduction of Gimbal Spotlight Ⅱ. Disclaimer and warning Ⅲ. The introduction of GL60 ZOOM Ⅳ. How to use the DJI Pilot Ⅴ. How to use the CZZN Ⅵ. To upgrade the firmware ⅰ. Online firmware upgrade ⅱ. TF card firmware upgrade...
NOTE: 1. The installation method of GL60 ZOOM is the same as that of DJI the PTZ camera. Please confirm whether the installation is correct before taking off. 2. When GL60 ZOOM works before the UAV takes off, its power will be limited below...

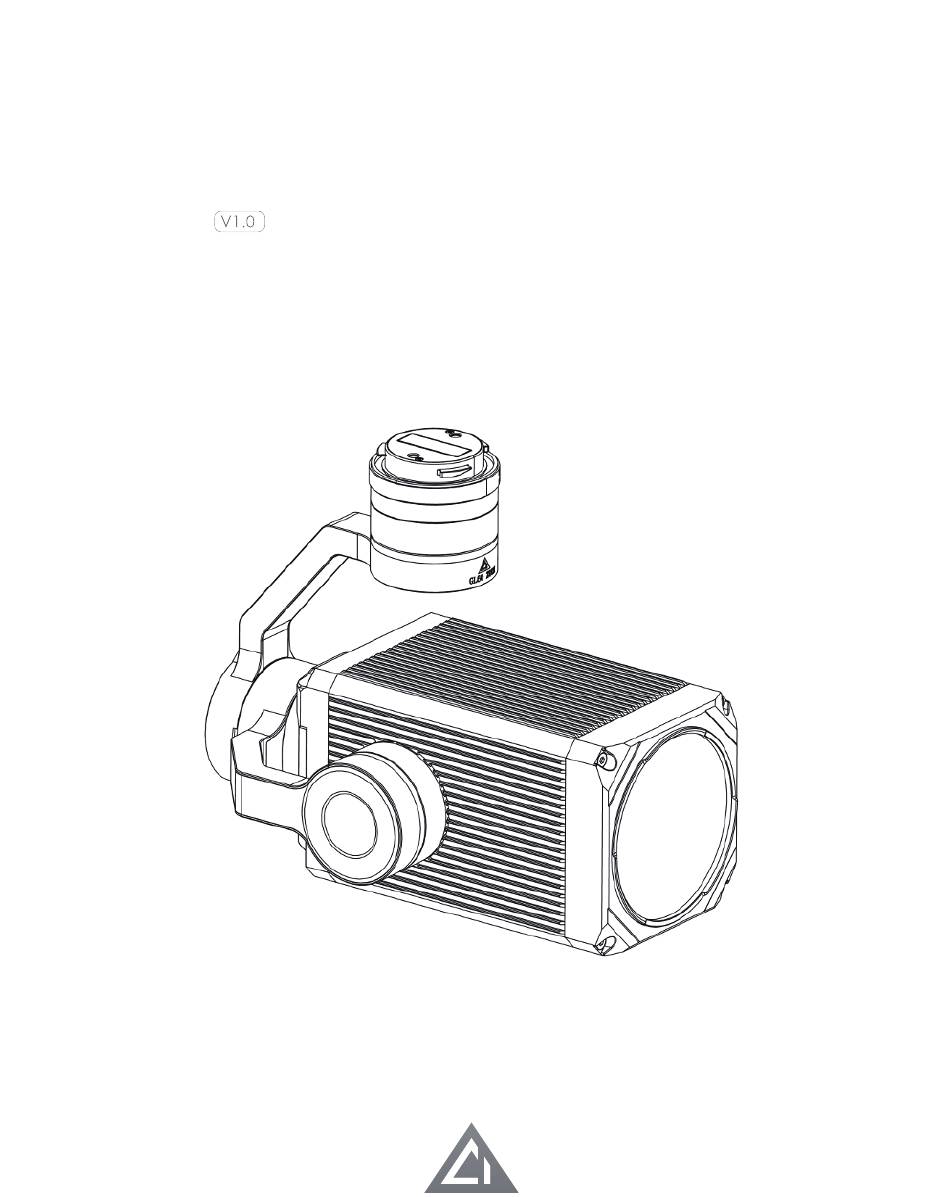

Ⅲ. The introduction of GL60 ZOOM The GL60 Zoom weighs only 740g and has a power rating of up to 65W. It consists of an optical imaging structure of up to multiple lenses that emit light from angles ranging from 7.5° to 33°, with an effective irradiation distance of up to 200 meters. Its brightness uniformity and color uniformity are extremely high, providing unprecedented aerial lighting for unmanned aerial vehicles operating at night.
Page 22
Description of parameters Model GL60 ZOOM Electrical DJI SKYPORT V2.0 Weight /g Size /mm L166*W110*H137 Power /W LED Power Luminous Flux /lm 4000±3% FOV/° 7.5~33 ( ±0.5) 7.2° 125lx Central illumination/Lux 100m 7.2° 28lx Pitch Angle -110°~+30° Controllable Angle Horizontal Angle ±135...
Ⅳ. How to use the DJI Pilot 1. Click DJI Pilot to enter the 2. Enter the main interface and the word GL60 ZOOM is displayed in the lower left corner, indicating that the LOAD identification of GL60 ZOOM is successful. You can...
Page 24
3. Enter the main interface and then click the Multi-Gimbal Connection button, and then select the GimbalⅠand GimbalⅡ, achieve the result of two Gimbalssynchronization. 4. Click the menu bar and click the third-party load option to enter the GL60 ZOOM operation interface.
Page 25
6. Click the switch button to control the on-off state of the light; Click the Twinkle button to turn on the flash mode. Slide the Brightness bar option to adjust the brightness of the GL60 ZOOM. Sliding Zoom bar option, you can adjust the light Angle...
Page 26
7. When H20 and GL60 ZOOM are used simultaneously, the Pitch adjustment button Roll adjustment button and Yaw adjustment button can be used to keep the spot in the center of the screen. Click the save fine adjustment button after a single fine adjustment.
Ⅴ. How to use the CZZN 1. Click CZZN to enter the software interface. 2. Enter the main interface, and the words GL60 ZOOM are displayed at the bottom of the interface, indicating that the load identification of GL60 ZOOM has...
Page 28
4. Click the "Common Settings" button in the menu bar and click the "Gimbal Light" option to open the suspend button of the GL60 zoom. (Tips: Open the suspend button is more convenient for users to use.)
Page 29
5. Click "Yes" to jump to DJI Pilot software. 6. Meaning of a symbol : ” - Turn on the light “ ” -Lights flashing “ “ ” “ ” “ ” “ ” -Fine-tuning Gimbal ” -Save fine tuning data “...
Page 30
NOTE: When connecting GL60 ZOOM for the first time, steps 2~5 are required. In the future, the prompt box for DJI Pilot will pop up directly on the main interface of CZZN.
Ⅵ. To upgrade the firmware ⅰ. Online firmware upgrade 1. Open the CZZN software, click the button in the upper right, and click the Firmware. 2. Find the latest version of firmware and click Upgrade.
Page 32
3. Click Update Now. 4. Wait for the firmware upgrade to succeed.
5. After the firmware upgrade is successful, GL60 ZOOM will enter the recalibrated state. You need to wait a few seconds to complete the upgrade operation. (Reminder: if GL60 ZOOM does not respond, you need to restart the aircraft and wait for the successful calibration.) ⅱ.
Page 35
4. Insert the TF card with the downloaded firmware into the TF card slot of GL60 ZOOM. After the GL60 Zoom is installed on the aircraft, it enters the recalibration state and waits for a few seconds to complete the upgrade operation.
Page 36
To learn about GL60 ZOOM firmware update or to download the latest version of the firmware, please visit the official website of CZI: www.gzczzn.com. In case GL60 ZOOM cannot work normally due to UAV firmware update, please contact the local agent or manufacturer in time.
