USER GUIDE

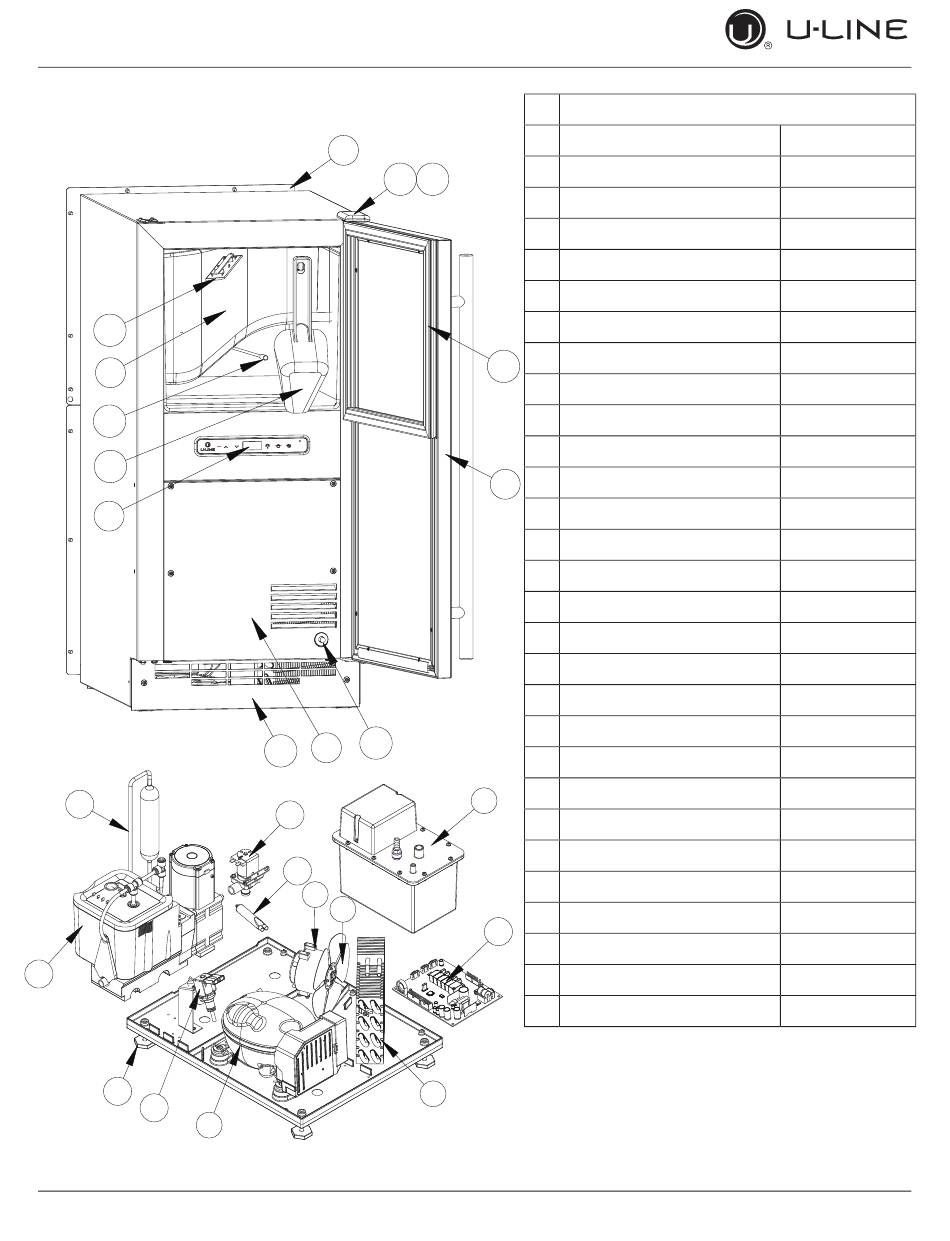

Parts
20
7
26
19
8
16
13
21
28
3
Parts
2
17 18
24
1
15
12
11
6
5
4
UANP115-SS01A
1 ACCESS PANEL
2 BACK PANEL
3 COMPRESSOR
4 CONDENSER ASSEMBLY
5 CONDENSER FAN BLADE
6 CONDENSER FAN MOTOR
7 COVER W/HOOK
8 DISPLAY MODULE
14
9 DOOR ASSEMBLY
10 DRAIN PUMP
11 DRIER
12 DUMP VALVE ASSEMBLY
9
13 EVAPORATOR ASSEMBLY**
14 GASKET, DOOR
15 GRILLE ASSEMBLY
16 HEAT EXCHANGER ASSEMBLY
17 HINGE ASSEMBLY
18 HINGE COVER
19 ICE SCOOP
20 LED LIGHT STRIP AND COVER
21 LEG LEVELERS (4)
22 MAIN BOARD
10
23 NUGGET ICE CLEANER*
24 PLUNGER SWITCH
25 POWER CORD*
26 THERMISTOR
22
27 WATER SUPPLY LINE KIT*
28 WATER VALVE, RESERVOIR/INLET
29 WIRE HARNESS, BOARD*
*Not Pictured
**See next page for parts breakdown
40
u-line.com
80-55393-00
80-55394-00
80-55211-00
80-55379-00
80-54066-00
80-54138-00
80-54332-00
80-55214-00
80-55395-00
80-54147-00
80-54055-00
80-55232-00
80-55371-00
80-55396-00
80-55373-00
80-55434-00
80-55397-00
80-55499-00
80-54080-00
80-54000-00
80-54019-00
80-55398-00
ULANUGGETCLEAN
80-55375-00
80-55399-00
80-54006-00
ULAWATERHOOKUP
80-88448-00
80-55226-00
